Series vs Parallel Solar Panels: Which Wiring Should You Use?
Series vs parallel is the wiring choice that trips everyone up, whether you're hooking up solar panels, batteries, or any DC setup. Get it right and you charge faster with less loss down the cable. Get it wrong and you'll crawl along, or push too much voltage into your gear.
The short answer: Series links things end to end and adds the voltage (the current stays the same). Parallel joins all the positives and all the negatives, and adds the current (the voltage stays the same). Either way the total watts are the same. You choose based on cable length, your charge controller or power station's voltage window, and shade.
We'll talk mostly about solar panels here, since that's what most people are wiring up at camp or on the van, but the same rule decides how you wire batteries in series vs parallel too. It's the same idea as any series vs parallel circuit you might remember from school, it all comes down to what happens to voltage and current. Here's the plain-English version, with diagrams.
What wiring solar panels in series does
Series means you connect the panels in a chain: the positive of one panel goes to the negative of the next. Picture old Christmas lights wired end to end. When you wire solar panels in series, the voltage stacks up while the current stays put.
The series formula is dead simple: add the voltages, keep the current. Two 20-volt, 5-amp panels in series give you 40 volts at 5 amps. Same 200 watts, just delivered as higher voltage and lower current.
What wiring solar panels in parallel does
Parallel is the opposite. You join all the positive leads together and all the negative leads together, so the panels run side by side rather than in a chain. Now the current stacks up while the voltage stays the same.
Same formula in reverse: add the currents, keep the voltage. Those same two 20-volt, 5-amp panels in parallel give you 20 volts at 10 amps. Still 200 watts, just delivered as lower voltage and higher current. That's the whole difference between current in series vs parallel.
Here's how I keep the two straight: there's an A in pArAllel, and it's the Amps that get added together. So series has to be the other one, where the volts add up.
Series vs parallel solar panels at a glance
| Series | Parallel | |
|---|---|---|
| How you wire it | + of one panel to − of the next, in a chain | All + joined together, all − joined together |
| Voltage | Adds up | Stays the same |
| Current (amps) | Stays the same | Adds up |
| Total watts | Same | Same |
| What you need to connect it | A panel-to-panel lead (often the panels' own), plus an extension to reach your gear | A Y-splitter / branch connector to join the leads, plus an extension |
| Best for | Long cable runs, and reaching your charge controller's minimum voltage | Keeping voltage low and safe, and handling patchy shade |
| Watch out for | Combined voltage spiking over your input's max on a cold morning | Higher amps need thicker cable, and fusing once you run a few panels |
What cables and connectors you'll need
This is the bit most guides skip, and it's where people get caught at camp without the right lead. The two wiring methods don't need the same kit.
Series is the simpler wire-up. You just link one panel's positive lead straight into the next panel's negative lead. Most panels' own leads reach each other, so you often don't need anything extra between the panels. What you usually will need is an extension cable to carry that single output back to your battery, charge controller or power station, since the panels sit out in the sun and your gear sits in the shade.

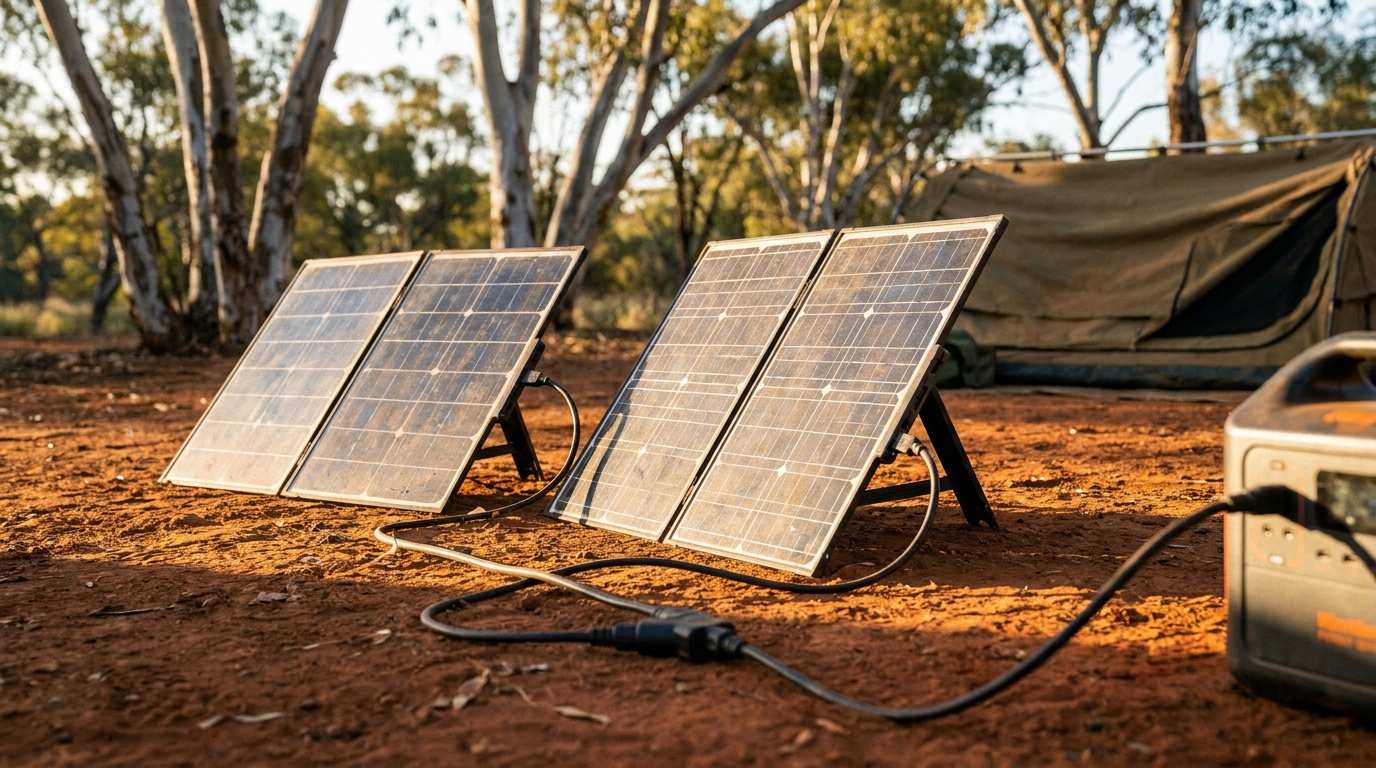

Parallel needs a splitter. To join all the positives into one and all the negatives into one, you use a parallel connector, a Y-branch splitter like the one above (MC4 is the most common type). Two panels need one pair of Y-splitters; run three or four panels and you'll need bigger branch connectors or a combiner. You'll usually want an extension cable on top of that, and once you're past a couple of panels it's worth fusing each one.
Whichever way you go, check your connector type first, MC4, Anderson or XT60, so your splitters and extension leads actually match your panels and your gear. Mismatched plugs are the number one reason a setup won't connect on the day.
When to wire in series
Series shines in two spots. First, long cable runs. Higher voltage loses less power over distance, so if your panels are parked 15 or 20 metres from the van, series keeps more of your solar getting home. Second, reaching a minimum voltage. Some charge controllers and power stations need the input to climb above a certain voltage before they'll start charging at all. One panel on its own might not get there, but two in series will.
The one thing to watch: voltage climbs in the cold. Panels are rated at 25 degrees, and on a frosty, bright morning their voltage can jump 10 percent or more above the sticker. Add a few panels' voltage together in series and it's easy to sail past your gear's maximum input voltage, which is the one thing that can actually damage the input. Always add up the open-circuit voltage (Voc) of your panels and leave a buffer under the max.
When to wire in parallel
Parallel is the go for most portable setups, a couple of folding panels running into a battery or power station at camp. The voltage stays low and well inside the gear's window, and you just need that one Y-splitter to join them.
Parallel also handles shade far better. In a series string, one shaded panel chokes the whole chain, the rest can only push as much current as the weakest one. In parallel, each panel does its own thing, so a bit of shade on one panel only costs you that panel, not the lot. If you're camped under dappled trees, parallel wins.
The trade-off: amps add up, and higher current needs thicker cable to carry it without heating up or losing voltage. Once you're running three or more panels in parallel, fuse each one so a fault in a single panel can't be back-fed by the others.
Does this work the same for batteries?
Yes, batteries follow the exact same rule, which is why so many people search series vs parallel batteries before a build. Wire two 12-volt batteries in series and you get 24 volts at the same amp-hours. Wire the same two in parallel and you stay at 12 volts but double the amp-hours (and the current they can deliver). Voltage adds in series, capacity and current add in parallel, the same diagrams above apply, just swap the panels for batteries.
What this means for your power station or controller
If you're feeding a power station, a solar charge controller or a battery bank, the same logic ties it all together. Every one of them has an input window: a minimum and maximum voltage, and a maximum current. Series and parallel are simply the two levers you've got to land your panels inside that window. If your voltage is too low to start charging, series lifts it. If your voltage is creeping toward the max, parallel keeps it down while still adding power.
Not sure what your unit will actually take, or whether your panels will pair up with it? Our solar panel compatibility guide walks through the plug, the volts and the wiring in a couple of minutes.
A few things that catch people out
Mixing mismatched panels. Whichever way you wire them, joining panels of very different sizes drags the whole setup down to the weakest one, and it's worse in series. Run matched panels where you can.
The cold-morning voltage spike. Worth saying twice, because it's the one that does damage. Cold weather pushes panel voltage up, so never run a series string right on your input's voltage limit. Leave yourself a buffer.
Common questions
Which is better, solar panels in series or parallel?
Neither is better across the board, it depends on your setup. Series wins for long cable runs and for reaching a charge controller's minimum start voltage. Parallel wins for coping with shade and keeping voltage low and safe. For most portable camp setups a parallel pair is the easy choice; for long runs or units with high-voltage inputs, series is the better fit.
What charges faster, series or parallel solar panels?
On paper, neither, the watts are identical either way. In the real world the faster option is whichever one keeps your panels in the charge controller's sweet spot and copes with the shade you've got. Open sun and short cable runs usually favour parallel; long runs or a high minimum voltage favour series.
Can I mix 100W and 200W solar panels?
You can, but you'll lose some output, so it's not ideal. In series the smaller panel's current limits the whole string, so a 100W and a 200W both end up behaving closer to the 100W. In parallel the voltages need to match or the mismatch wastes power. If you have to mix them, put same-voltage panels in parallel or same-current panels in series, and keep the totals inside your input limits. Matched panels always perform best.
What is the 33% rule in solar panels?
It's a rule of thumb that you can safely fit more solar than your charge controller or inverter is rated for, up to about a third more (roughly 133% of its rating). Panels rarely hit their full rated output in real Aussie conditions, so that extra capacity helps you charge faster in cloud, early morning and winter. The controller simply caps its output, so nothing is harmed. Always check your own controller's spec, but a third over is the common guideline.
Is series or parallel better for shade?
Parallel. A shaded panel in a series string drags the whole chain down. In parallel, each panel works independently, so shade on one only costs you that panel, not the lot.
What's the difference in voltage and current between series and parallel?
Series adds the voltage and keeps the current the same. Parallel adds the current and keeps the voltage the same. The total watts (voltage times current) come out identical either way, you're just choosing how that power is delivered.
Can I wire panels in series and parallel at the same time?
Yes, it's called a series-parallel array and it's common on bigger setups, two pairs wired in series, then those pairs joined in parallel, for example. It lets you lift voltage and current together. Just keep the totals inside your gear's input limits.
Do most portable power stations want series or parallel?
It depends on the model's input window, so check the specs. Many smaller units run happily on parallel; bigger units with high-voltage inputs are built for series. Our compatibility guide shows you how to read it.
