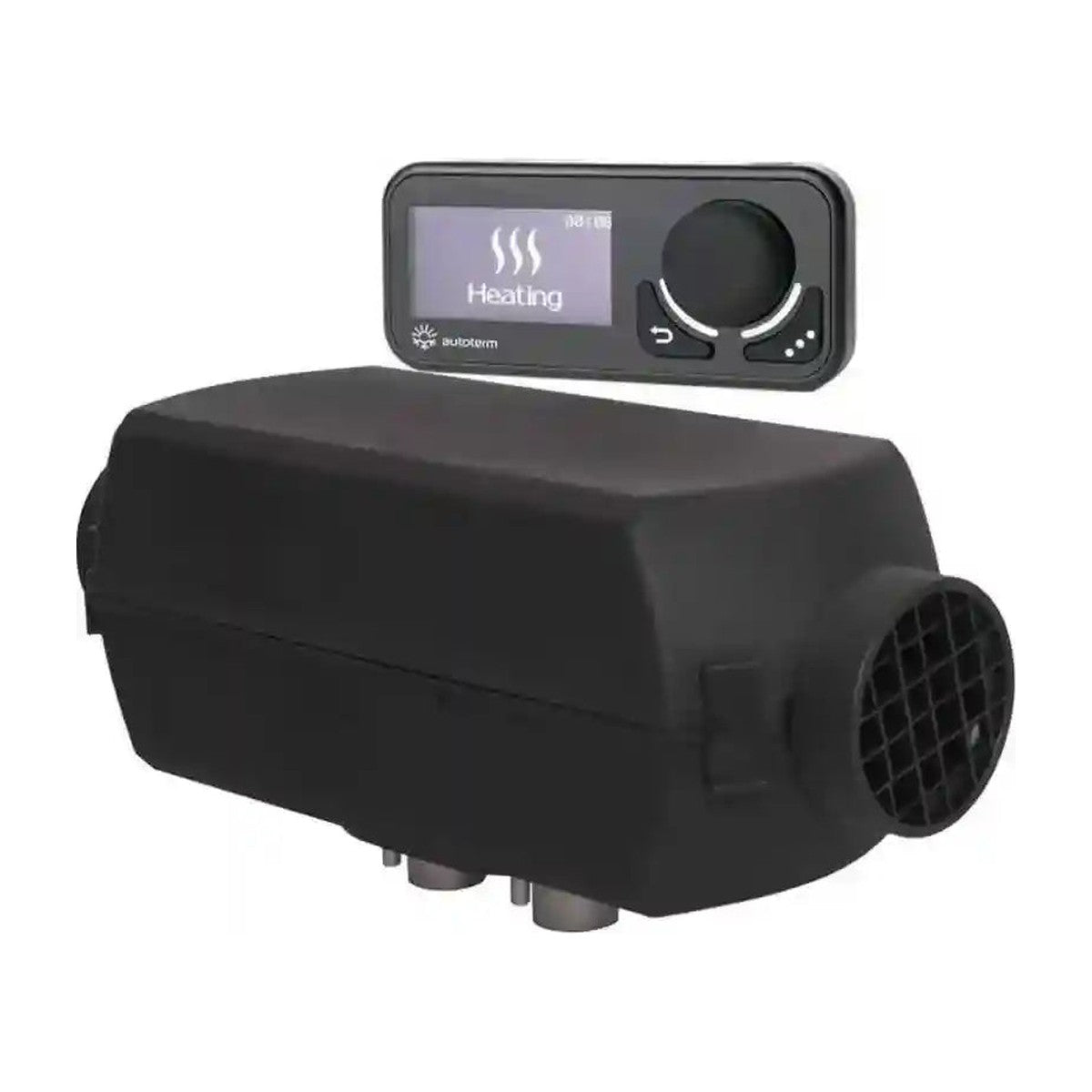

Autoterm 2D Diesel Air Heater 2kW 12V with Comfort Controller
SMALL AUSSIE BUSINESS
Chat direct to the owner
GEAR SPECIALISTS
Let us find your perfect model and size
30 DAY RETURNS
Change your mind? No Dramas.
The Owner's Insights on the Autoterm 2D Diesel Air Heater 2kW 12V
Two kilowatts of dry diesel heat, running off your existing tank and a 12V feed. No gas bottle to fill, no idling the engine all night, and no flat cranking battery in the morning.
The small numbers are the ones that matter to you. On low it draws 10W and burns 0.1 litres an hour. That's the whole night, on your own diesel, without touching your battery in any way you'd notice.
It's the compact one in the Air range, so it tucks under a seat, into a ute canopy, a small camper or a boat up to 10 metres. If you're heating a big motorhome or a shed, the 4D is the one you want.
Why You'll Love the Autoterm 2D Diesel Air Heater 2kW 12V
- 0.8 to 2.0kW of dry heat. Warm and dry, not damp like gas.
- 10W on low. It runs all night off your house battery.
- 0.1 to 0.24 litres an hour. You'll barely see it on the gauge.
- Runs on your own diesel tank. No gas bottles to cart or fill.
- Starts down to -45 degrees. It will never be too cold here.
- Comfort Controller included. Set your temperature and forget it.
- Brushless motor, 12,000 hours. Nothing to wear out in a hurry.
- 3-year warranty. Backed for the long haul.
Why You Should Consider an Autoterm Diesel Air Heater
Autoterm build diesel air heaters for trucks, motorhomes and boats, and the 2D is the smaller of the two units most Australians fit. It carries a 3-year warranty. See the rest of the diesel heater range.
Autoterm 2D Diesel Air Heater 2kW 12V Specifications
| Model | Autoterm Air 2D, 12V |
| Heat output | 0.8 to 2.0 kW |
| Hot air flow | 34 to 86 m³/h |
| Fuel | Diesel (EN590) or renewable HVO100 |
| Fuel consumption | 0.1 to 0.24 L/h |
| Power consumption | 10W on low, 29W on high |
| Voltage | 12V DC |
| Minimum operating temperature | Down to -45°C |
| Controller | Comfort Controller (PU-CC), included |
| Motor | Brushless induction, rated 12,000 hours |
| Heater weight | Approx. 4.2kg |
| Best suited to | Small campers, canopies, off-road vehicles, boats up to 10m |
| Warranty | 3 years |
Ten watts is why it can run all night
This is the number to look at before anything else. On low the 2D draws 10W, which is under an amp at 12V. Leave it running from dark to dawn and you have used less than 10Ah out of your house battery. Compare that to a 12V fan heater, which pulls 20 or 30 amps and flattens a battery inside two hours. The heat comes from diesel; the electricity only runs the fan and the pump. That split is the whole reason diesel heaters took over.
Dry heat, and what it does to your condensation
A diesel air heater burns fuel in a sealed chamber and vents the exhaust outside, so the air it blows into your van has no moisture in it. Gas heaters that vent inside put water into the air with every hour they run, which is how you end up wiping windows every morning and finding mould behind the cupboards. Running the 2D on low overnight dries your camper out while it warms it. On a wet week away, that's worth more than the warmth.
2D or 4D: which one is yours?
Go by the space, not by how cold you feel. The 2D moves up to 86 cubic metres of air an hour and suits a camper, a troopy, a ute canopy, an off-road van or a boat up to 10 metres. The 4D doubles that and suits a big motorhome, a shed or a boat up to 15 metres. Fitting a 4D to a small camper isn't a bonus: it will cycle on and off, use more fuel and cook you out. Ring the store on 03 7056 6732 and we'll size it against your space.
What -45 degrees really tells you
Nowhere in Australia gets to minus 45. What that rating tells you is how much margin Autoterm built in, because a heater that reliably lights at -45 will start every single time on a frosty morning in the High Country or out at Ivanhoe. The other half of it is the fuel: below about zero you want winter-grade diesel, or the diesel itself waxes before the heater has a problem. That's a fuel issue, not a heater issue.
Everything to fit it is in the box
You get the heater, the Comfort Controller, the metering pump, 5.5m of fuel pipe with a collector, the air supply pipe with an 80cm silencer, the exhaust silencer, a metre of exhaust pipe with insulation, the wiring and the full mounting set. Nothing else is needed. The install itself means drilling the floor, mounting the exhaust clear of anything that melts and tapping into your fuel tank, so unless you're confident with all three, budget for a fitter.
What's Included

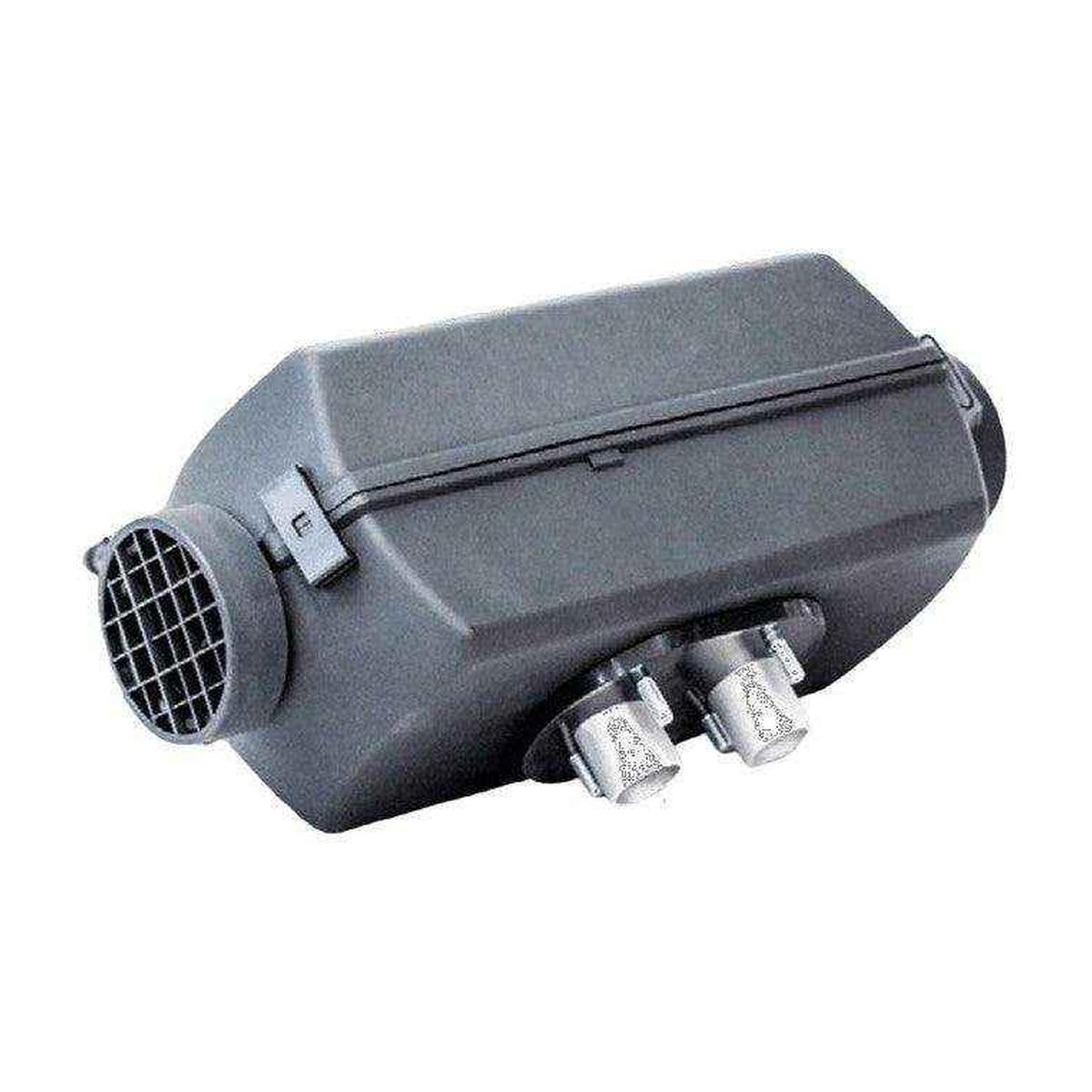

- Autoterm 2D heater unit

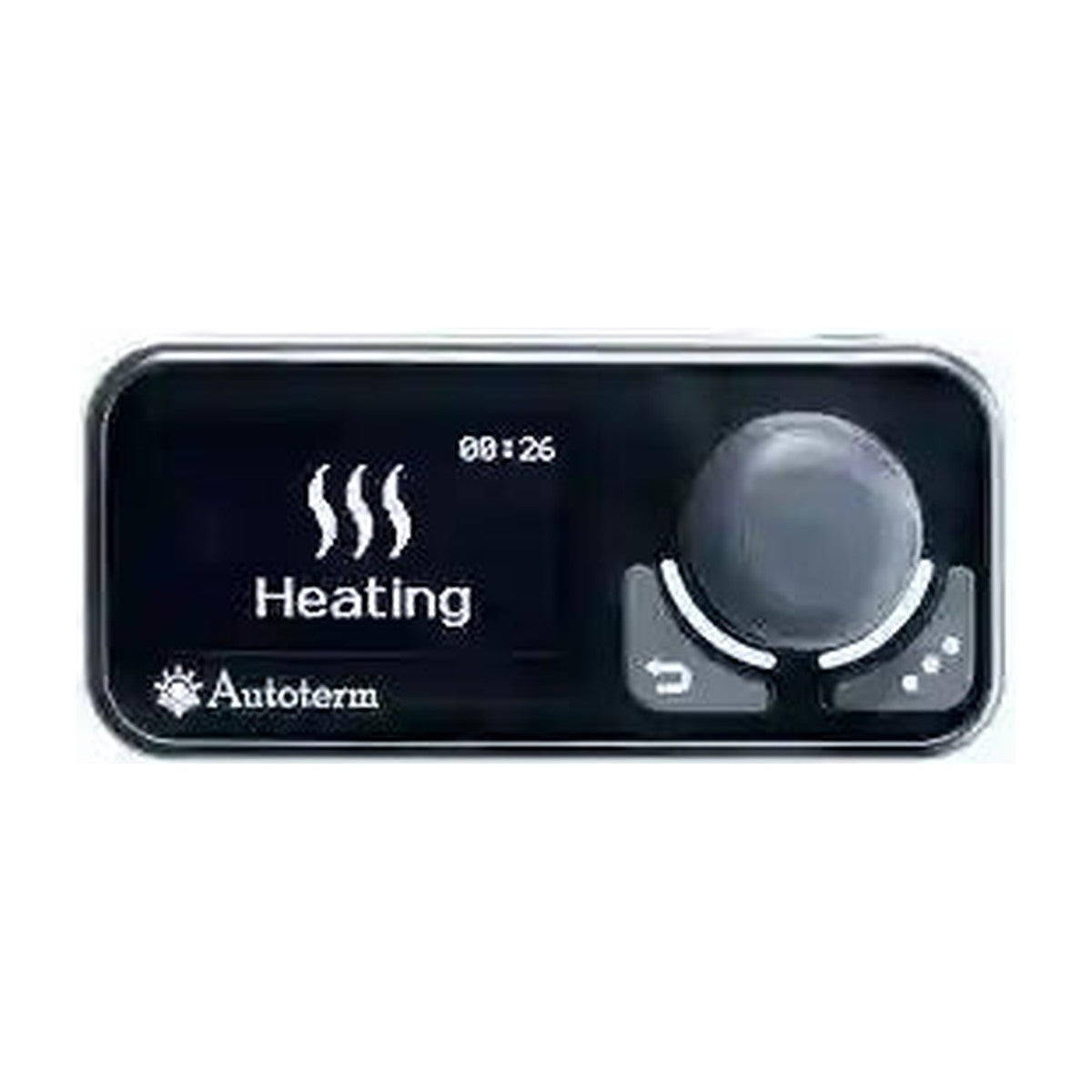

- Comfort Controller (PU-CC)
- Metering fuel pump
- Fuel pipe, 5.5m, with fuel collector
- Air supply pipe with 80cm silencer
- Exhaust silencer
- Exhaust pipe, 1m, with 30cm insulation
- Cables and wiring
- Mounting rings, bolts and clamps
- Full assembly set
What's Not Included
- Installation
- Extra ducting and outlets beyond the one supplied
- The optional GSM modem for phone or SMS start
- Diesel
The full one-outlet install kit is in the box, so nothing else is needed to fit it. Add the optional modem if you want to start it from your phone before you get back to camp. Ring the store on 03 7056 6732 if you want a hand working out ducting for your layout.
Not Sure Which Diesel Air Heater Suits You?
The Autoterm 2D suits you if you're heating a camper, a troopy, a ute canopy, an off-road van or a boat up to 10 metres, and you want heat that runs all night on your own diesel without flattening your battery. It's the wrong pick if you're heating a big motorhome, a shed or a bigger boat, where the Autoterm 4D is the right size. It carries a 3-year warranty. Call the store on 03 7056 6732, or send an SMS to 0476 330 590 and we'll size it against your space.
Autoterm 2D Installation and Operating Manual
Download the Autoterm 2D Diesel Air Heater 2kW 12V user manual for full technical details and setup instructions.
