The Owner's Insights on the Bluetti RV5 RV Power System

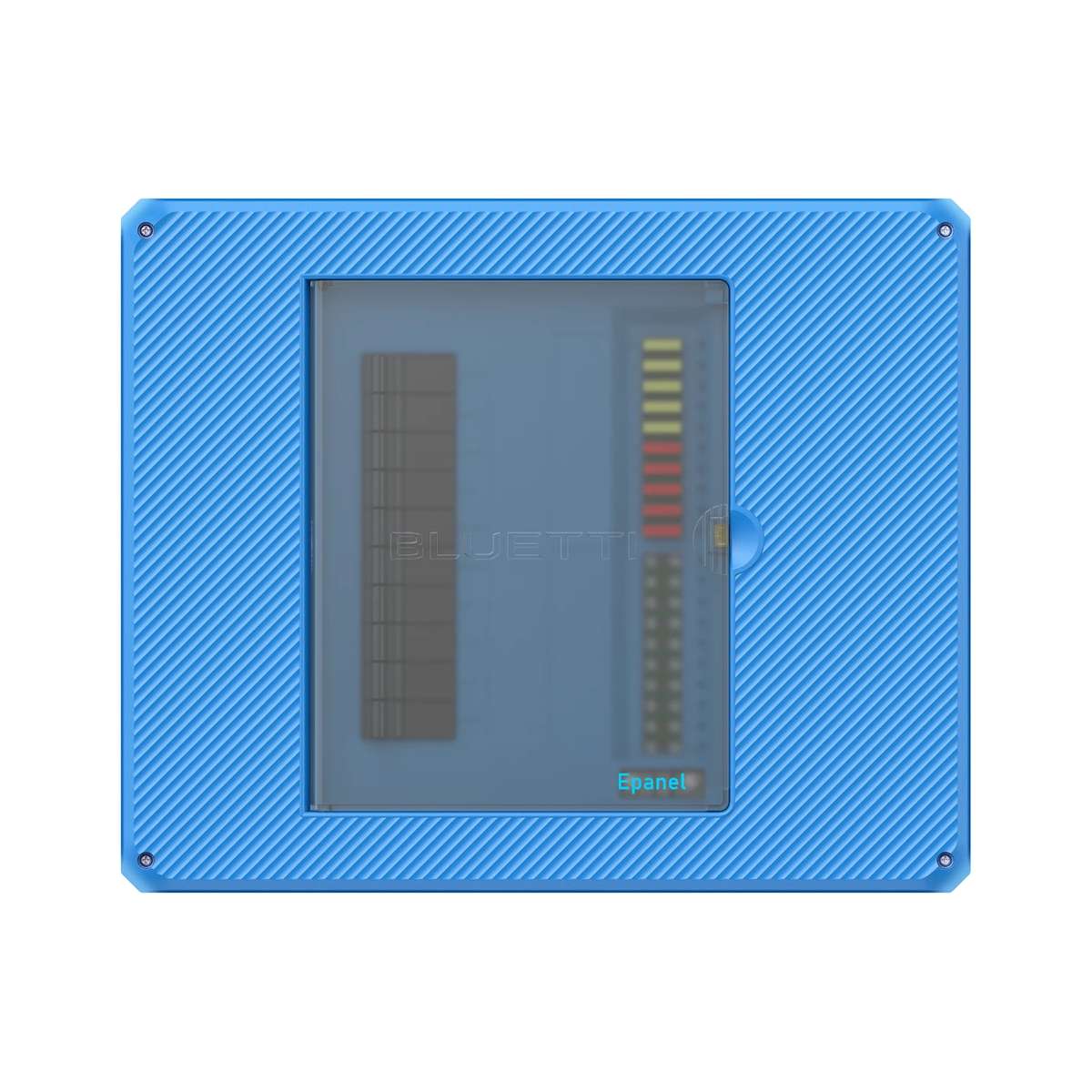

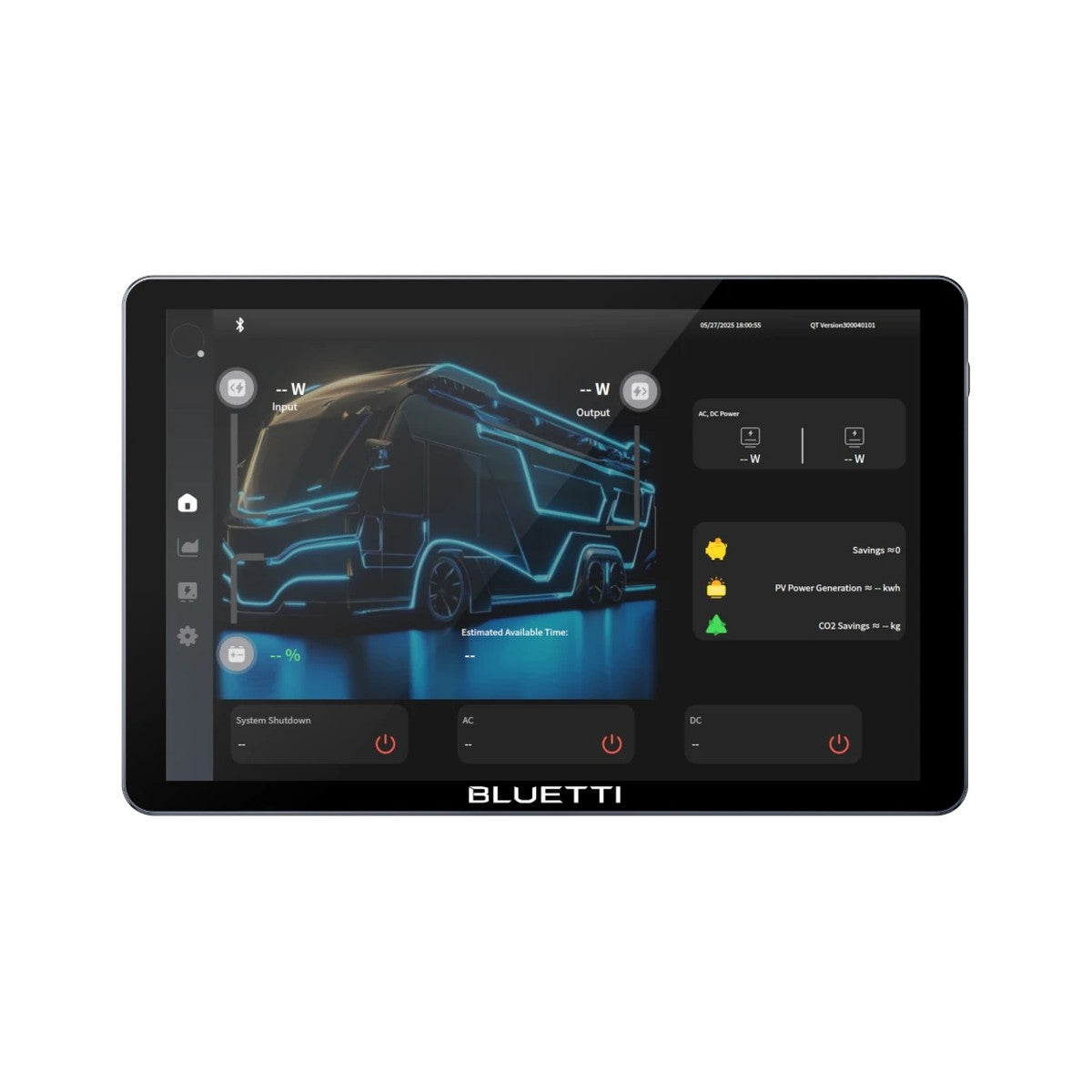

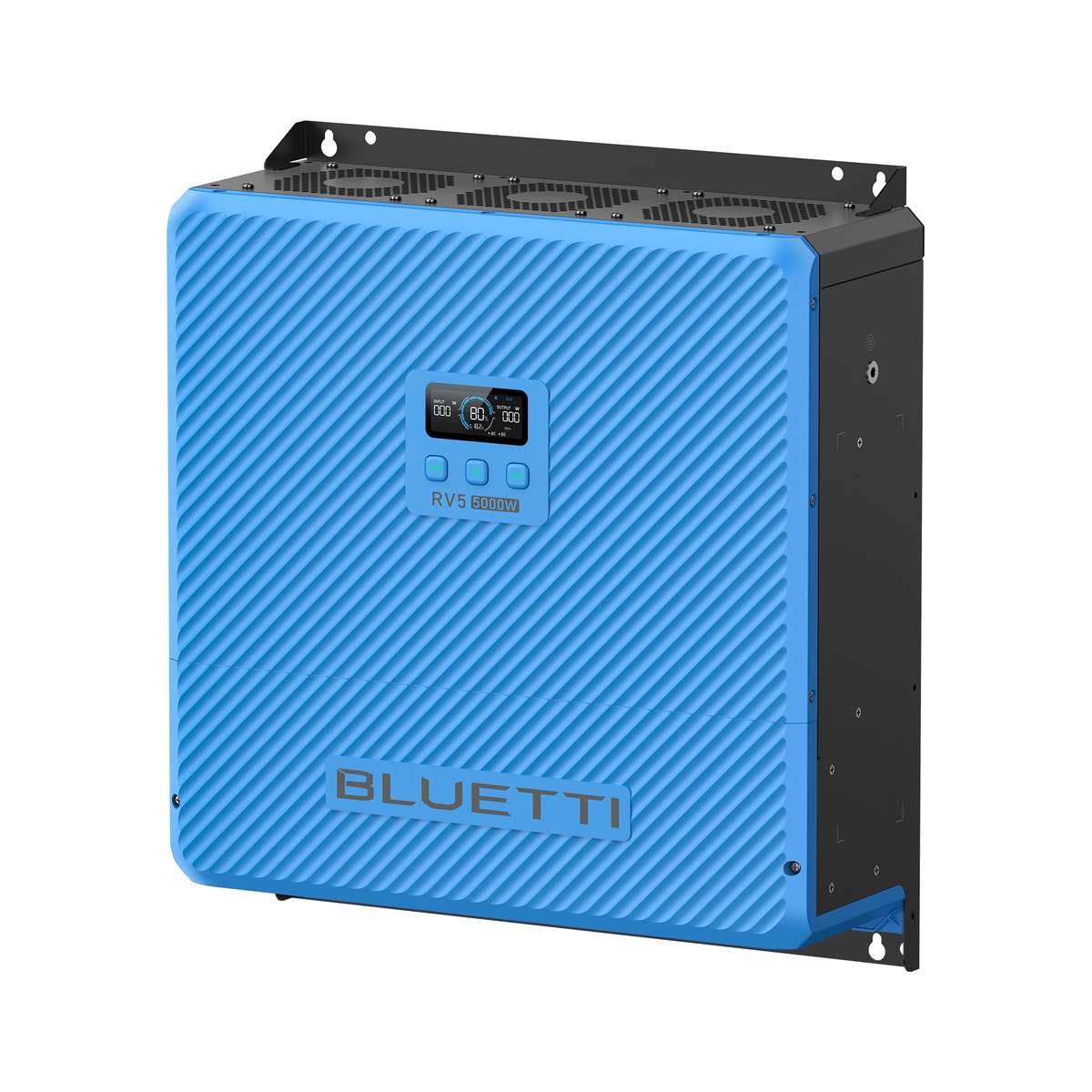

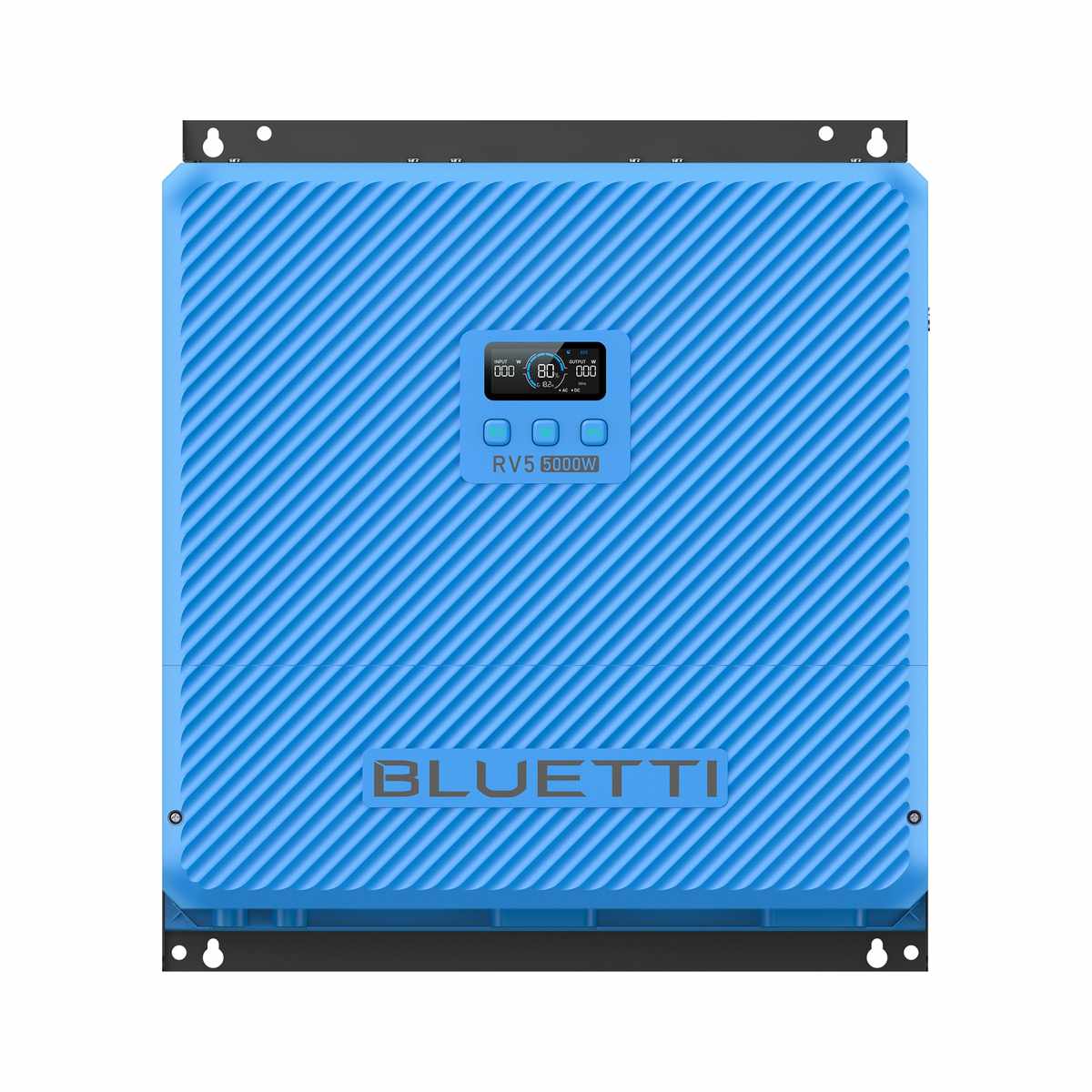

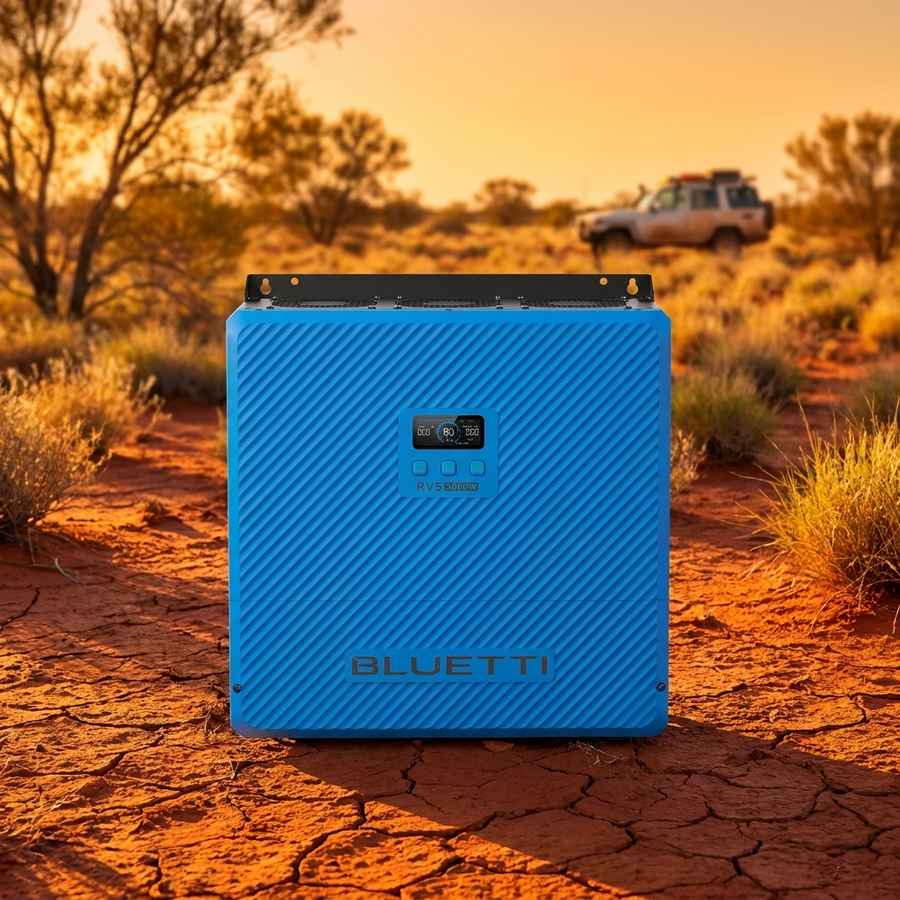

The RV5 is Bluetti's complete van power system: a 5,000W hub, LiFePO4 battery, the Epanel distribution board and the Epad touchscreen. We sell it eight ways, from the hub and one battery on its own through to a twin-battery, triple-panel setup, plus the hub and the Epad sold separately for anyone building around gear they already own. Pick your configuration above and the price updates.
Five thousand watts of continuous output is what separates this from a normal van inverter. Most stop around 2,000W, which rules out a kettle and a microwave together. Here you can run both and still have headroom.
It takes up to 1,800W of solar, 5,000W of shore power and up to 1,200W off your alternator, so however you already charge, it plugs into that rather than replacing it.
Why You'll Love the Bluetti RV5 RV Power System
- 5,120Wh per battery. Your fridge, lights and pump for three days off-grid, doubled if you add a second B4810.
- 5,000W continuous. Kettle and microwave together, with headroom left over.
- 1,800W of solar input. Room for the panels you already own, or add up to three 200W panels through us.
- 6,000 cycles at 70%. LiFePO4 that outlasts the van you put it in.
- Self-heating cells. They still charge below freezing in the high country.
- Under 20ms UPS switchover. Shore power drops and nothing in the van notices.
- Expandable to 122.88kWh. Add batteries later, up to 24 of them.
- 5-year warranty. IP65 sealed, UL certified, with a proper BMS.
Why You Should Consider a Bluetti RV Power System
Bluetti build the RV5 as a complete van power system rather than a portable station: hub, battery, distribution panel and touchscreen. It carries a 5-year warranty. See the rest of the RV power system range.
Bluetti RV5 RV Power System Specifications
| AC rated output | 5,000W |
| AC output voltage | 230V |
| Battery capacity | 5,120Wh per B4810 (51.2V, 100Ah); 10,240Wh with two |
| Battery type | LiFePO4 (lithium iron phosphate) |
| Life cycles | 6,000 cycles at 70% capacity |
| Shore power charging | 5,000W max |
| Solar input | 1,800W max, 12-50V, 50A |
| Alternator input | 600W (12V) / 1,200W (24V) |
| DC output | 12V/24V, 100A (12V) / 60A (24V) |
| DC output power | 1,360W (12V) / 1,620W (24V) |
| Total DC load power | 6,000W max |
| UPS switchover time | Under 20ms |
| Standby power | 7W |
| RV5 hub weight | 14kg |
| RV5 hub dimensions | 450 x 500 x 159.9mm |
| B4810 battery weight | 46kg each |
| B4810 dimensions | 608 x 380 x 145mm |
| Battery IP rating | IP65 |
| Operating temperature | -20°C to 55°C |
| Max battery expansion | 122.88kWh (24 x B4810) |
| Certification | UL458 (RV5), UL / CE / RoHS / UN38.3 (B4810) |
| Warranty | 5 years |
How you charge it
You have three ways in and you can use all of them. Solar takes up to 1,800W at 12 to 50V, which is a serious array; the panel configurations above cover part of that, or bring your own if you already have panels. Shore power charges at up to 5,000W, so a night on a powered site fills it. And the alternator input gives you 600W on a 12V system or 1,200W on 24V, which quietly tops the battery up while you drive.
What 5,120Wh gets you off-grid
Take a normal van: a compressor fridge at around 60W average, LED lights, a water pump, phones and a laptop. That's roughly 1,500Wh a day. One B4810 is three days of that with no charge going in at all; two takes you close to a week. Run an air conditioner and the maths changes fast, because a 13,500 BTU unit pulls well over 1,000W while the compressor runs.
Why 5,000W changes what you can run
Most van inverters top out around 2,000W, which rules out a kettle, a microwave or an induction cooktop running properly. At 5,000W a 2,200W kettle and a 1,500W microwave together still leave you a quarter of the capacity spare. That's the difference between a van where you plan around the power and one where you just use appliances the way you would at home.
Why the self-heating cells matter here

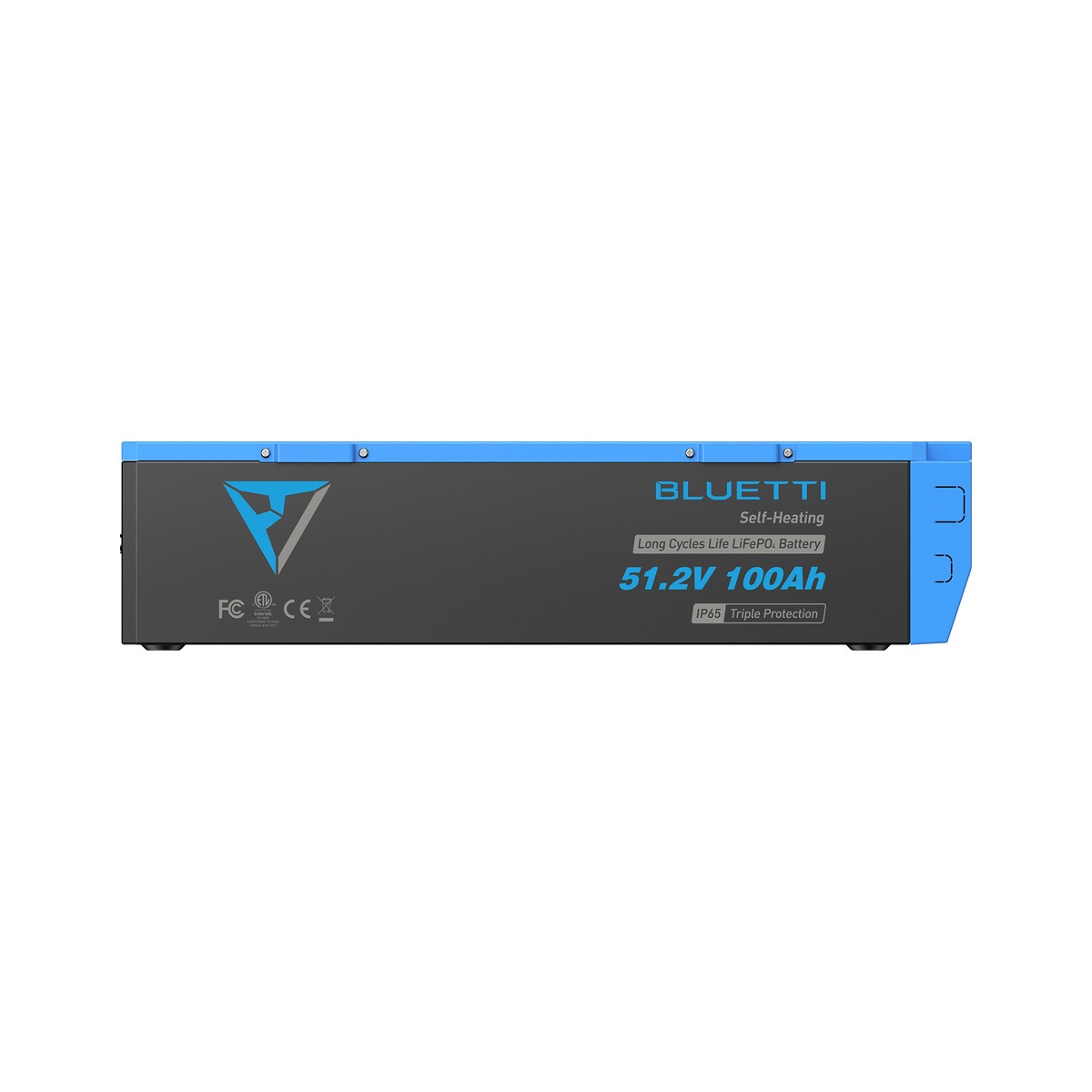

LiFePO4 will not accept a charge below freezing without damage, which is why plenty of lithium setups quietly stop charging on an alpine morning. The B4810 has a self-heating film that holds the cells near 25 degrees when it drops below zero, so it keeps charging. If you travel the high country in winter, that's not a nice extra, it's the difference between a working system and a dead one.
Which RV5 configuration suits you
The hub and one battery on their own suit you if you already have panels, or you're getting them fitted separately. Add the Epanel and Epad and you've got the full monitoring and distribution setup most vans want. Add a 200W panel (or two, or three) if you'd rather it arrive ready to charge from day one. Two batteries doubles your storage to 10,240Wh for week-long free camping or running air conditioning, at 46kg more and a second battery bay. The hub on its own suits a rebuild where you're keeping an existing battery bank; the Epad on its own is a spare or replacement touchscreen. Call the store on 03 7056 6732 and we'll match a configuration to how you travel.

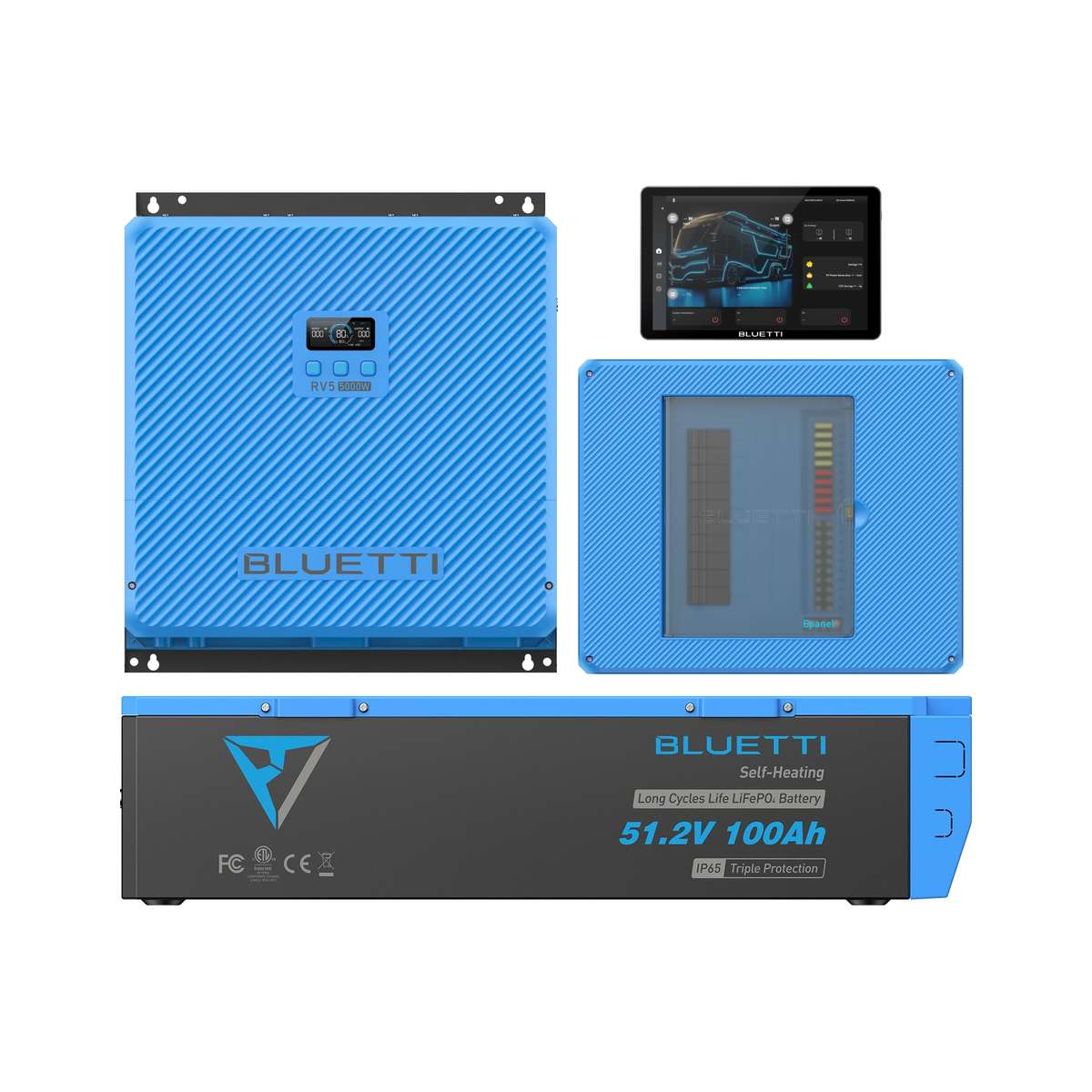

What's Included
- Contents match the configuration you select above
- Full system: Bluetti RV5 hub, B4810 battery(s), Epanel, Epad and solar panel(s) where selected
- Battery mounting brackets and bolts
- Ethernet communication cables
- Terminal covers and drilling template
- User manuals and warranty card
- 5-year warranty
What's Not Included
- Professional installation
- Solar panels, unless your selected configuration includes them
- Cabling between the system and your van's existing circuits
What ships in the box depends on which configuration you choose above. The install isn't included on any of them, and this is a licensed job: get an auto electrician or a caravan fitter who works with 48V systems.
Not Sure Which RV Power System Suits You?
Eight configurations sit above so you can build the RV5 around what you already own rather than paying for gear you don't need. It's easy to overspend on solar you won't use, or underspend on battery you'll wish you had for a week off-grid. It carries a 5-year Bluetti warranty. Call the store on 03 7056 6732, or send an SMS to 0476 330 590, and we'll match it to how you travel.
Bluetti RV5 User Manual
Download the Bluetti RV5 RV Power System user manual for full technical details and setup instructions.
