The Owner's Insights on the RUC8508X
I've had a fair few of these through the shop. The RUC8508X is the big one in the range. It's where people land after they've had enough of a three-way fridge.
It's a compressor fridge. That means it doesn't care whether your van is dead level. Park on a slope, cook your dinner, and it keeps running.
The door is the other thing you notice. It's double-hinged, so you open it from either side without pulling the hinge apart. That matters when your van layout puts the fridge in an awkward corner.
At 550mm wide and 1661mm tall it drops into a standard upright cabinet. You get 216 litres, split 170 in the fridge and 46 in the freezer.
Who's it for? Anyone touring hot country who wants a proper full-size fridge in the van. If your van is small, the 146L RUC5308X will do you and save you a fair bit.
Why You'll Love the RUC8508X
- Runs on 12V, 24V and 240V. Plug into mains at a caravan park and it switches over on its own, no switch to flick.
- Double-hinged door. It opens from either side without changing the hinge, so your van layout stops being a problem.
- T climate class. Dometic rate it for ambient temperatures from 16 to 43 degrees, so it keeps working when the van is baking.
- Separate freezer with its own door. Grab ice without dumping the cold out of the whole cabinet.
- Colour TFT control panel. Set your temperature and read it at a glance, no guessing at dial numbers.
- Battery cut-out built in. It stops itself at 10.4V so it can't flatten your house battery and leave you stranded.
Why You Should Consider a Dometic Compressor Fridge
Dometic started out building RV refrigerators, and they still build more of them than anyone. The RUC series is their AU and NZ upright line, sold through caravan dealers here for years. Parts and authorised service agents are easy to find in Australia, which counts for a lot on a fridge you cut into a wall. Have a look at the rest of the Dometic range.
RUC8508X Specifications
| Fridge type | Compressor refrigerator, dual zone |
| Total capacity | 216L |
| Refrigerator compartment | 170L |
| Freezer compartment | 46L |
| Doors | Two, separate fridge and freezer |
| External size (W x H x D) | 550 x 1661 x 667mm |
| Cabinet size without flange (W x H) | 525 x 1648mm |
| Depth from flange rear face | 611mm |
| Net weight | 51kg |
| Packed size (W x H x D) | 622 x 1765 x 762mm |
| Packed weight | 56kg |
| Connection voltage (DC) | 12V / 24V |
| Connection voltage (AC) | 100-240V, 50/60Hz |
| Power consumption | 88W |
| Rated current | 7.3A at 12V, 3.65A at 24V, 0.4A at 240V |
| Power switching | Automatic DC to AC when mains is connected |
| Battery protection (12V) | Cut-out 10.4V, cut-in 11.7V |
| Battery protection (24V) | Cut-out 22.8V, cut-in 24.2V |
| Fridge temperature range | 0 to 8 degrees |
| Freezer temperature range | -17 to -10 degrees |
| Climate class | T (16 to 43 degrees ambient) |
| Refrigerant | R600a, 31g |
| Insulation | Polyurethane |
| Cooling circuit | Hermetically sealed |
| Noise emission | Under 45 dB(A) |

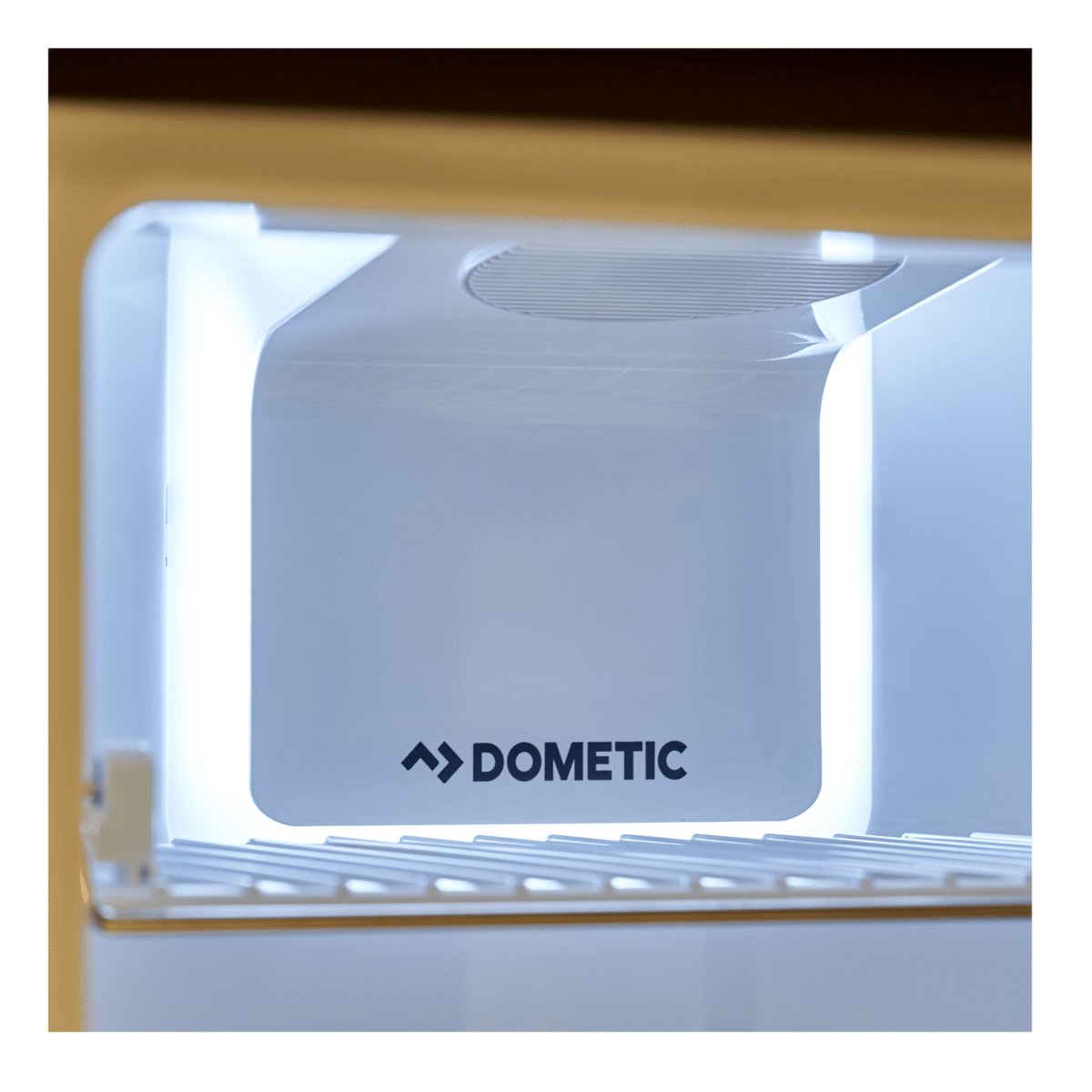

| Interior light | LED |
| Door | Double-hinged, opens left and right |
| Maximum load per door | 10.5kg |
| Control | Colour TFT display, UES thermostat |
| Drain plug | Yes |
| Handle colour | Silver or black |
| Warranty | 3 years against manufacturing defects |
| Model | RUC8508X |
| Item number | 9620017230 (silver) / 9630000209 (black) |
| Barcode (EAN-13) | 6975399594789 (silver) / 7333497004927 (black) |
Compressor or three-way: what the RUC8508X gives you
A three-way fridge cools by heating ammonia. That process wants your van sitting level and the outside air cool. A compressor fridge works like the one in your kitchen. Dometic rate their compressor models for stable cooling and freezing even when the unit is tilted, and this one carries a T climate class for ambient temperatures from 16 to 43 degrees. That's the trade. You give up gas as a power source and you take on a bit of hum. In return the fridge holds temperature when it's 40 degrees outside and the van is parked on a slope.
What the RUC8508X draws from your 12V system
Dometic rate it at 88W, drawing 7.3A at 12V or 3.65A at 24V while the compressor runs. It doesn't run flat out all day, so your real daily figure depends on how hot it is and how often you open the door. Sensibly, it protects itself: the fridge cuts out at 10.4V and won't restart until the battery comes back to 11.7V. That stops it flattening your house battery, but it also means an undersized battery bank leaves you with warm food. Ring us with your battery and solar and we'll be straight with you.
Fitting the RUC8508X into your van
This is an installed appliance. It gets cut into a cabinet, wired into your 12V system and secured so it doesn't move on corrugations. At 51kg it isn't a one-person lift. Dometic's installation and operating manual sets out the cabinet, clearance and fixing requirements, and that manual is what your installer works from. The cabinet needs 525 x 1648mm clear without the flange. We won't state wiring or fuse sizes here, because that's your installer's call against the manual and your van's system.

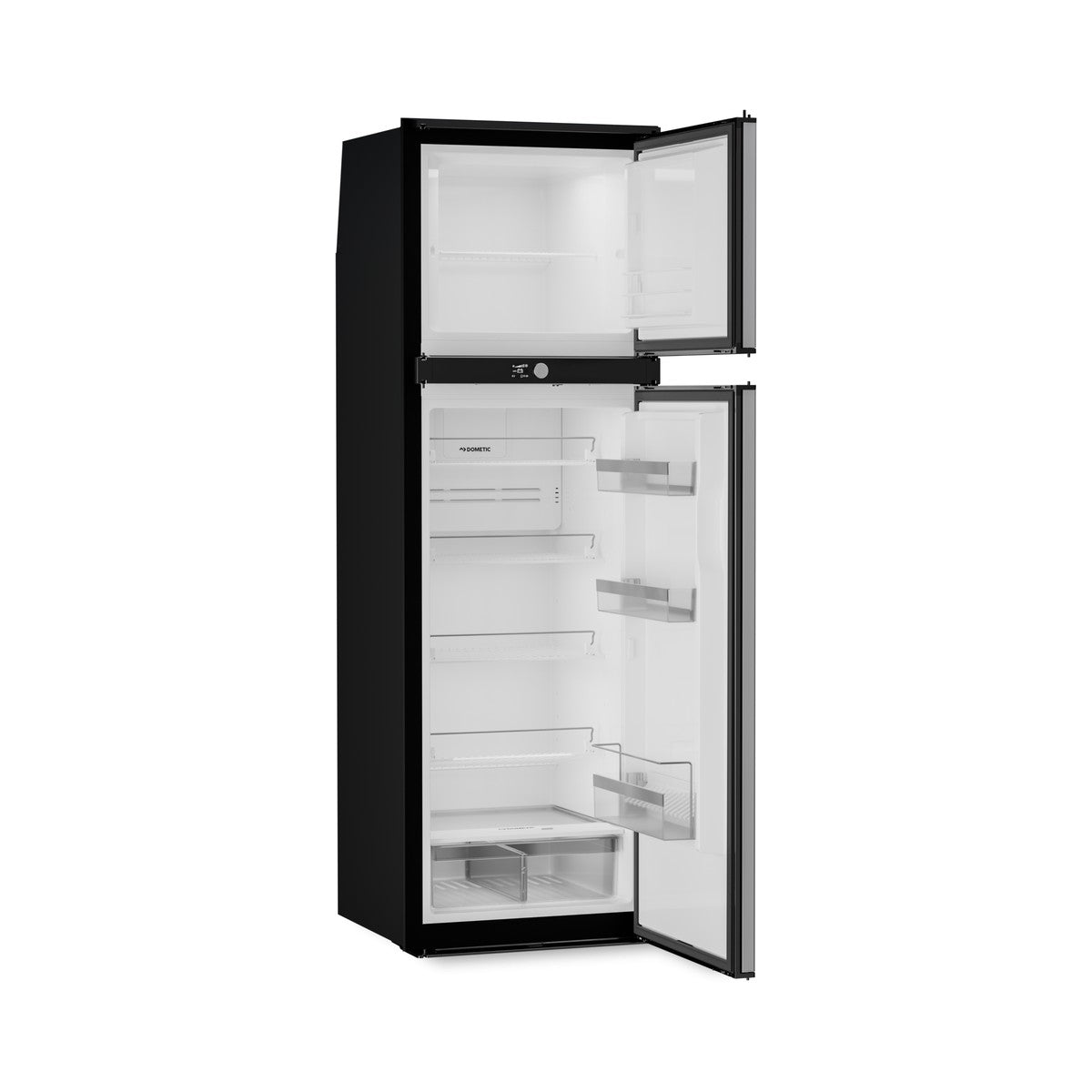

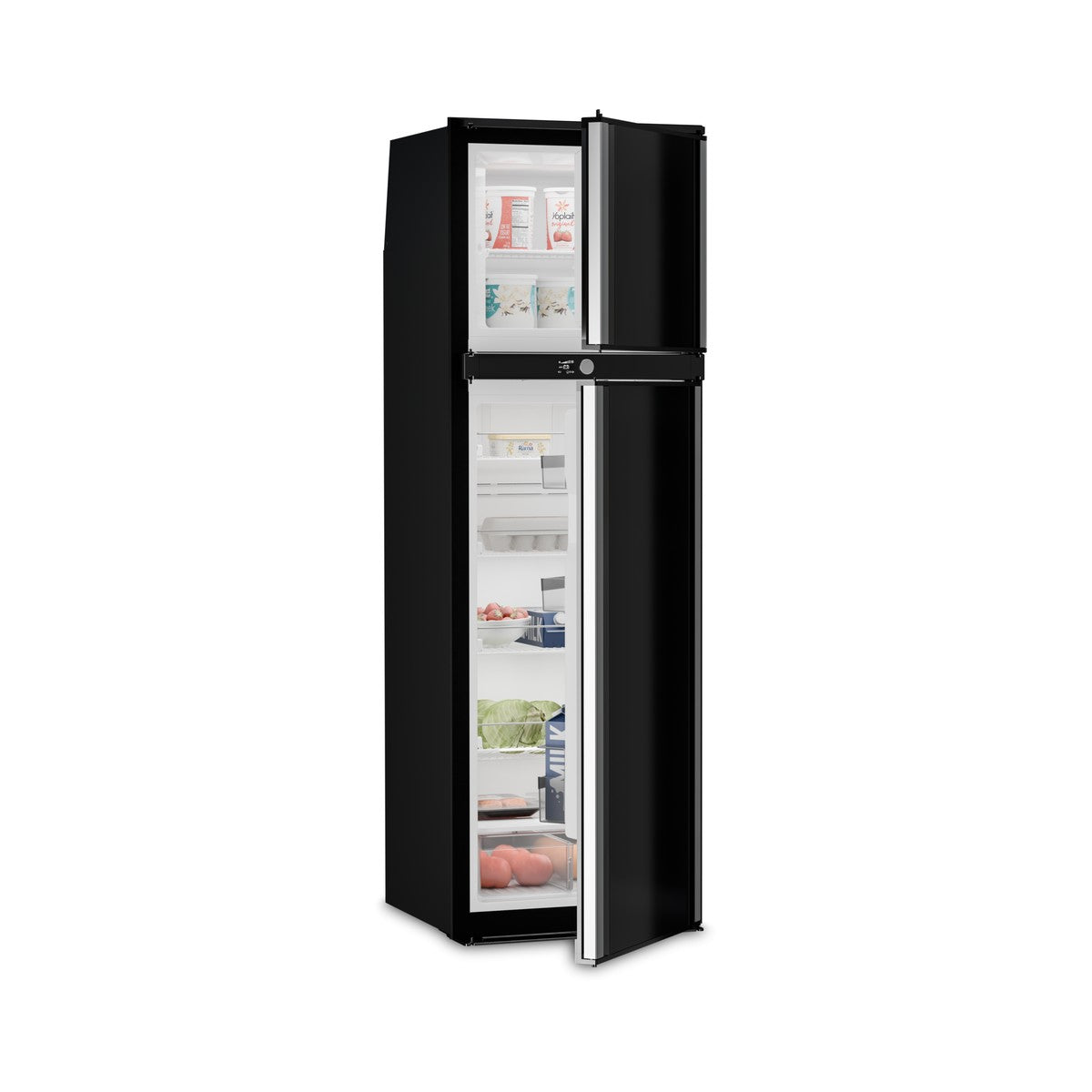

Silver handles or black handles
Same fridge, same guts, same 216 litres. The only difference is the handle finish. Silver suits older van interiors with alloy trim. Black disappears into a dark modern kitchen. Pick whichever matches what's already in your van, because you'll be looking at it for a decade.
What's Included
- Dometic RUC8508X refrigerator
- Installation and operating manual
What's Not Included
- Installation and cabinetry
- 12V wiring, fusing and cabling
- Ventilation grille or roof vent kit
- Decor door panel
- Delivery to a fitter
Dometic supply this one as the unit and the manual. Ventilation grilles, roof vent kits and internal vent kits are separate Dometic accessories. Talk to your caravan repairer before you order so the cabinet opening is confirmed.
Not Sure Which Upright Fridge Suits Your Van?
The RUC8508X is the largest upright in the RUC range. If your cabinet is shorter, the 180L RUC6508X and 146L RUC5308X use the same 550mm width and the same controls, and you can see them all in our RV fridges. The honest catch on any compressor fridge is noise. It hums when the compressor cycles, where a three-way fridge is silent. If your bed backs onto the fridge wall, you will hear it. Dometic back this one for three years against manufacturing defects, and your rights under Australian Consumer Law sit alongside that.
