The Owner's Insights on the Purple Line Quattro Platinum Caravan Mover
The reason this works where a powered jockey wheel doesn't is where it grips. A jockey wheel drives the A-frame, which carries almost none of the van's weight. The Quattro drives the caravan wheels, where about 90% of it sits. That's the difference between shifting your van and spinning a wheel on gravel.
Pick the variant by your axles, not your budget. Single axle gets two motors and handles up to 1.5 tonnes on a 25% incline. Twin axle gets four motors and handles up to 2.5 tonnes on a 20% incline. Get that wrong and you've bought something that can't move your van.
Before you order, measure across your van at the wheels. It fits between 1,800mm and 2,500mm. And it draws up to 120 amps at peak, so your battery and cabling need to be up to it.
Why You'll Love the Purple Line Quattro Platinum Caravan Mover
- Drives the caravan wheels. Grips where 90% of your van's weight actually sits.
- Up to 2.5 tonnes on twin axle. Big Aussie vans, not just the light ones.
- 180mm wide rollers. More contact on your tyre, so less slip under load.
- Soft-start mechanics. Your van creeps off rather than lurching into the fence.
- Remote control operation. You walk beside it and watch both corners as it moves.
- 12cm per second top speed. Slow enough to place your van exactly where you want it.
- Wind-on engager. Set it against your tyre without crawling underneath.
- 31kg with the fit kit. Bolted on once and it lives there.
Why You Should Consider a Purple Line Caravan Mover
Purple Line have been building caravan movers in the UK for years, and the Quattro Platinum is their top model. See the rest of the caravan mover range.
Purple Line Quattro Platinum Caravan Mover Specifications
| Operational voltage | 12V DC |
| Average current consumption | 25A |
| Maximum current consumption | 120A |
| Power output | 585kg |
| Maximum speed | 12cm per second |
| Weight | 31kg including fit kit |
| Minimum van width | 1,800mm |
| Maximum van width | 2,500mm |
| Safe working load, single axle (2 motors) | Up to 1.5 tonnes on a 25% incline |
| Safe working load, twin axle (4 motors) | Up to 2.5 tonnes on a 20% incline |
| Rollers | 180mm wide |
| Compatibility | Single, twin and 4WD caravans |
| Control | Remote |
| Model | Quattro Platinum |
Single axle or twin axle: get this right
This isn't an upgrade decision, it's a matching decision. The single axle kit runs two motors and is rated to 1.5 tonnes on a 25% incline. The twin axle kit runs four motors and is rated to 2.5 tonnes on a 20% incline. Match it to the van you own: count your axles, check your ATM, and choose accordingly. If your van sits close to either limit, ring the store on 03 7056 6732 before you order and we'll go through it with you.
Why it beats a powered jockey wheel
A jockey wheel sits on the A-frame, which carries roughly 10% of your van's weight. That's all the grip it has. Push against a slope, a bit of gravel or wet grass and it spins. The Quattro clamps onto the caravan wheels themselves, so it's working with 90% of the weight pressing down on 180mm of roller. On a flat driveway both will do the job. On anything harder, only one of them will.
What your battery needs to handle
It runs on 12V DC and pulls about 25 amps in normal use, but the peak figure is the one to plan around: up to 120 amps when it's working hard. That means a healthy battery, proper cable sizing and correct fusing. A tired battery that starts the van fine can still fail here, because this draws far more than anything else in your setup. Get an auto electrician to do the install and the wiring properly.
Measuring your van before you order
Two numbers matter. The mover fits vans between 1,800mm and 2,500mm wide, measured across the chassis at the wheels, so check yours against that range rather than guessing from the outside body width. Then there's clearance around the wheel arch for the roller and the engager to sit. If you're not confident measuring it, send us a photo and the model of your van and we'll tell you whether it fits.
Using it without denting anything
The soft-start is worth understanding. A mover that engages abruptly makes a heavy van lurch, and a lurching van near a garage door is an expensive noise. This one ramps up, and it tops out at 12cm per second, which is deliberately slow. Walk beside it with the remote, keep an eye on both rear corners, and you can put a big van into a tight space on your own without a spotter.
What's Included
- Purple Line Quattro Platinum caravan mover in your chosen axle configuration
- Fit kit

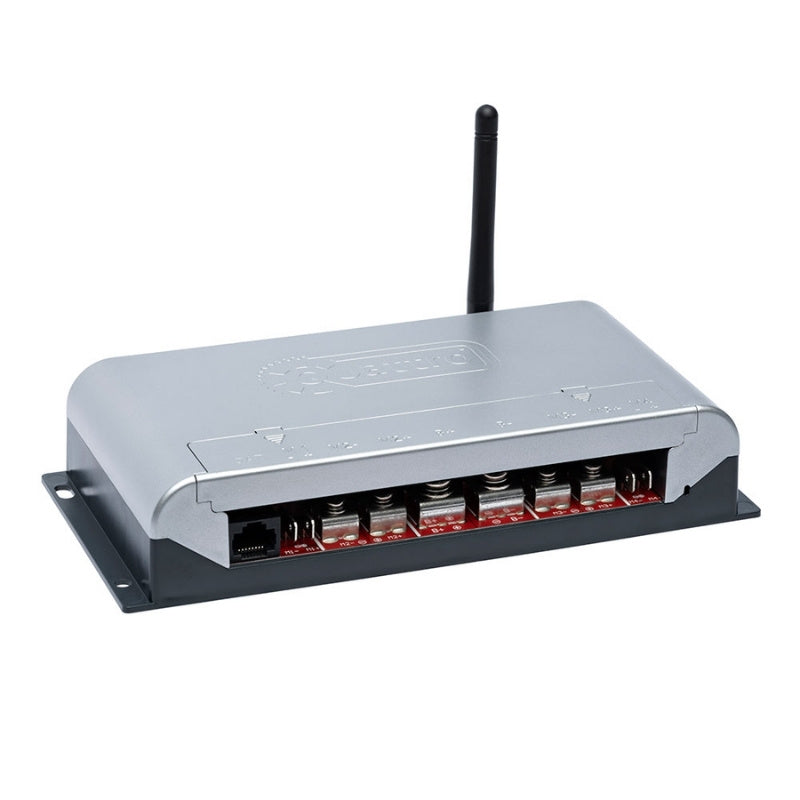

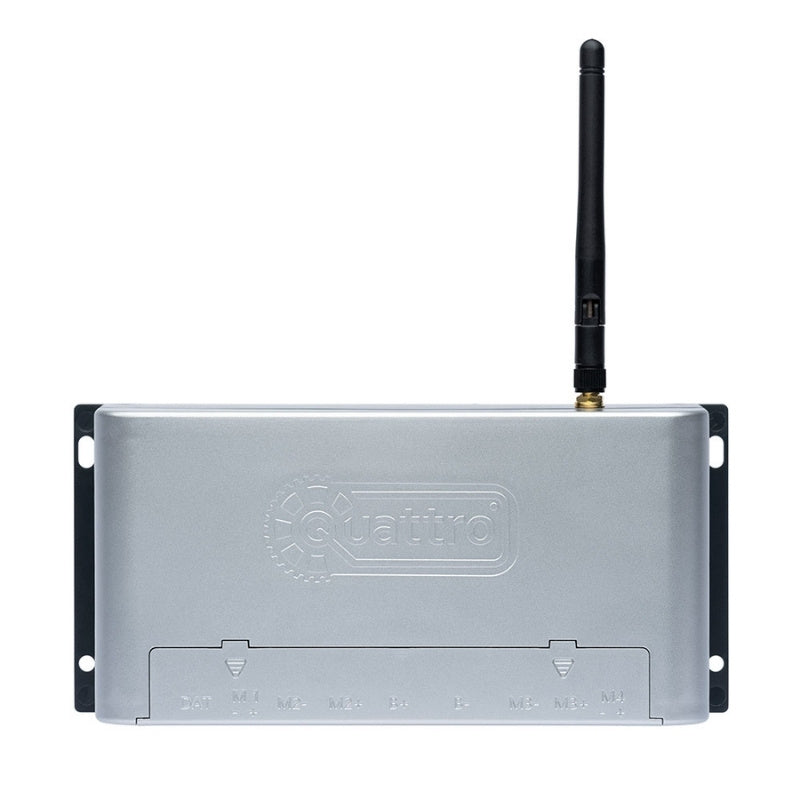

- Control unit

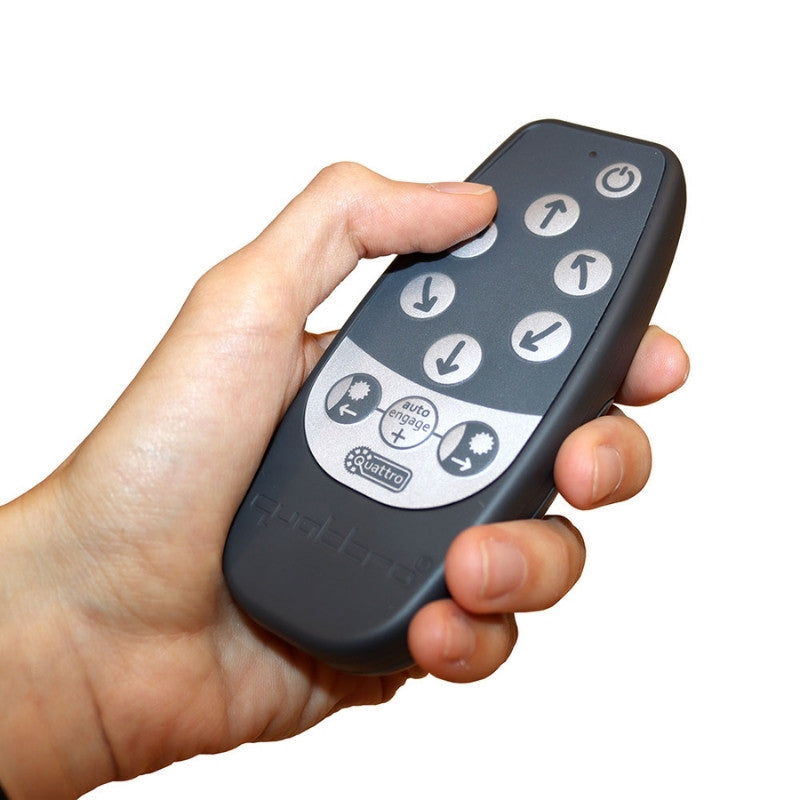

- Remote control
What's Not Included
- Professional installation
- A 12V battery capable of a 120A peak draw
- Cabling and fusing for the install
The fit kit, control unit and remote all come with it. What's not included is the install: this bolts to your chassis and wires into your battery, so get a caravan fitter or auto electrician onto it.
Not Sure Which Caravan Mover Suits You?
The Quattro Platinum suits you if you want to park a heavy van by yourself, in a driveway or a storage yard where reversing isn't practical. It's the wrong pick if your van is under 1,800mm or over 2,500mm wide, or if your 12V system can't support a 120 amp peak. Not sure whether it fits your van, or which axle kit you need? Call the store on 03 7056 6732, or send an SMS to 0476 330 590 and we'll check it before you order.
