Renogy 12V 200Ah Lithium Iron Phosphate Battery w/ Bluetooth BMS
Not sure which model?
SMALL AUSSIE BUSINESS
Chat direct to the owner
GEAR SPECIALISTS
Let us find your perfect model and size
100 DAY RETURNS
Change your mind? No Dramas.
The Owner's Insights on the Core 200Ah Bluetooth Battery
Most 200Ah lithium batteries ask you to pick one thing: real capacity, or an easy fit in the space you've actually got. This one doesn't make you choose. It's a straightforward two-terminal battery on M8 stud bolts, and at 20.2kg it's about the same as a bag of cement, so one person can still wrestle it into a canopy or under a caravan seat without a mate on the other end.
So what's new on this one? The Bluetooth. Pair it once with the Renogy app and you can check state of charge, voltage and history straight from your phone, instead of guessing or pulling your drawer out to squint at a screen. Handy at 6am when you just want to know your fridge made it through the night.
Worth knowing before you buy: this is a bare battery, not a power station. No inverter, no AC outlets. You're wiring it into a 12V system you already run, or building one from scratch. Want power straight out of the box? One of our power stations suits you better.
What Customers Say About the Core 200Ah Bluetooth Battery
Other owners keep landing on two things. First, how it performs once it's actually wired in, running inverters well over a thousand watts without drama and holding up cycle after cycle. A few mention swapping out a different 200Ah brand and finding this one noticeably better in daily use.
The other common thread is the Bluetooth. Owners who were sceptical about needing an app for a battery say it's turned into one of the features they use most, for the simple reason of not having to guess.
Why You'll Love the Core 200Ah Bluetooth Battery
- True 200Ah plus up to 6% bonus capacity Up to 2,713Wh of usable energy, more free power than the number on the box suggests.
- Built-in Bluetooth monitoring Check state of charge, voltage, current and history from your phone with the Renogy app, no lid-lifting required.
- 200A BMS with low-temperature charge cut-off Stops your charging automatically below 0°C, so a cold night doesn't damage the cells.
- 400A peak discharge for 10 seconds Enough surge to start an inverter or heavy-duty gear without a voltage dip.
- 5,000 cycles at 80% depth of discharge A trip every weekend for years, and yours is still going strong.
- Series or parallel to 48V Wire up to 4 in series, 4 in parallel, or a mixed 4S4P bank of 16 batteries for up to 40.96kWh.
Why You Should Consider a Renogy Lithium Battery
Renogy's spent over a decade building 12V lithium gear for Aussie off-gridders. The Core series is where the engineering shows: genuine 200Ah capacity, a proper 200A BMS and RCM certification for the Australian market, backed by a 5-year warranty. Buy it through True Gear and you get local support, not a forum post to an overseas seller. Browse the rest of the Renogy range, or True Gear's other lithium batteries.
Core 200Ah Bluetooth Battery Specifications
| Nominal Voltage | 12.8V |
| Rated Capacity | 200Ah (up to 212Ah / 2,713Wh with bonus capacity) |
| Energy | 2,560Wh |
| Voltage Range | 10V to 14.8V |
| Cell Chemistry | LiFePO4 (Lithium Iron Phosphate) |
| Cycle Life | 5,000 cycles (80% DOD, 80% EOL, 0.5C/1C, 25°C) |
| Charge Voltage | 14.4V |
| Max Continuous Charge Current | 200A |
| Max Continuous Discharge Current | 200A |
| Peak Discharge Current | 400A @ 10s |
| Charge Temperature Range | 0°C to 50°C |
| Discharge Temperature Range | -20°C to 55°C |
| Storage Temperature Range | -20°C to 65°C |
| Operating Humidity | 10% to 95% |
| Dimensions (L x W x H) | 502 x 187 x 242mm |
| Weight | 20.2kg |
| Terminal | M8 stud bolts |
| Protection Rating | IP65 |
| Bluetooth Monitoring | Built in - real-time SOC, voltage, current and history via the Renogy app |
| Max Series/Parallel | 4 in series or 4 in parallel (4S4P max, 16 batteries) |
| Certifications | MSDS, UN38.3, FCC, PSE, IC, RCM, RoHS, CE, UKCA |
| Warranty | 5-year material warranty |
| What's In The Box | 1x battery, user manual, insulating sleeve, 2x M8 long terminal bolt |
| Model / SKU | RBT12200LFP-B-G1-AU |

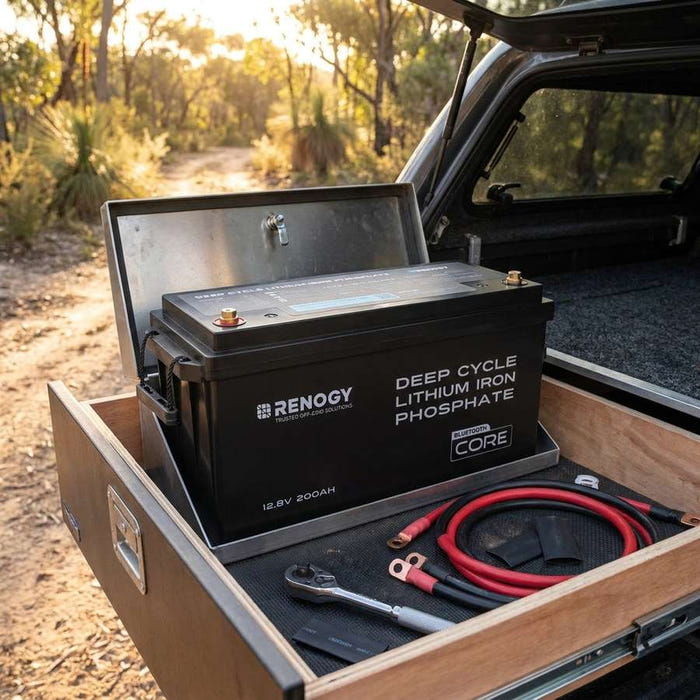

Fitting the Core 200Ah into your existing battery box
At 502 x 187 x 242mm, your Core 200Ah sits close to the footprint of most standard 200Ah batteries, so it's usually a straightforward swap into your existing box or tray built for lead-acid or AGM. Check the internal dimensions of your box before you order, with a little clearance for the terminals and the rope handles. At 20.2kg it needs a proper tray or strapping once it's in, the same as any battery this size you own. If your box was sized for a bulkier 200Ah AGM, you'll likely find the Core 200Ah has room to spare.
Renogy Core 200Ah Bluetooth monitoring, what it actually does
The Bluetooth on your Core 200Ah is for monitoring, not control. Pair it with the free Renogy app and you get live state of charge, voltage, current and charge history on your phone, without lifting a lid or squinting at a shunt. It doesn't replace your charge controller or DC-DC charger. Those still do the actual charging; the app just tells you how it's going. If you never open the app, your battery works exactly the same. It's a genuinely useful extra on your setup, not something you're paying for and not using.
Sizing solar for the Core 200Ah
Work it out from the charge current, not a guess. Your Core 200Ah accepts up to 200A of charge current, but realistically your solar input will sit well under that. A single 200W panel puts out roughly 12-14A in good sun, so you'd need 4-5 panels running flat out to use the battery's full charge capacity in one hit. For most set-ups, 1-2 panels (200-400W) will comfortably top the battery up across a day of driving or camping, alongside a DC-DC charger doing the heavy lifting from the alternator.
How long the Core 200Ah runs a 4WD fridge
Work it out from the numbers, not a guess. Your battery holds 2,560Wh, closer to 2,713Wh with the bonus capacity. A typical 60L camp fridge averages 50W. That's 2,560 divided by 50, or just over 51 hours. Call it two full days before you've topped it up with solar or the vehicle's alternator. Run a bigger dual-zone fridge closer to 60-70W average and you're still past a day and a half. Renogy rates the 5,000-cycle life at 80% depth of discharge, so plan your daily use around that, not the full tank.
What's Included
- 1x Renogy Core 12V 200Ah Lithium Iron Phosphate Battery w/ Bluetooth
- User manual
- Insulating sleeve
- 2x M8 long terminal bolt
What's Not Included
- Battery box or tray
- Terminal cables and lugs
- Solar charge controller or DC-DC charger
- Inverter
Ships as the battery only, ready to wire into your existing or new 12V system. We stock a compatible Renogy accessory range if you need a charge controller, DC-DC charger or cabling to go with it.
Not Sure Which Renogy Battery Suits You?
Need a plug-and-play power station instead of a bare 12V battery? This isn't it. Have a look at our RV power kits instead. They pair a battery like this one with an inverter and charge controller, ready to go. Building or upgrading your own 12V system and just need the battery? This is a genuinely capable 200Ah pack, and the Bluetooth means you can actually keep an eye on it without extra gear. One honest flag: it's still a two-person-friendly but real 20.2kg lift, and the Bluetooth is monitoring only, so budget for a proper charge controller or DC-DC charger to do the actual charging. Every Core 200Ah carries Renogy's 5-year warranty. True Gear backs it with local support if you ever need it sorted.
Core 200Ah Bluetooth Battery Manual
Download the Core 200Ah Bluetooth Battery user manual for full technical details and setup instructions.
