Renogy 200Ah Lithium Power Kit
SMALL AUSSIE BUSINESS
Chat direct to the owner
GEAR SPECIALISTS
Let us find your perfect model and size
30 DAY RETURNS
Change your mind? No Dramas.
The Owner's Insights on the 200Ah Lithium Power Kit
Most calls we get about a caravan power upgrade start the same way. Someone's sick of the genny. Or their old AGMs won't hold charge past day two. This kit answers both.
Two 100Ah Core Mini batteries give you 200Ah, 2,560Wh combined, without eating your whole tunnel boot. The 2000W inverter runs your microwave or your coffee machine with headroom to spare. It switches over near-instantly too, handy if you're running something like a CPAP overnight.
The 50A charger tops your bank up off the tow vehicle's alternator on the drive in, or off solar once you're parked. Worth knowing before you buy: the charger isn't rated for outdoor exposure. Give it a dry spot in your boot, not bolted under the van in the weather. And there's no tray or wiring in the box, so sort your own before install day.
Why You'll Love the 200Ah Lithium Power Kit
- Two 100Ah Core Mini LiFePO4 batteries Combine for 200Ah and 2,560Wh in a compact case that suits your tunnel boot or canopy.
- 2000W pure sine wave inverter with UPS backup Runs your sensitive electronics clean, switching over within 50 milliseconds if the input drops out.
- 50A DC-DC charger with MPPT solar input Charges off your alternator on the move or solar at camp, both from one unit.
- Bluetooth battery monitor with 500A shunt Check your voltage, current draw and state of charge from your phone instead of guessing.
- Rated for 4,000+ charge cycles Years of weekend trips before your battery bank needs replacing.
- Optional 400W N-Type solar panels Add the two anti-shading panels and keep your bank topped up without running the engine.
Why You Should Consider a Renogy Caravan Power Kit
Renogy backs its gear with component-level warranty cover, not one blanket promise. Five years prorated on the battery. Two years on the charger and the monitor. Buying a matched kit means every part's built to work together, not bolted together from whatever's on the shelf. It's backed by a brand with real AU stock and support behind it.
200Ah Lithium Power Kit Specifications
| Total Battery Capacity | 200Ah (2 x 100Ah), 12.8V nominal - 2,560Wh combined (1,280Wh per battery) |
| Battery Chemistry | LiFePO4, Core Mini compact cell, built-in Bluetooth BMS |
| Cycle Life | 4,000+ cycles (manufacturer rated) |
| Inverter Continuous Output | 2000W, pure sine wave |
| Inverter Surge Output | 4000W peak |
| Inverter Backup Function | Integrated UPS-style transfer switch, within 50 milliseconds |
| AC Outlets | 2 x 10A 230V AC (Type I, Australian), confirmed from the supplier's own inverter product photo |
| DC-DC Charger | 50A, MPPT solar and alternator input, 94% charging efficiency |
| Battery Monitor | 500A shunt, Bluetooth app, real-time voltage, current and state of charge |
| Solar Input (With Solar variant) | 2 x 200W N-Type anti-shading panels, 400W total |
| Battery Warranty | 5 years, prorated |
| DC-DC Charger Warranty | 2 years |
| Battery Monitor Warranty | 2 years |
| Inverter Warranty | 1 year |
| Solar Panel Warranty (With Solar variant) | 5 years material, tiered performance warranty to 25 years |
| Dimensions | TBC - not published for the kit as a whole (inverter alone is 442 x 220 x 92mm) |
| Weight | TBC - supplier listing weight data unreliable, see Gaps & Flags |
| Certifications | TBC - not confirmed against an AU primary source |
| Model / SKU | RBT100-Mx2-PUH2-RBC40-AU (No Solar), RBT100-Mx2-PUH2-RBC40-200ASR-AU (With Solar) |
A caravan dual battery system, done as one kit
Building a system like this yourself means sourcing a battery, an inverter, a charger and a monitor separately, then hoping they suit each other. This kit skips that guesswork for you. Renogy's already matched the components to work together. You're wiring in one system instead of testing four. You'll still need your own tray, cabling and fusing. But the hard part, picking gear that's actually compatible, is done.
No Solar or With Solar: which 200Ah kit to pick
Mostly weekend trips, charging off your alternator on the drive in? The No Solar kit covers you. Parked up for days at a time and want the bank topping up without the engine running, add the two 200W N-Type panels. They're also the better pick if your van often camps somewhere it can't reach direct sun. The anti-shading cells hold output steadier under trees than a standard panel.
How much solar do you need for a 200Ah battery bank
As a rule of thumb, aim for roughly double your battery's amp-hour rating in solar watts for a full recharge from the sun alone. For 200Ah, that's around 400W. That's exactly what the With Solar kit gives you. Run your alternator charger too on driving days, and you can get away with less panel while still keeping your bank topped up.
Warranty on the 200Ah Lithium Power Kit
This kit isn't one blanket warranty term, it's four. The battery carries 5 years prorated cover. The DC-DC charger and the Bluetooth monitor each get 2 years, and the inverter gets 1. The With Solar panels carry 5 years material cover with a tiered performance warranty out to 25 years. Register each component with Renogy after you buy, so the cover's on record if you ever need it.

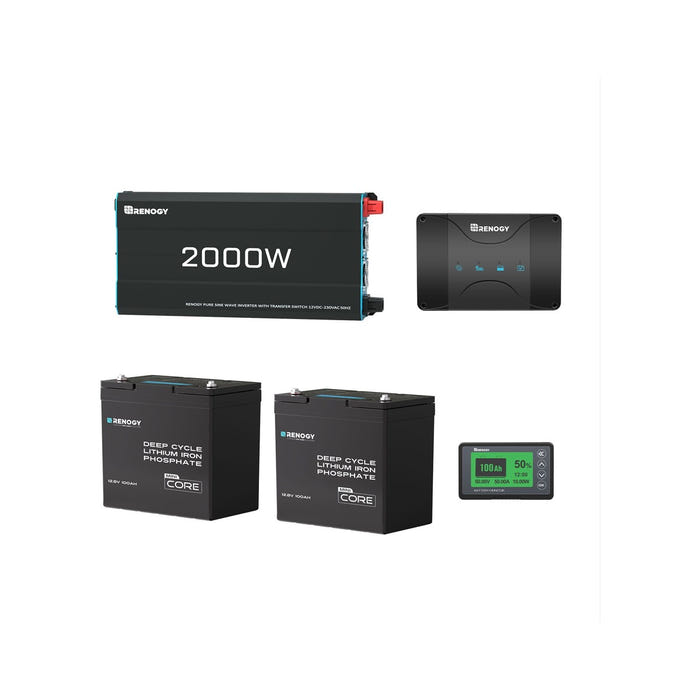

What's Included
- 2x Renogy Core Mini 12.8V 100Ah LiFePO4 Battery
- 1x Renogy 2000W 12V Pure Sine Wave Inverter
- 1x Renogy 12V 50A DC-DC On-Board Battery Charger with MPPT
- 1x Renogy 500A Battery Monitor (BT-2) with Shunt and Cables
- With Solar variant only: 2x 200W N-Type Solar Panel
What's Not Included
- Mounting tray or bracket for the batteries
- Cabling and fuses to wire the system into your caravan
- Solar panels on the No Solar variant
- Professional installation
Both variants ship as the components listed, ready to wire in. We couldn't find a matching battery tray or wiring kit for this exact Renogy kit in our own range to link here - flagged in the build notes for Tim.
Not Sure Which 200Ah Lithium Power Kit Suits You?
Only running a fridge and charging phones on weekends? The No Solar kit is plenty, and you'll save yourself the panel cost. Camping longer, or somewhere shaded? Add the N-Type panels. One thing worth flagging: this is a kit you wire into your caravan, not a plug-and-play power station. If you'd rather skip the install, a portable power station suits you better. Every component here carries Renogy's own manufacturer warranty, and we'll back you up sorting a claim if you ever need one.
200Ah Lithium Power Kit Manuals
Download the manuals for the 200Ah Lithium Power Kit for full technical details and setup instructions.
Inverter manual (PDF) · DC-DC charger manual (PDF) · Solar panel datasheet (PDF) · Warranty terms (PDF)
