The Owner's Insights on the Bluetti Battery Connection Cable
There's one job here: getting your expansion battery talking to your power station. Bluetti use different connectors across the range, so the cable that came in the box with one model won't reach the other. That's what this sorts out.
The only thing you need to get right is which end goes where. Find your battery and your station in the table below and it tells you which of the six cables you need. If your pair isn't listed, don't guess.
Buy the right one and it's a five second job. Buy the wrong one and you've got a cable that physically won't plug in. Ring us if you're unsure and we'll match it for you before you order.
Why You'll Love the Bluetti Battery Connection Cable
- Six cables, one page. Find your combination in the table and order the right one.
- Made by Bluetti. Matched to their connectors, not a generic lead that nearly fits.
- Covers the B80P to B300K. Your expansion battery connects to your station properly.
- No adapters or bodgy fixes. One cable, both ends correct, nothing to come loose.
- Fits the AC180P to AC500. Most of the range is covered across the six options.
- Not sure which one? Call us and we'll match your battery to your station.
Why You Should Consider a Bluetti Connection Cable
These are Bluetti's own connection cables, made for their connectors rather than a generic lead with an adapter on the end. See the rest of the Bluetti range.
Bluetti Battery Connection Cable Specifications

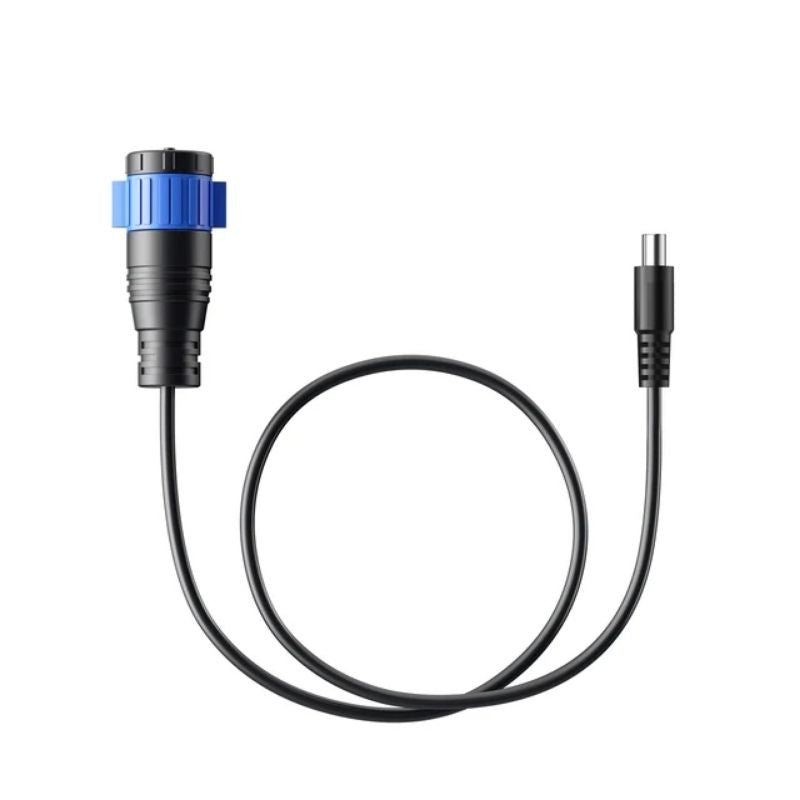

| Aviation to DC7909 | B80P to AC180P, EB70 or EB3A |
| P090D to DC7909 | B300 or B300S to EB70 or EB55 |
| P090A to P090A | AC500 to Fusion Box Pro, AC500 to AC500, B300K to AC300, AC200MAX, AC200PL or AC200L |
| P150D to P090D | B300K to AC500 |
| Aviation Plug to Aviation Plug | AC200MAX or AC200P to B230 or B300 |
| P090D to Aviation Plug | B300 or B300S to AC200MAX or AC200P |
| Brand | Bluetti |
| Type | Battery to power station connection cable |
How to work out which cable you need
Start with the two things you're joining: your expansion battery and your power station. Find that pair in the table above and the left column tells you which cable to select. If you're running a B300K into an AC500, that's the P150D to P090D. If it's a B300 into an AC200MAX, that's the P090D to Aviation Plug. Take thirty seconds over it, because the connectors aren't interchangeable and a cable with the wrong end on it simply won't plug in.
Why Bluetti use so many connectors
The range has grown over several generations, and the connector changed as the batteries got bigger and the current went up. That's why an older EB55 uses a DC7909 while a newer B300K needs a P150D. It's annoying if you're mixing generations, but the upside is that each cable is rated for the pair it's built for rather than being a compromise that suits neither.
When your combination isn't listed
Six cables cover most of the Bluetti range, but not every pairing exists. If you can't find your battery and station together in the table, don't buy the closest-looking option and hope. Call the store on 03 7056 6732 or send an SMS to 0476 330 590 with both model numbers and we'll tell you what connects, or whether that pair isn't supported at all. See the Bluetti range if you're still choosing a battery.
What's Included
- One Bluetti battery connection cable in your chosen configuration
What's Not Included
- The expansion battery
- The power station
- Adapters for pairings not listed above
You get the single cable you select, so check the table above and pick the configuration that matches your two units before you order.
Not Sure Which Connection Cable Suits You?
These cables suit you if you're adding a Bluetti expansion battery to a Bluetti power station and the two ends don't match. They're the wrong pick if you're after a solar charging lead or a mains cable, which are different products entirely. Not sure which one your setup needs? Call the store on 03 7056 6732 with both model numbers and we'll match it for you.
