The Owner's Insights on the Solar Extension Cable
The panel wants sun and the station wants shade. That's the problem this cable solves. Five or ten metres of MC4 lead means you can put your panels in the open and keep your power station under the awning where it belongs.
It's 10 AWG, which is 6mm squared of copper, so you're not losing meaningful power over the run. Thinner cable is where cheap extensions cost you output on a hot day.
It's IP65 with UV-resistant insulation and it's rated from -40 to 85 degrees, so leaving it lying in the sun or getting rained on isn't a problem. Standard MC4 ends mean it fits nearly every portable panel and station on the market.
Why You'll Love the Solar Extension Cable
- 5m or 10m of reach. Panels in the sun, power station in the shade, no compromise.
- 10 AWG (6mm²) copper. Heavy enough that you don't lose output over the run.
- Standard MC4 ends. Fits nearly every portable panel and station on the market.
- IP65 and UV resistant. It lives outside in the sun and the rain without going brittle.
- Rated 600V and 1000V DC. Far beyond what any portable setup will ever put through it.

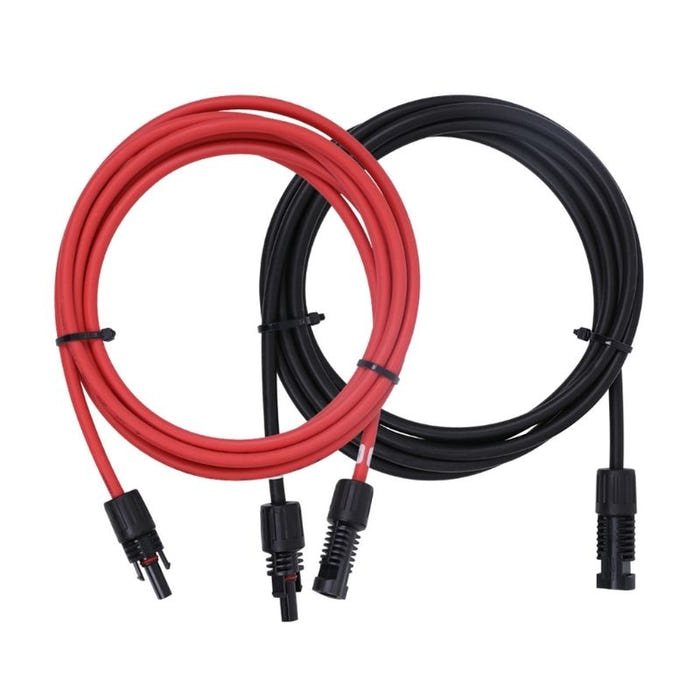

- Supplied as a pair. Male and female ends, so you extend both legs of the circuit.
Why You Should Consider a True Gear Solar Cable
This is a straightforward accessory that gets used on nearly every solar setup we sell. It's TUV certified with a 1-year material warranty. See the rest of the solar range.
Solar Extension Cable Specifications
| Length | 5m or 10m |
| Cable size | 10 AWG (6mm²) |
| Connector type | MC4, male and female |
| Rated voltage | 600V / 1000V DC |
| IP rating | IP65 |
| Insulation | UV resistant |
| Temperature range | -40 to +85°C |
| Certification | TUV certified |
| Supplied as | A pair (one male, one female) |
| Warranty | 1 year material warranty |
5 metres or 10 metres: which do you need?
Five metres covers most camp setups, where the panel sits a few steps from the van and you just need slack to chase the sun. Ten metres is what you want if your camp is under trees and the only clear patch of sun is across the clearing, or if you're setting panels on the ground while the station lives inside. If you're not sure, buy the 10: nobody has ever complained about too much cable, and you can coil the extra.
Why cable thickness matters
Every metre of cable costs you a little voltage, and thinner cable costs you more. At 10 AWG (6mm squared) the loss over 10 metres on a typical portable panel is small enough to ignore. Cheap 14 or 16 AWG extensions of the same length will quietly eat a chunk of your charge on a hot day, which is exactly when you notice it least and need it most.
Will it fit your panels?
It uses standard MC4 connectors, which is what nearly every portable solar panel and power station uses. If your panel has MC4 ends, this plugs straight in. If you're running something with a proprietary plug, check before you order. Ring the store on 03 7056 6732 with your panel and station model if you want it confirmed.
What's Included
- Solar extension cable pair, 5m or 10m by variant
- MC4 male and female connectors fitted
- 1-year material warranty
What's Not Included
- Solar panels
- MC4 branch connectors for running panels in parallel
- A power station to charge
It comes as a pair so you extend both legs of the circuit. Pair it with folding panels and a power station.
Not Sure Which Solar Cable Suits You?
Get this if your panels and your power station want to be in different places, which is nearly always. It's the wrong buy only if your gear uses something other than MC4 connectors. Not sure it fits your setup? Call the store on 03 7056 6732 and we'll check it with you before you order.
