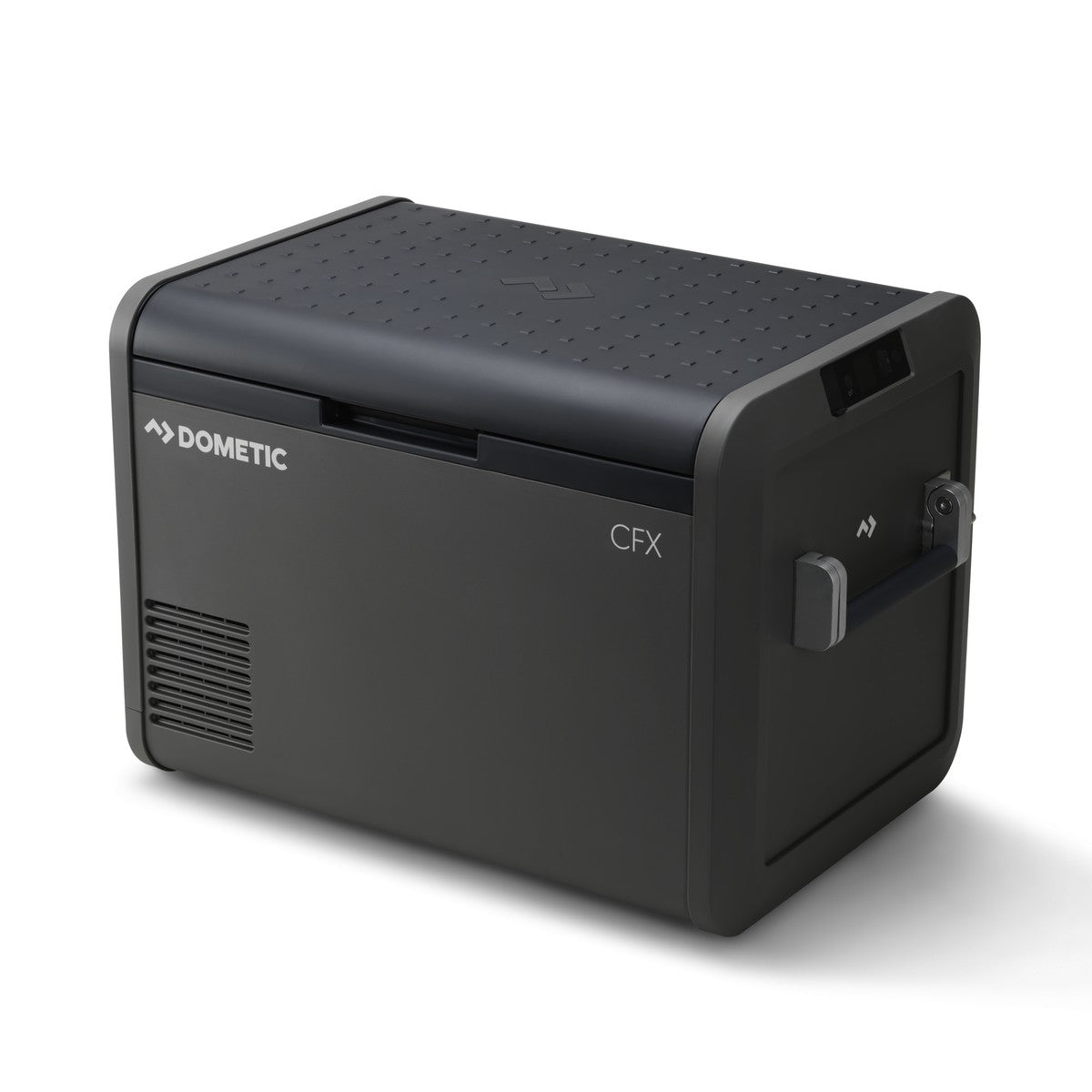

Dometic CFX5 55IM Portable Fridge Freezer with Ice Maker
SMALL AUSSIE BUSINESS
Chat direct to the owner
GEAR SPECIALISTS
Let us find your perfect model and size
30 DAY RETURNS
Change your mind? No Dramas.
The Owner's Insights on the Dometic CFX5 55IM
The IM makes ice while it is running as a fridge. That is the whole point of it, and it is genuinely useful if you are running drinks at camp or keeping fish on ice.
You give up a bit of room and 1.2kg against the standard 55, because the ice maker lives inside the box. Same 720mm by 455mm footprint on the outside.
Here is the number nobody quotes. With the ice maker running on maintenance it draws 1.21 amp-hours an hour at 12V, against 0.87 for the plain 55. That is 29 amp-hours a day, so a 100Ah battery is closer to three days than five.
Honest bit. If you are not going to use the ice, buy the standard 55, save fifty dollars and get better battery life.
Why You'll Love the Dometic CFX5 55IM
- Makes ice while it runs as a fridge. You get cold drinks and ice out of one box, without carting a bag of ice from town.
- 55 litres and 83 cans. Still a family sized fridge once the ice maker has taken its share of the space.

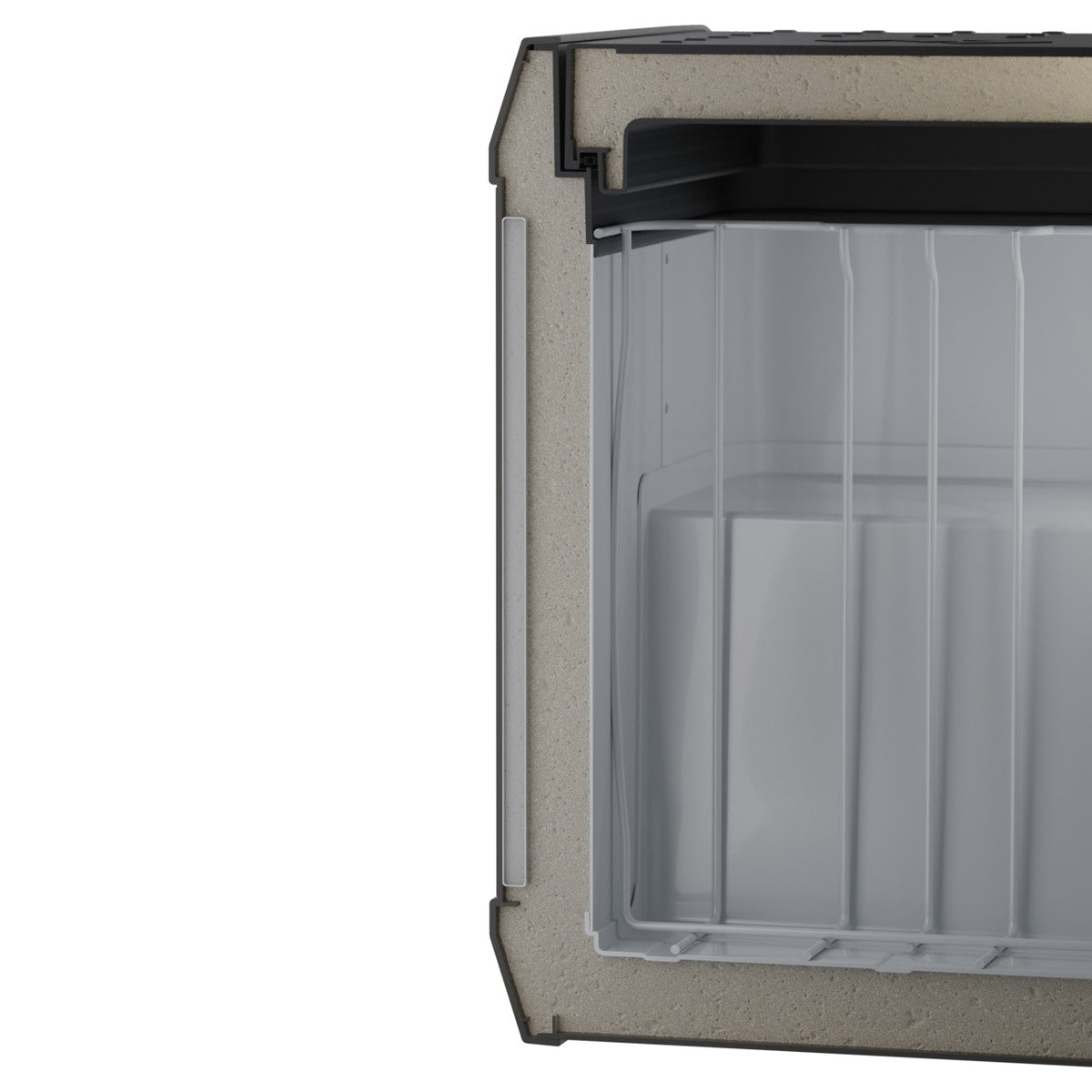

- Vacuum insulated panels. Dometic builds vacuum panels into the walls, so it holds cold longer on less power.
- Freezes to minus 22 degrees. Turn the ice off and it works as a proper freezer, same as the rest of the range.

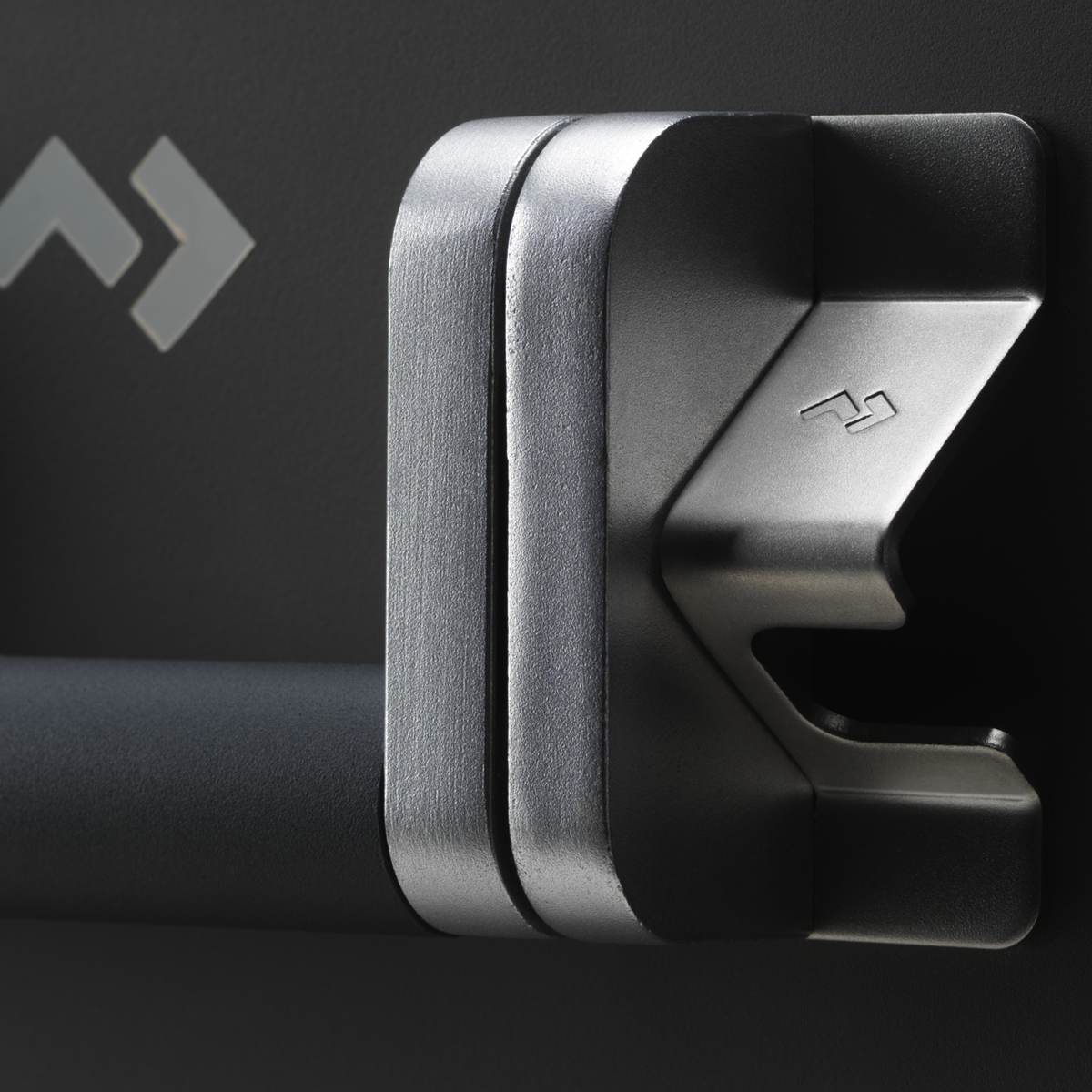

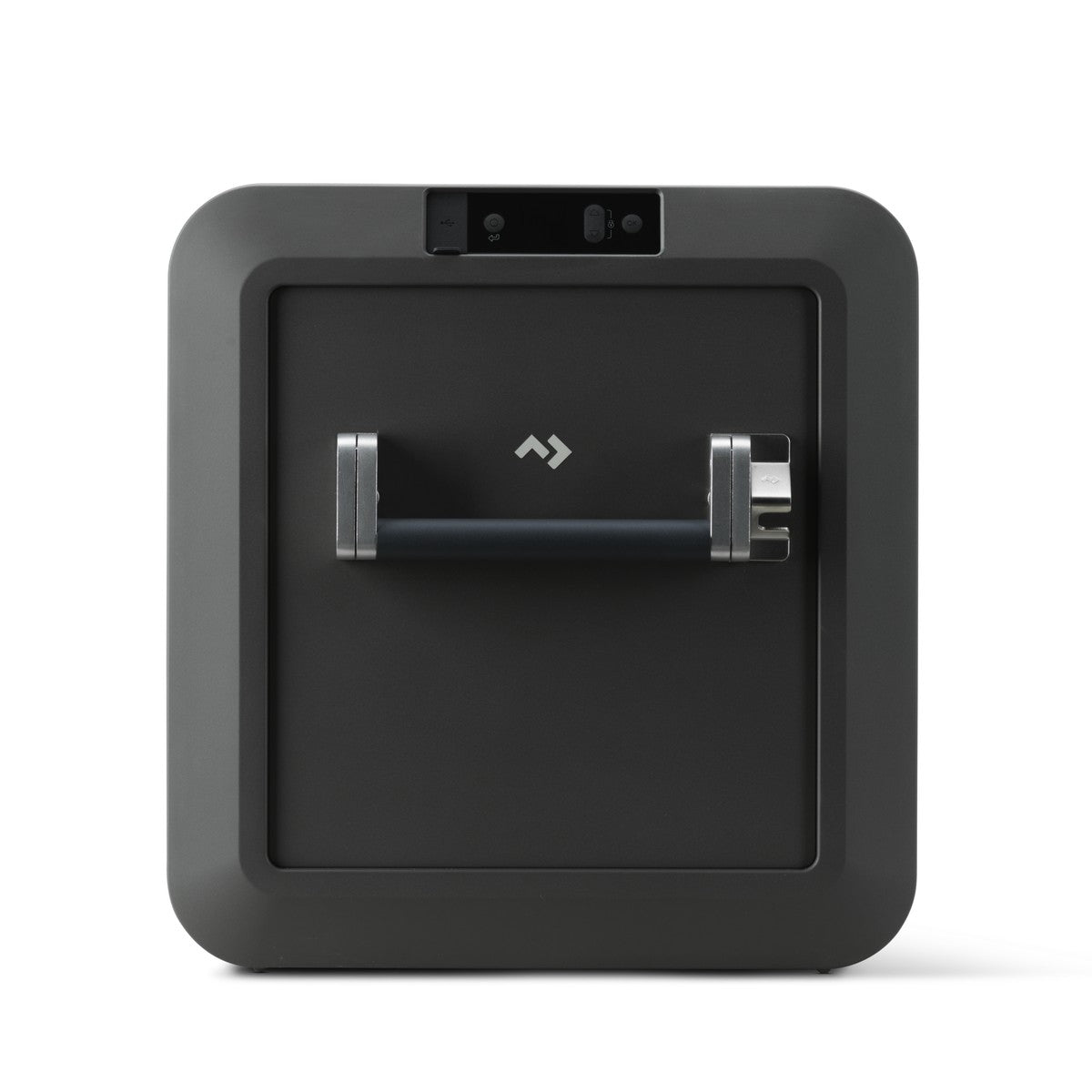

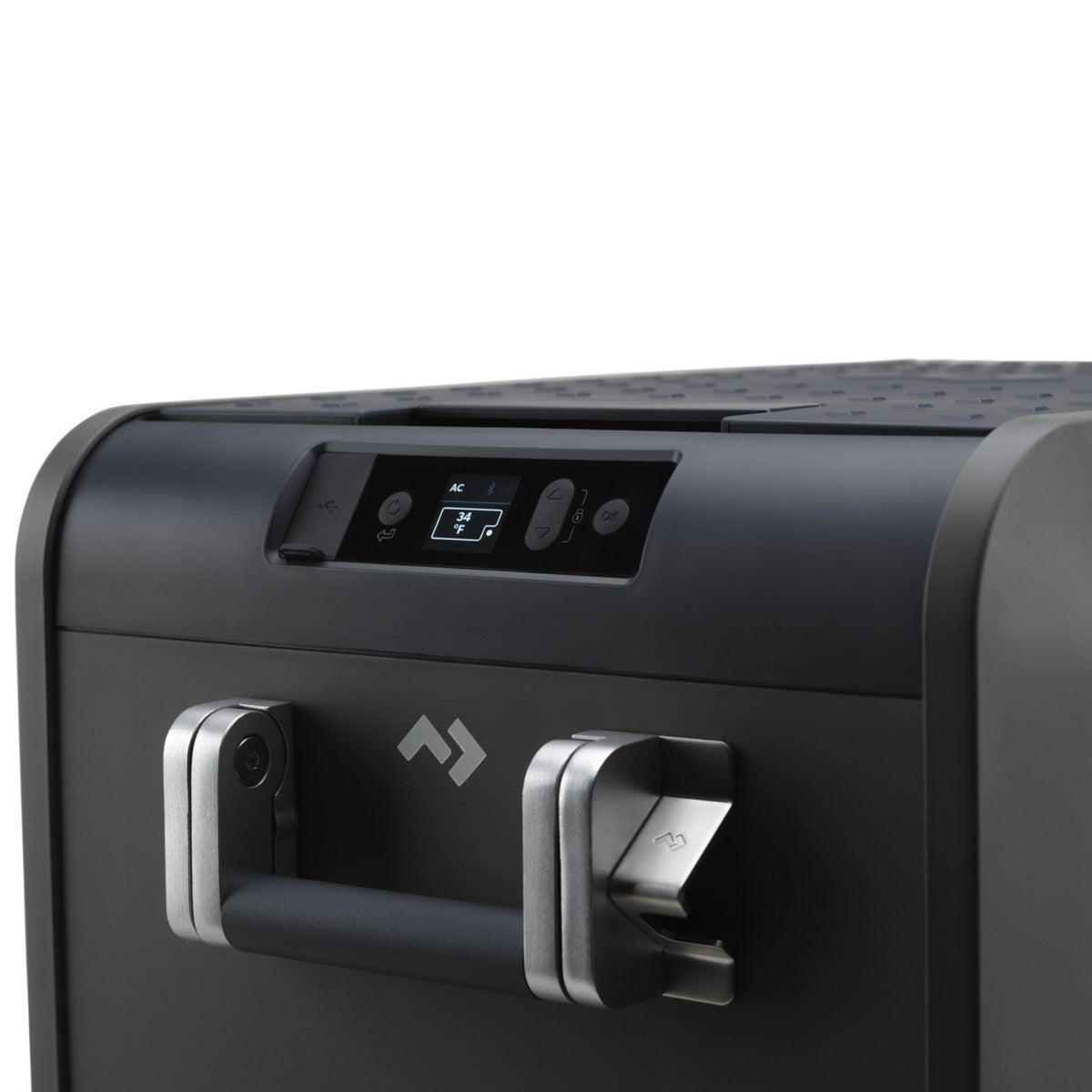

- Self-folding aluminium handles. They spring flat against the sides when you let go, which matters on a box this size.
- Bluetooth and the Dometic app. Check your temperature from the swag and watch what the ice maker is costing you.
Why You Should Consider a Dometic Portable Fridge
Dometic has been building mobile refrigeration for decades, and the CFX range is the part of the line-up made for touring rather than fixed installs. What matters most to you here is the back end. Dometic backs your CFX5 55IM with a 5-year Australian warranty, and supports it through a repair network based here. You can see the rest of the range in our Dometic collection.
Dometic CFX5 55IM Specifications
| Total volume (IEC 62552-3) | 55L |
| Can capacity | 83 x 375ml cans |
| Fridge type | Portable compressor fridge freezer, single zone |
| Temperature range | +20°C to -22°C |
| Compressor | Dometic VMSO 3.5 variable speed |
| Insulation | Vacuum insulated panels with PU (polyurethane) foam |
| Refrigerant | R600a |
| Input voltage | 12/24V DC and 100-240V AC |
| Input frequency | 50/60Hz |
| Rated input power (AC) | 47W |
| Rated input current (AC) | 1.08A at 100V; 0.46A at 240V |
| Rated input current (DC) | 4.2A at 24V, 9.6A at 12V |
| Energy consumption | 1.21 Ah/h at 12V, 32°C ambient, 4°C internal, ice maker on maintenance |
| Battery protection | 3-stage |
| Priority circuit | Integrated |
| Anti-condensation coil | Yes |
| Connectivity | Bluetooth, Dometic Mobile Cooling app |
| USB port | Yes |
| Interior light | LED |

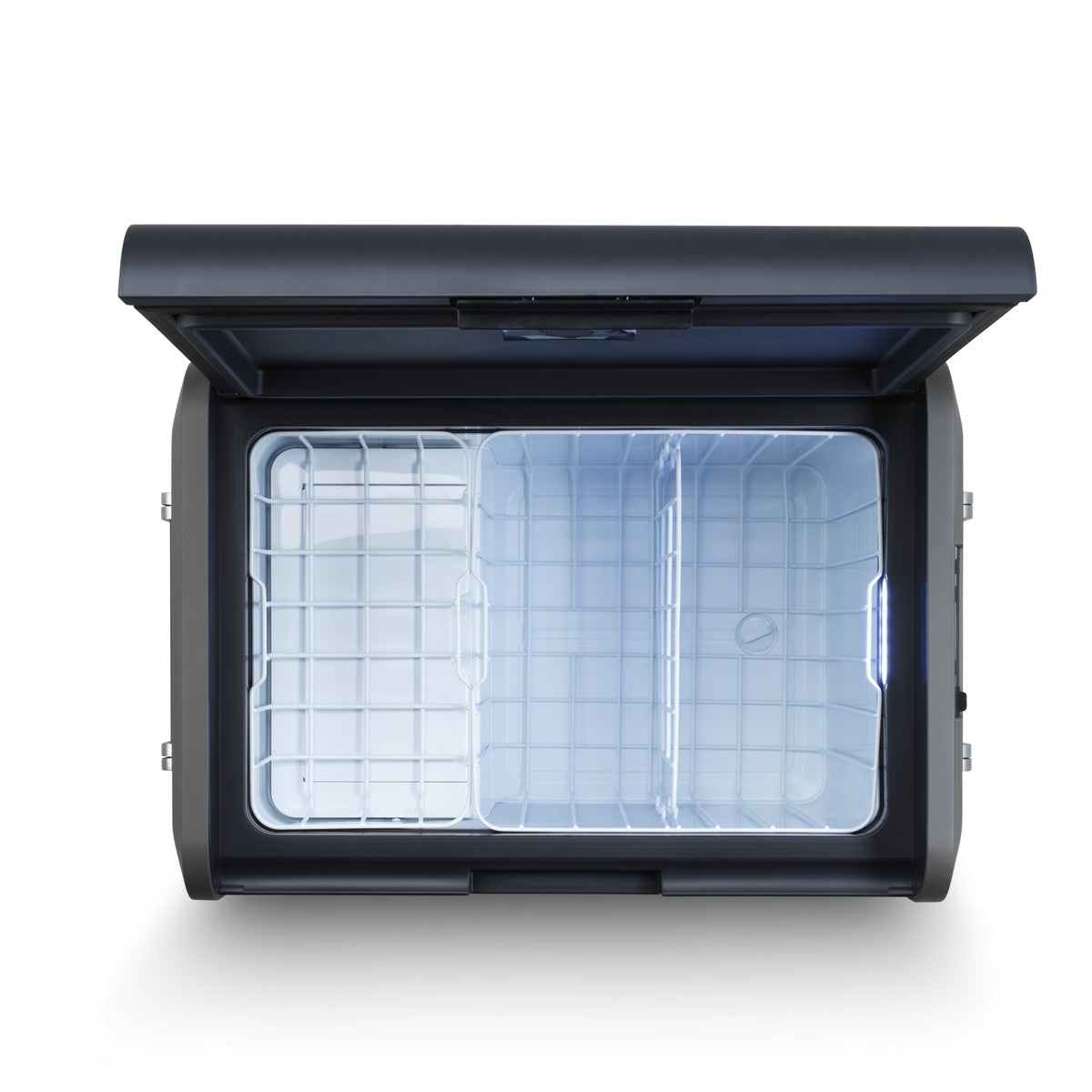

| Basket | Removable wire basket |
| Drain plug | Yes |
| Mounting | M6 threaded inserts in the base |
| Handles | Self-folding aluminium with integrated bottle opener |
| Climate class (EN 62552) | N/T |
| Operating temperature | 16°C to 43°C ambient |

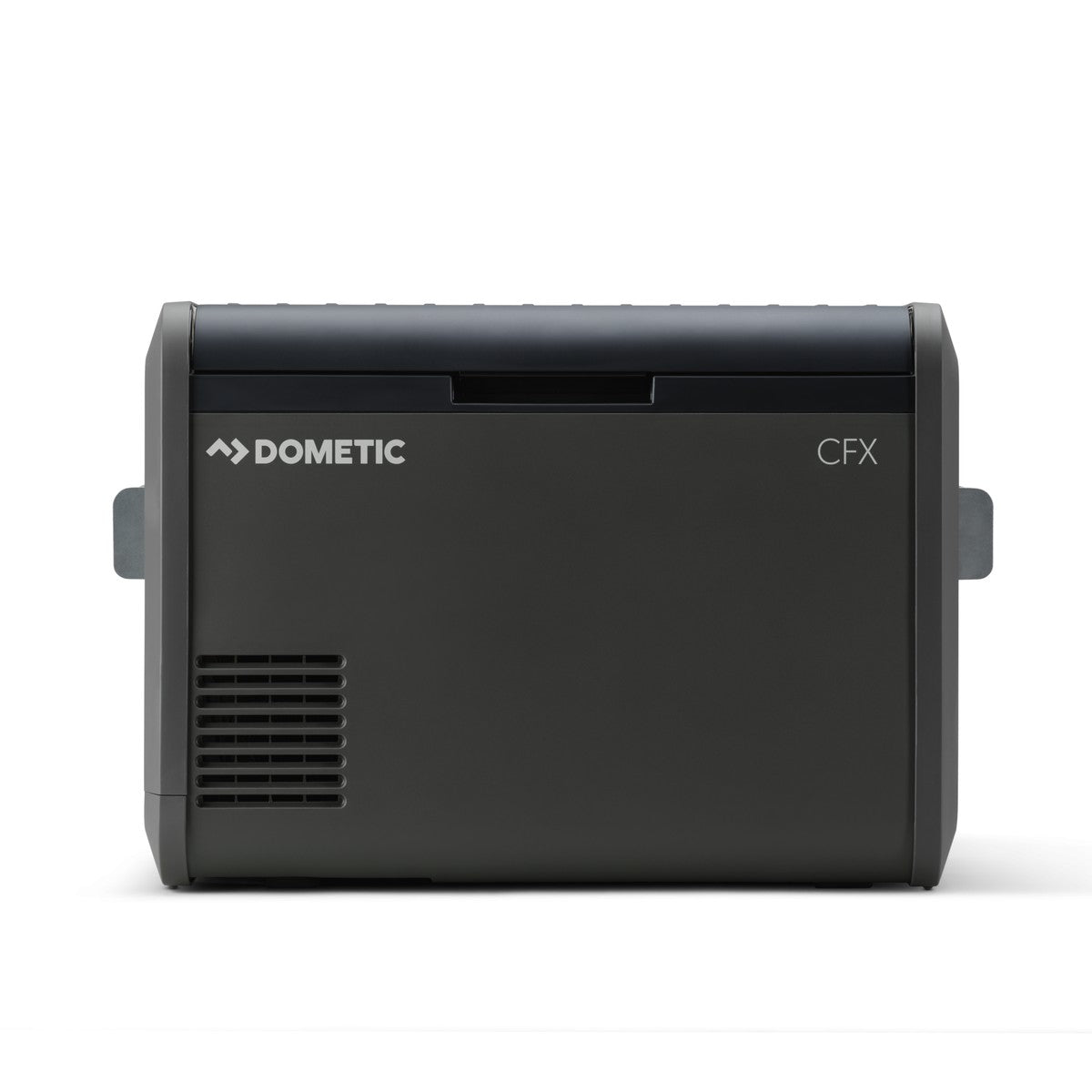

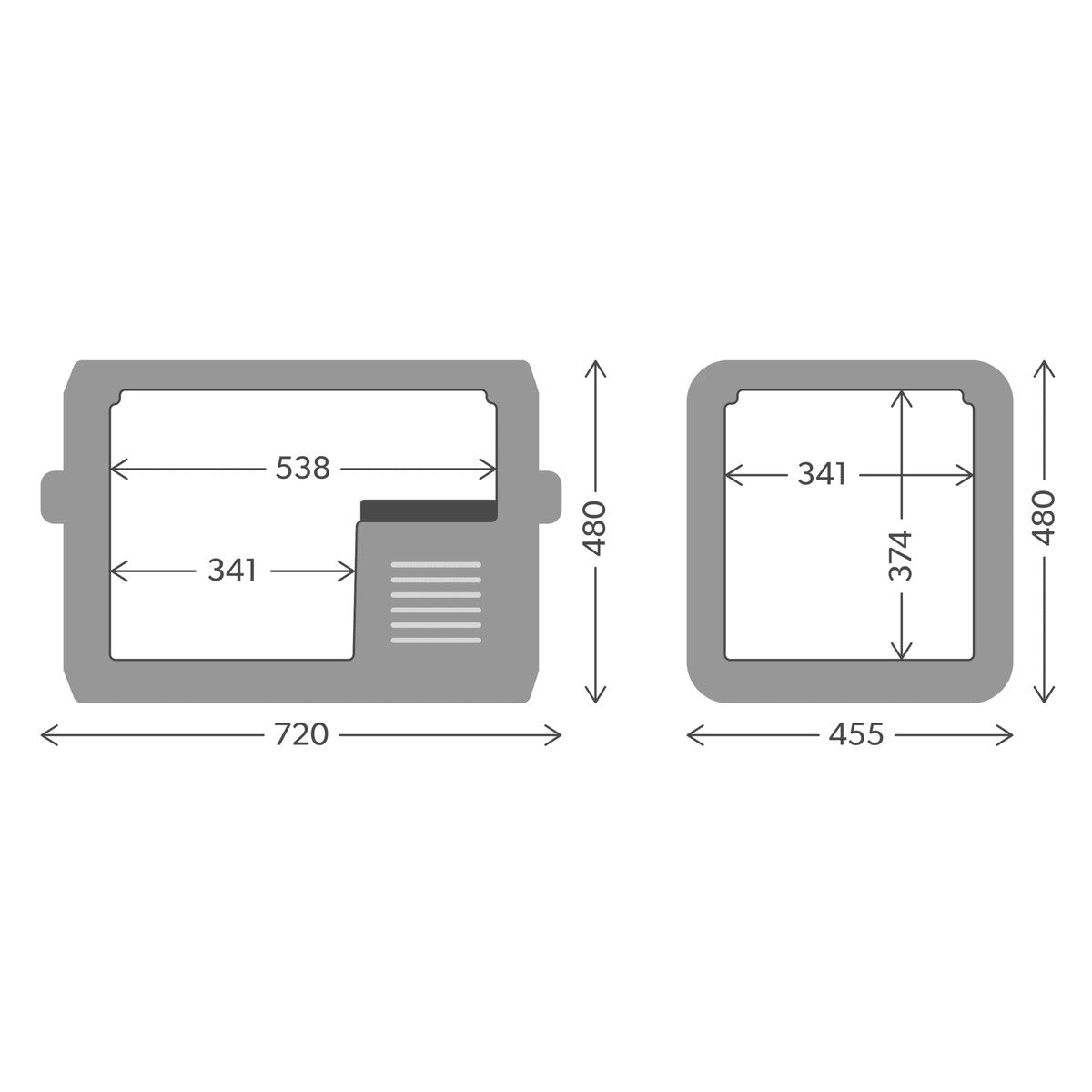

| Dimensions (L x W x H) | 720 x 455 x 480mm |
| Net weight | 21.90kg |
| Packed size (L x W x H) | 760 x 495 x 520mm |
| Packed weight | 24.80kg |
| Colour | Black |
| Warranty | 5 years |
| Model | CFX555IM |
| Item number | 9620015961 |
| Barcode (EAN-13) | 6975399593997 |
What Size Power Station Runs the CFX5 55IM
With the ice maker running your fridge averages 1.21 amp-hours an hour at 12V, which is about 349 watt-hours a day in 32 degree heat. A 1,000Wh power station runs it under three days before you need a top-up, so this is the model in the range that really wants solar behind it. If you are not sure what size suits your setup, the Power Station Finder asks you a few questions and gives you a straight answer, or browse the portable power station range.
Dometic CFX5 55IM vs the standard CFX5 55
Same outside dimensions, same 5-year warranty, fifty dollars apart. The IM makes ice and gives up two cans of packing space to do it, and it weighs 1.2kg more. The real cost is power. Running the ice maker takes you from 0.87 to 1.21 amp-hours an hour, which is roughly two days less on a 100Ah battery. Buy the IM if you will actually use the ice. If not, the plain 55 is the better fridge.
Fitting the CFX5 55IM to a Fridge Slide

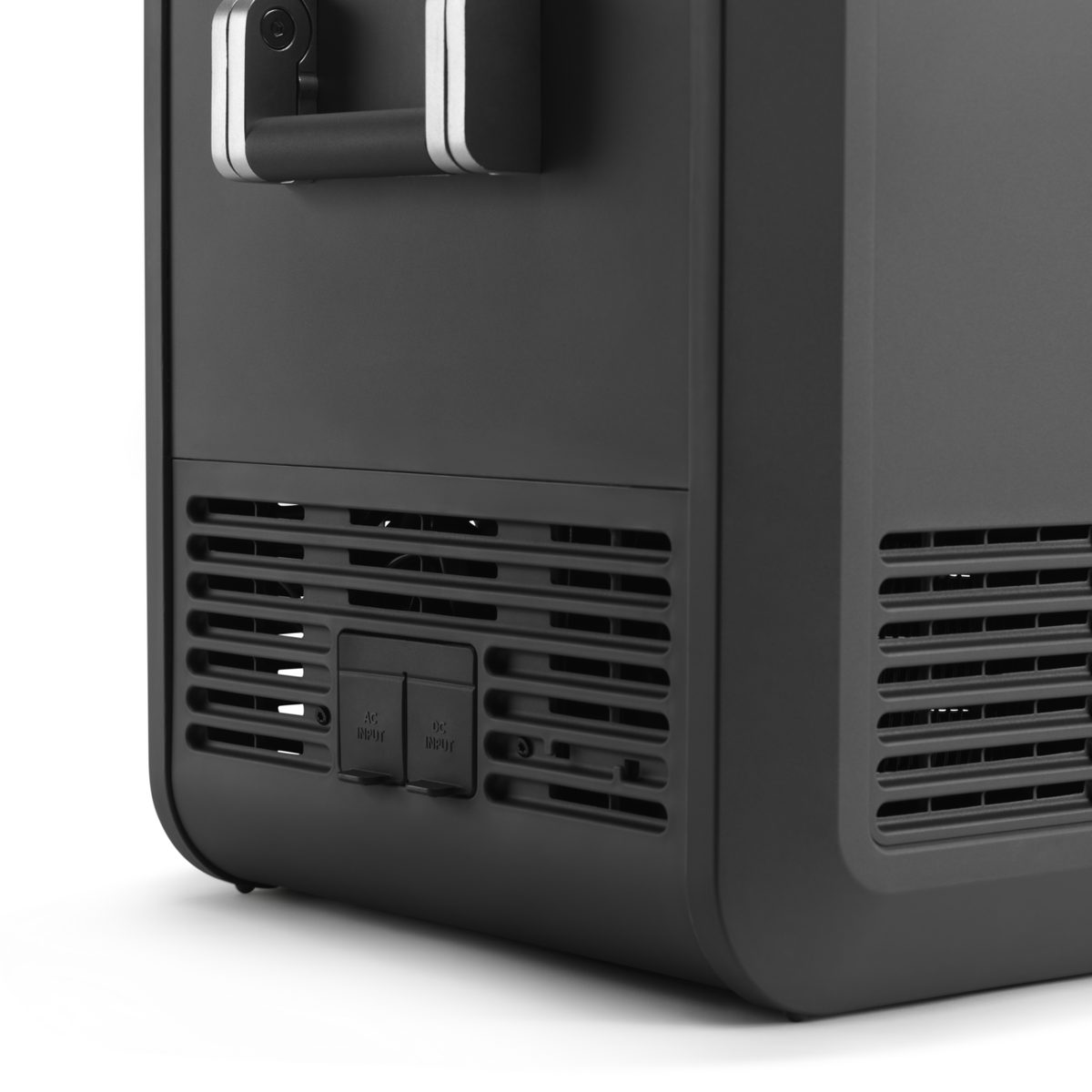

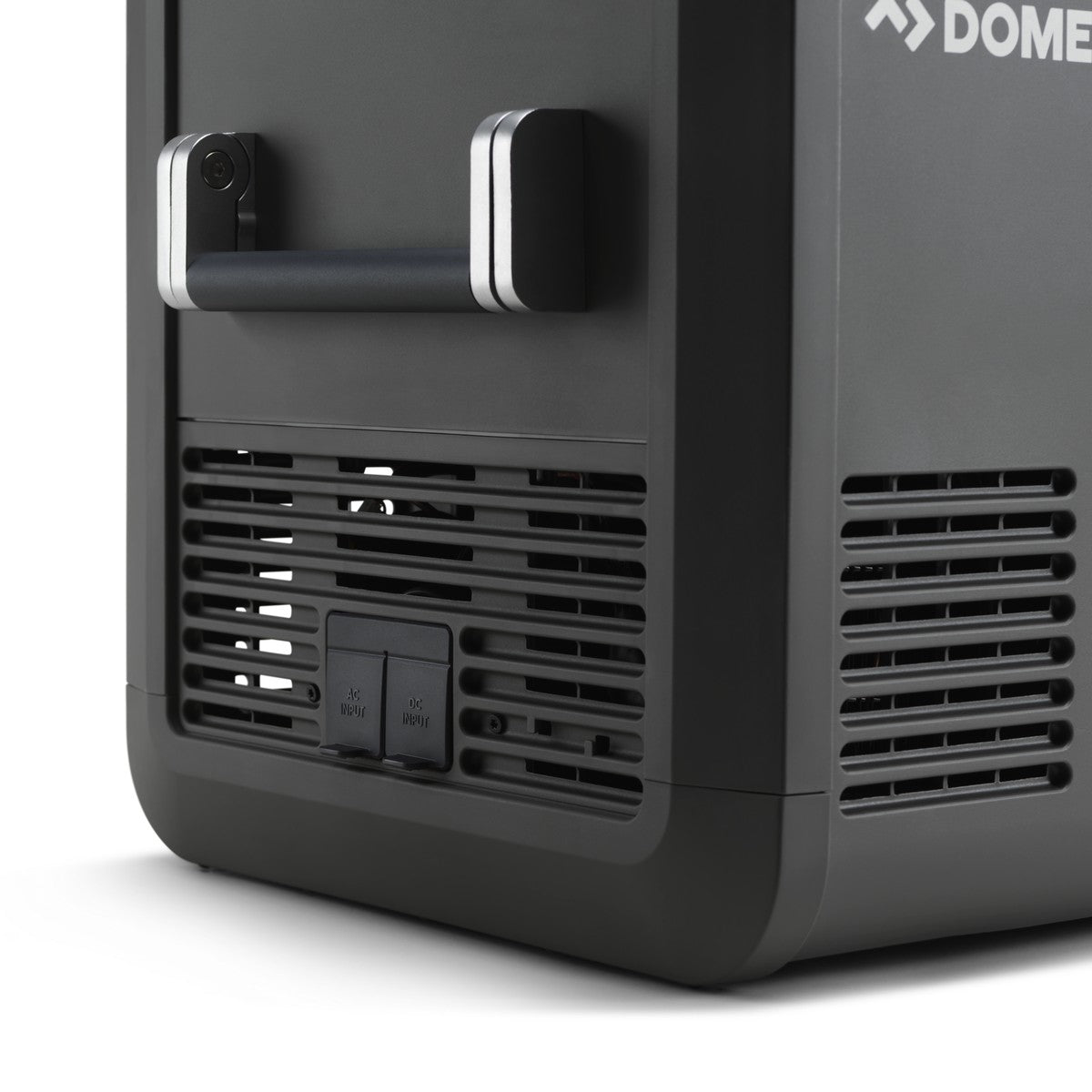

There are M6 threaded inserts moulded into the base, so you can bolt it to a fridge slide or your drawer system without drilling the shell. The box is 720mm long, 455mm deep and 480mm high, the same as the standard 55. Measure your slide before you order and leave clearance at the back for the vent and the power socket. If a portable box is not the answer and you want a fridge built into the van, look at the RV fridge range instead.
What's Included
- Dometic CFX5 55IM portable fridge freezer
- 12/24V DC connection cable
- 100-240V AC connection cable
- Removable wire basket
- Built-in bottle opener
- User manual
- Warranty card
What's Not Included
- Protective cover
- Fridge slide or drawer mount
- Battery or power station for off-grid use
- Solar panel
Ships from Melbourne. To run it away from mains power you will want a portable power station, which is what most owners pair it with.
Not Sure Which Camping Fridge Suits You?
Will you actually use the ice? Buy the IM for that, not for the fridge. As a fridge it holds two cans fewer than the standard 55 and it draws noticeably more power when the ice maker is working, 1.21 amp-hours an hour against 0.87. That is the honest limit and it is worth understanding before you order. If you want frozen meat and cold drinks at the same time instead, look at the 75DZ. Your order ships from Melbourne and your CFX5 carries a 5-year Dometic warranty backed by their Australian repair network. Compare the rest of the camping fridge range, or give us a call and you will get a straight answer, not a script.
