The Owner's Insights on the NRX 80C

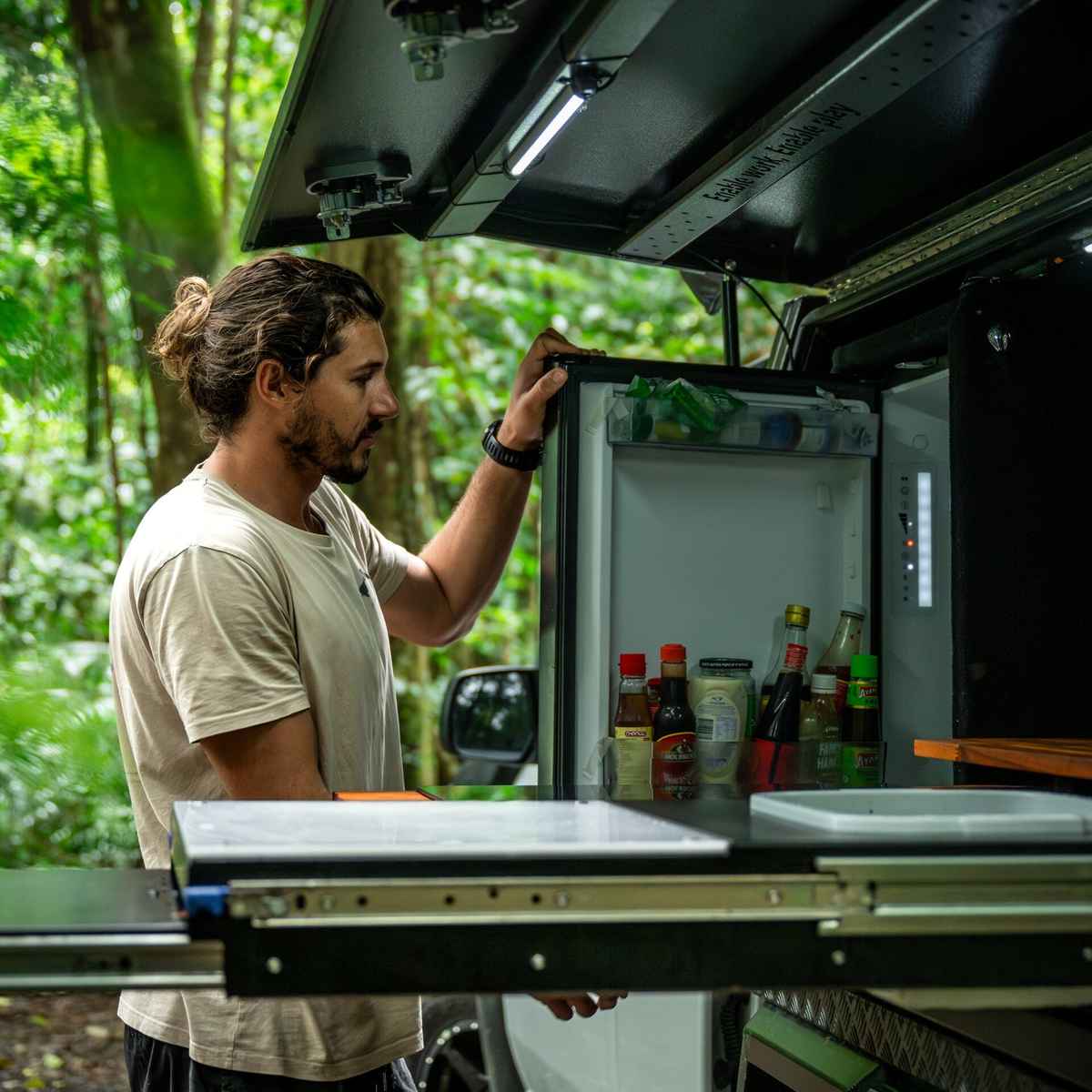

I've had a fair bit to do with upright fridges going into caravans and canopies. As a caravan fridge the NRX 80C is the one I keep pointing people at when they want a real fridge, not an esky with a compressor bolted on.

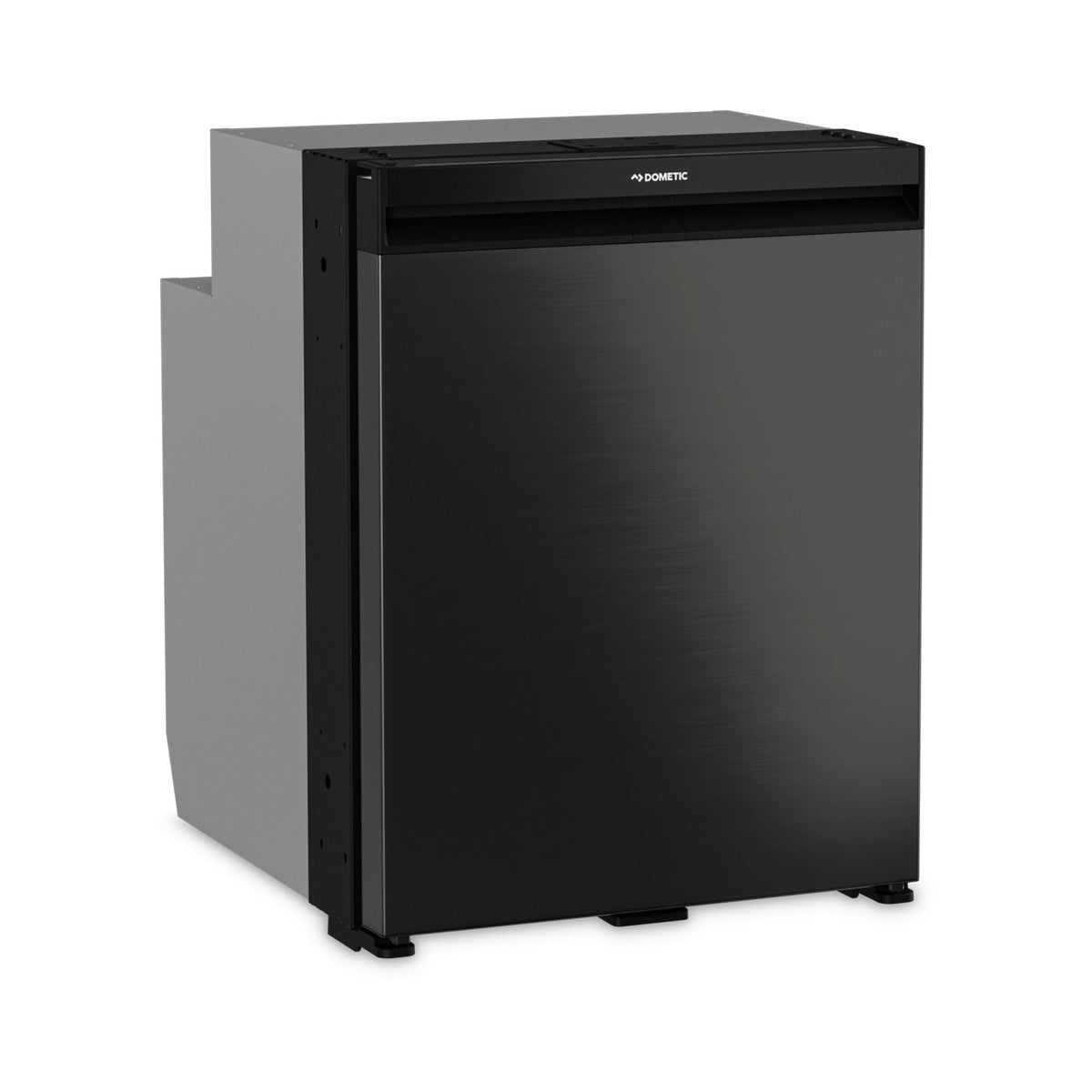

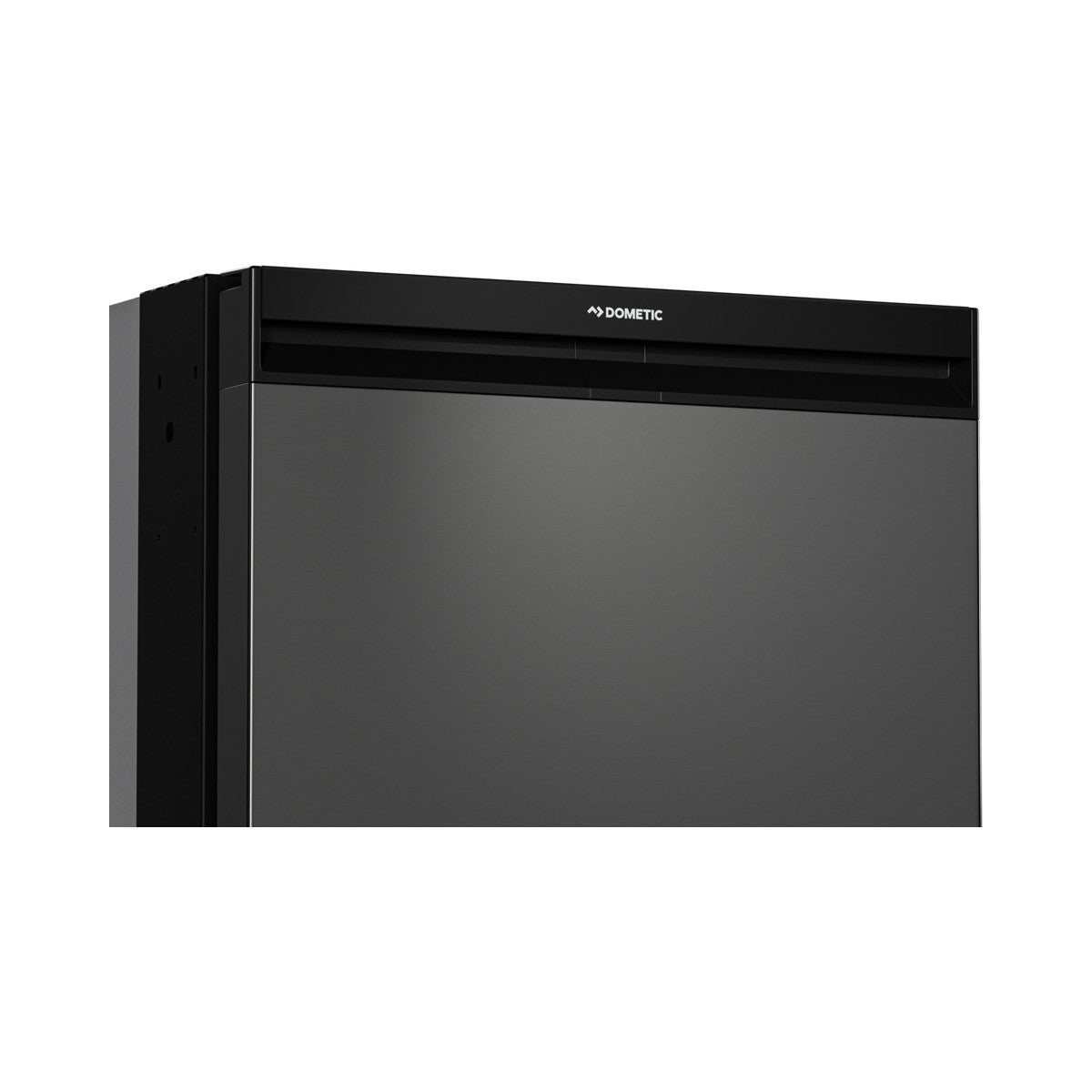

It's the door that does it. Frameless, dark grey, with a handle running the full width. You grab it anywhere and it opens. No latch to fiddle with when your hands are full.

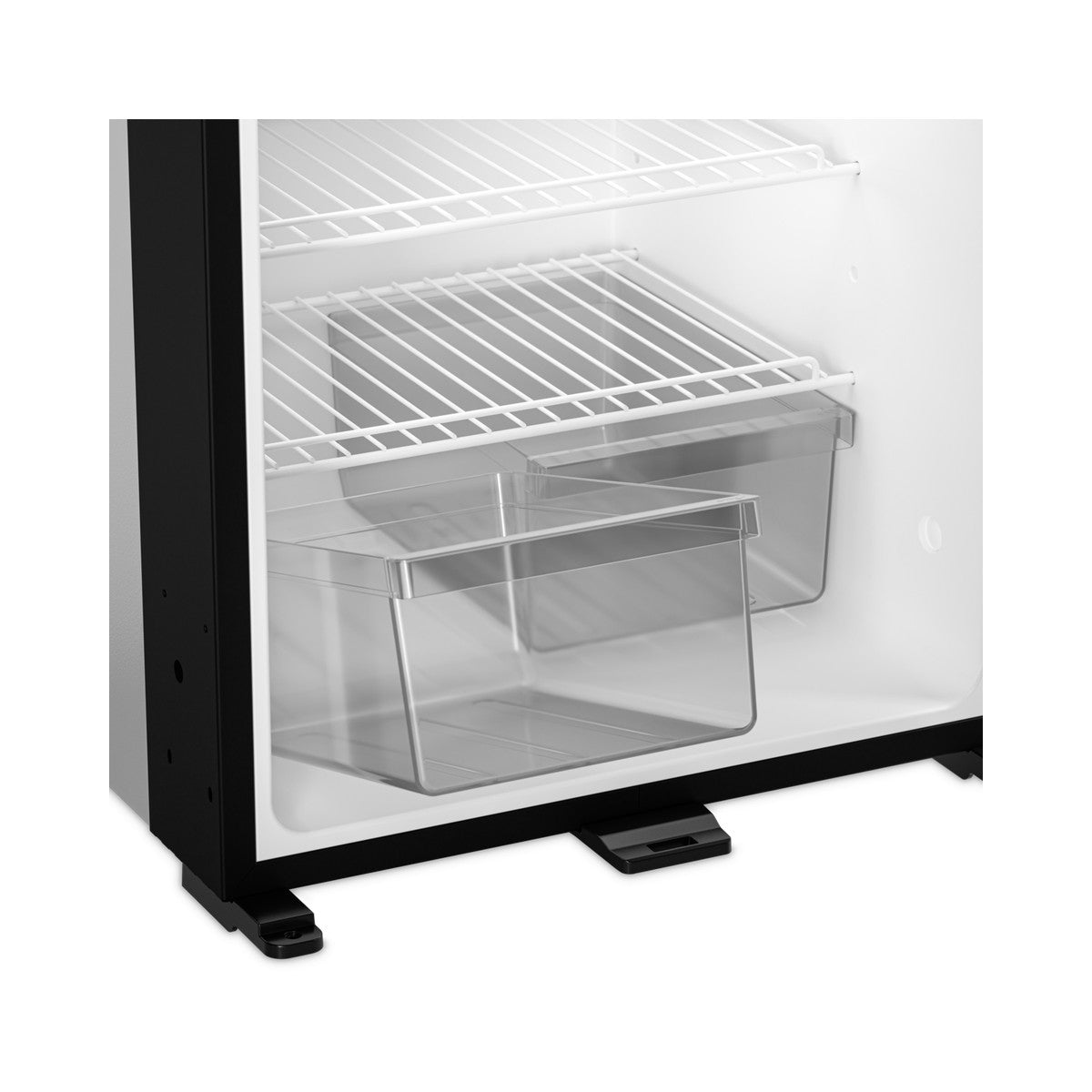

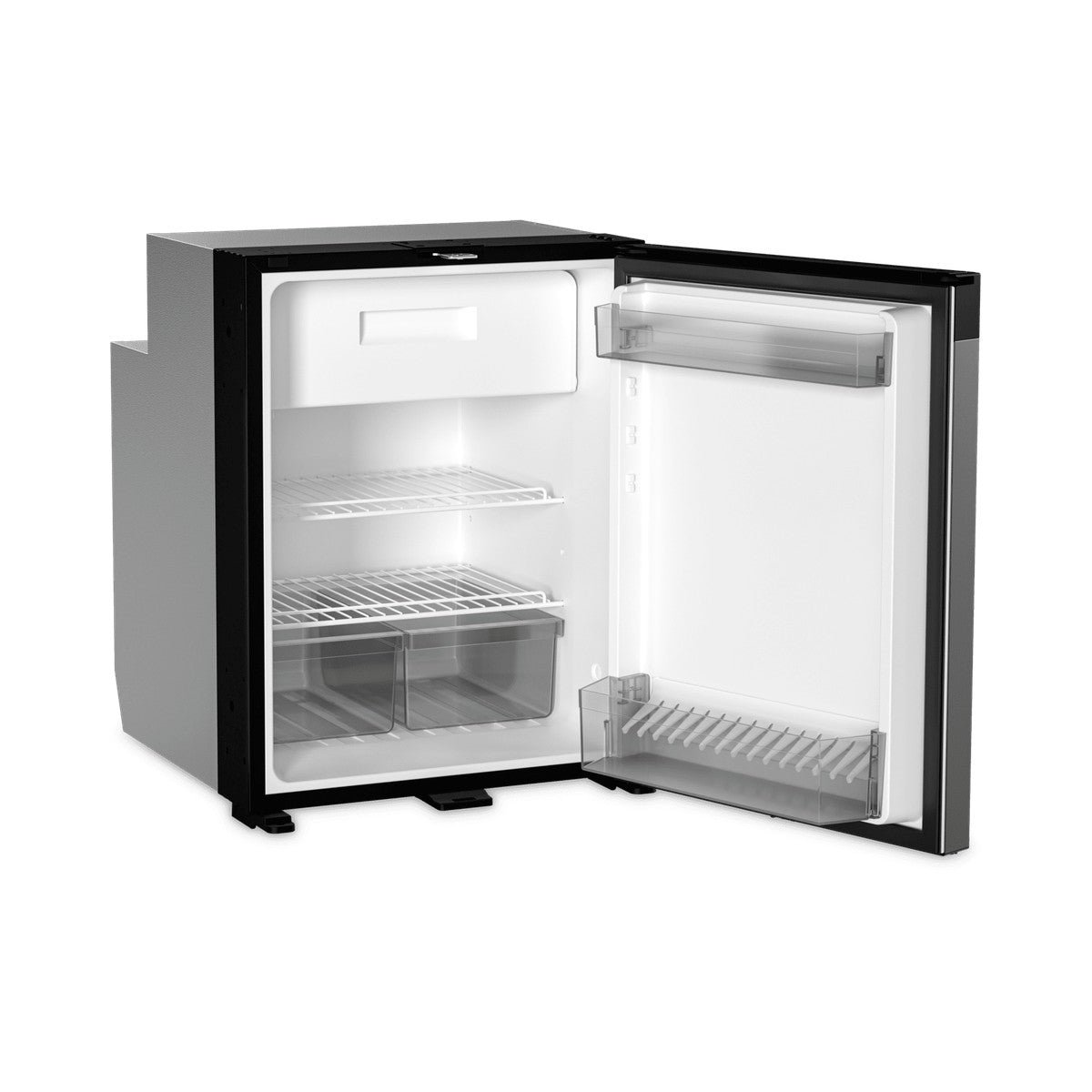

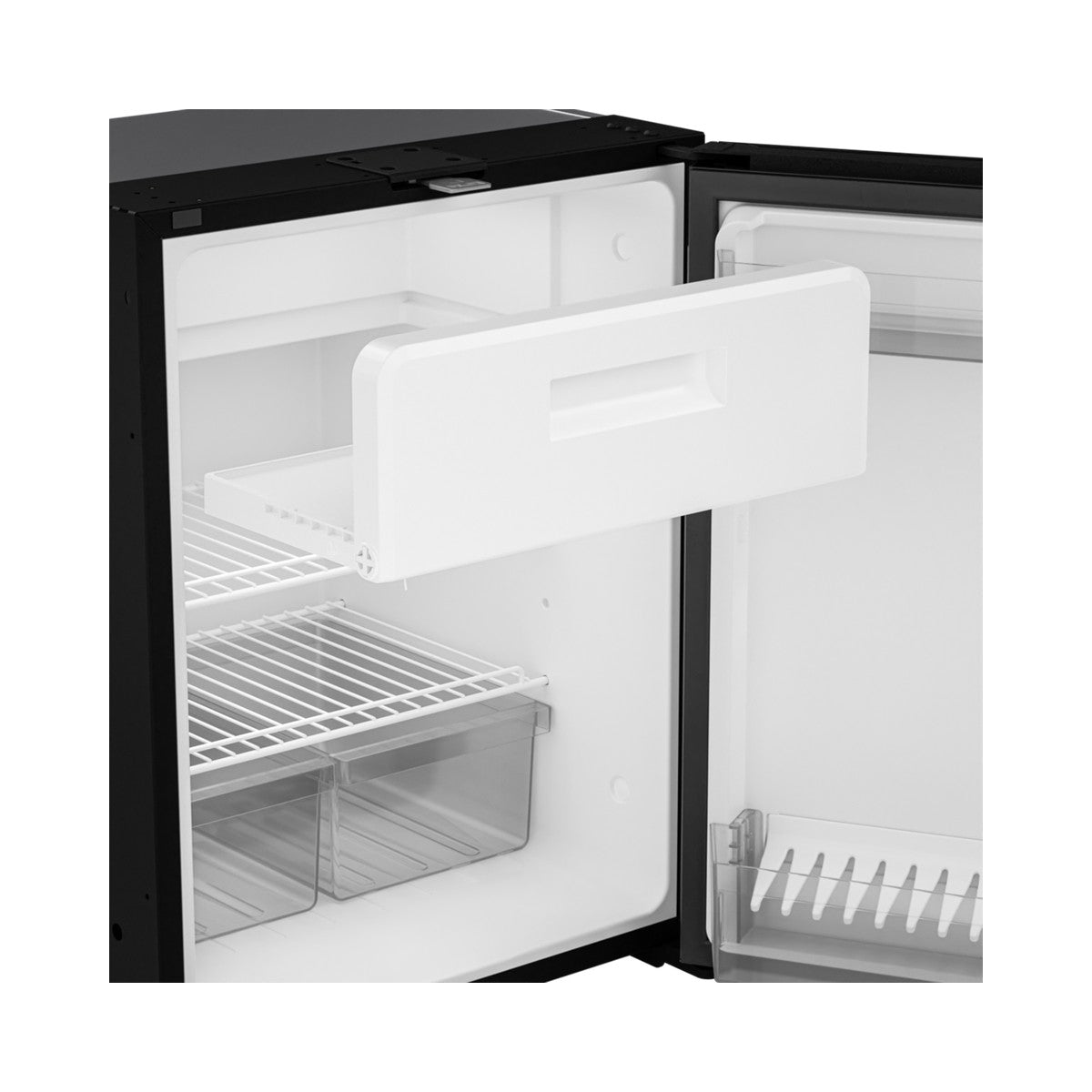

Inside there's 75 litres and the freezer box lifts straight out. Pull it and the whole cabinet becomes cold storage. Two crispers underneath keep your veg off the shelf.
At 21kg and 475mm wide it drops into most canopy and van cabinetry without a fight.
Who's it for? Blokes building a setup that stays put. If you want a fridge you lift in and out of the ute each trip, this isn't it.
Why You'll Love the NRX 80C
- 3-in-1 cooling. Run it as a fridge, a freezer, or both at once, so your bait and your beers each get what they need.
- Removable freezer box. Lift it out and all 75 litres becomes fridge space for a long trip.
- Three compressor modes. ECO, Performance and Quiet let you trade cooling speed against what your battery is doing.
- Full-width door handle. Grab it anywhere along the door and it opens, even with one hand full.
- Reversible door hinge. Hang your door left or right so it swings clear of your bench.
- Dual function locks. They hold your door shut on corrugations and double as vents when you park up.
Why You Should Consider a Dometic 12V Fridge
Dometic has built refrigeration for caravans, boats and trucks for decades. The NRX range is where that work has landed. You'll find service agents and spare parts easily here, and there's a three year warranty behind it. That matters more than the sticker on a fridge you'll run for a decade. See the rest of the Dometic range.
NRX 80C Specifications
| Total volume (IEC 62552-3) | 75L |
| Fridge type | Built-in upright compressor fridge freezer |
| Cooling | 3-in-1: fridge, freezer, or both at the same time |
| Freezer compartment | Removable |
| Operating modes | ECO, Performance, Quiet |
| Input voltage | 12/24V DC and 100-240V AC |
| Rated input power (AC) | 55W |
| Rated input current (AC) | 1A at 100V / 0.42A at 240V |
| Refrigerant | R134a |
| GWP | 1430 |
| CO2 equivalent | 0.05t |
| Insulation | PU (polyurethane) |
| Climate class (EN 62552) | T (tropical) |
| Dimensions (W x H x D) | 475 x 625 x 537mm |
| Net weight | 21kg |
| Packed size (W x H x D) | 609 x 702 x 628mm |
| Packed weight | 25kg |
| Door | Frameless, dark grey front panel, full-width handle |
| Door hinge | Reversible, fits left or right |

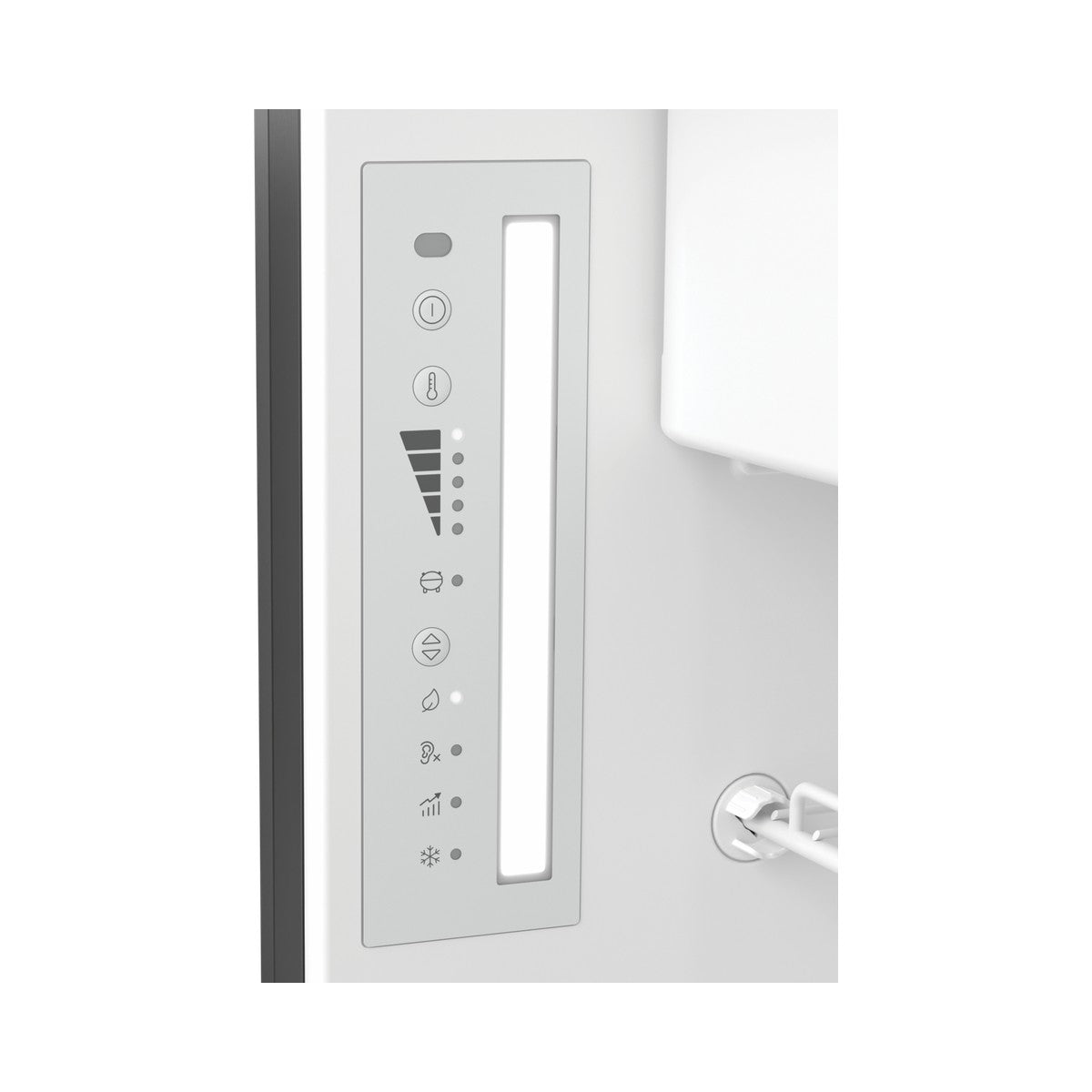

| Control panel | Touch, flush-mounted inside the cabinet with LED light bar |
| Interior | Two crispers, door rack, removable freezer compartment |
| Door locks | Dual function, also act as vents |
| Installation frame | Modular, standard or flush mount, sold separately (Dometic UFM 80SB, part 9620012880) |
| Colour | Black |
| Warranty | 3 years |
| Model | NRX1080C |
| Item number | 9620001868 |
| Barcode (EAN-13) | 9331391010370 |
What the NRX 80C draws as a caravan fridge
Your caravan fridge has to earn its power. Dometic rates the NRX 80C at 55W on 240V mains. That's your compressor working, not a running average, because it cycles on and off as the cabinet holds temperature. Off 12V the draw depends on how hot it is, how full you've packed it and how often the door opens. Quiet mode slows your compressor down. ECO mode is the one to use when you're camped and living off your battery.

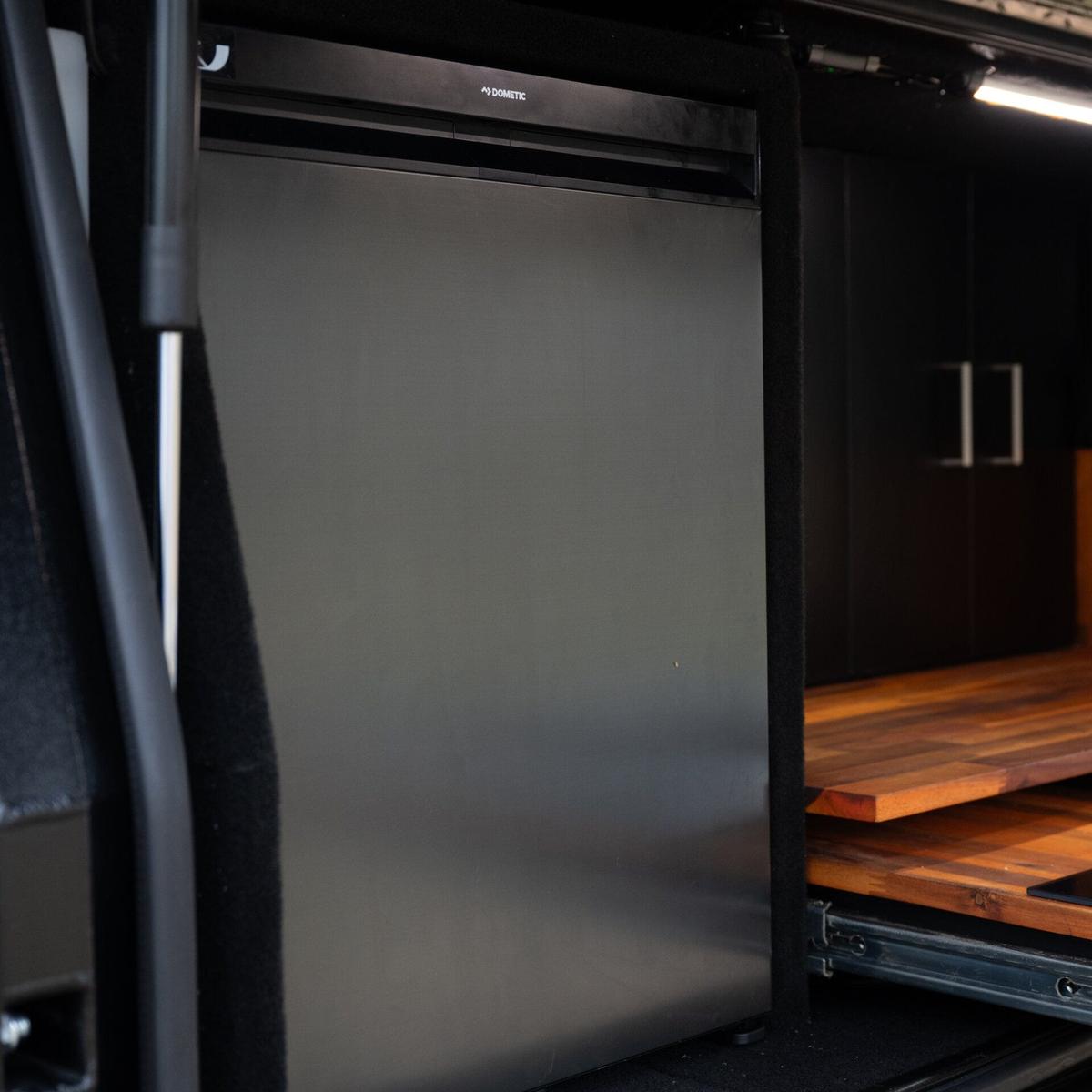

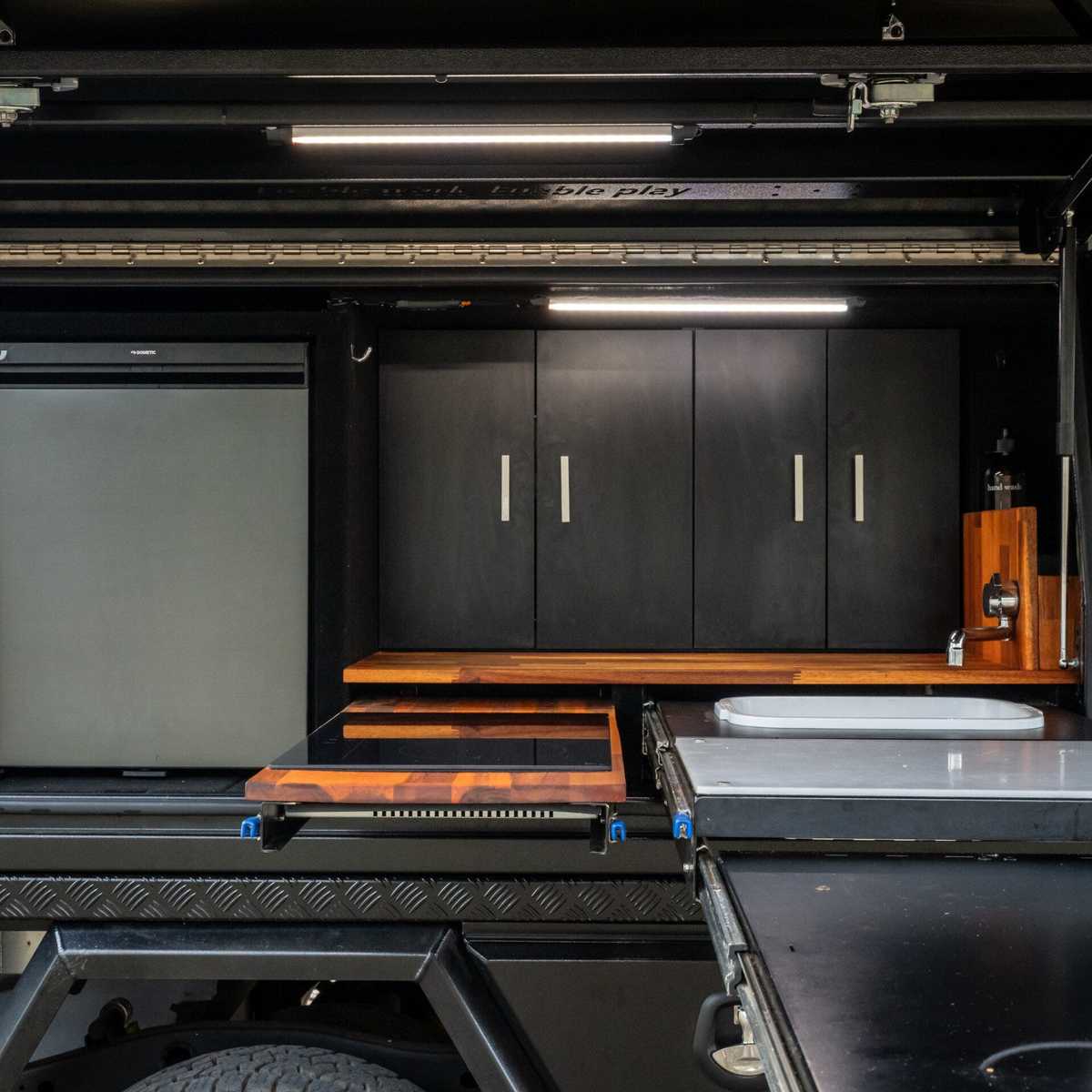

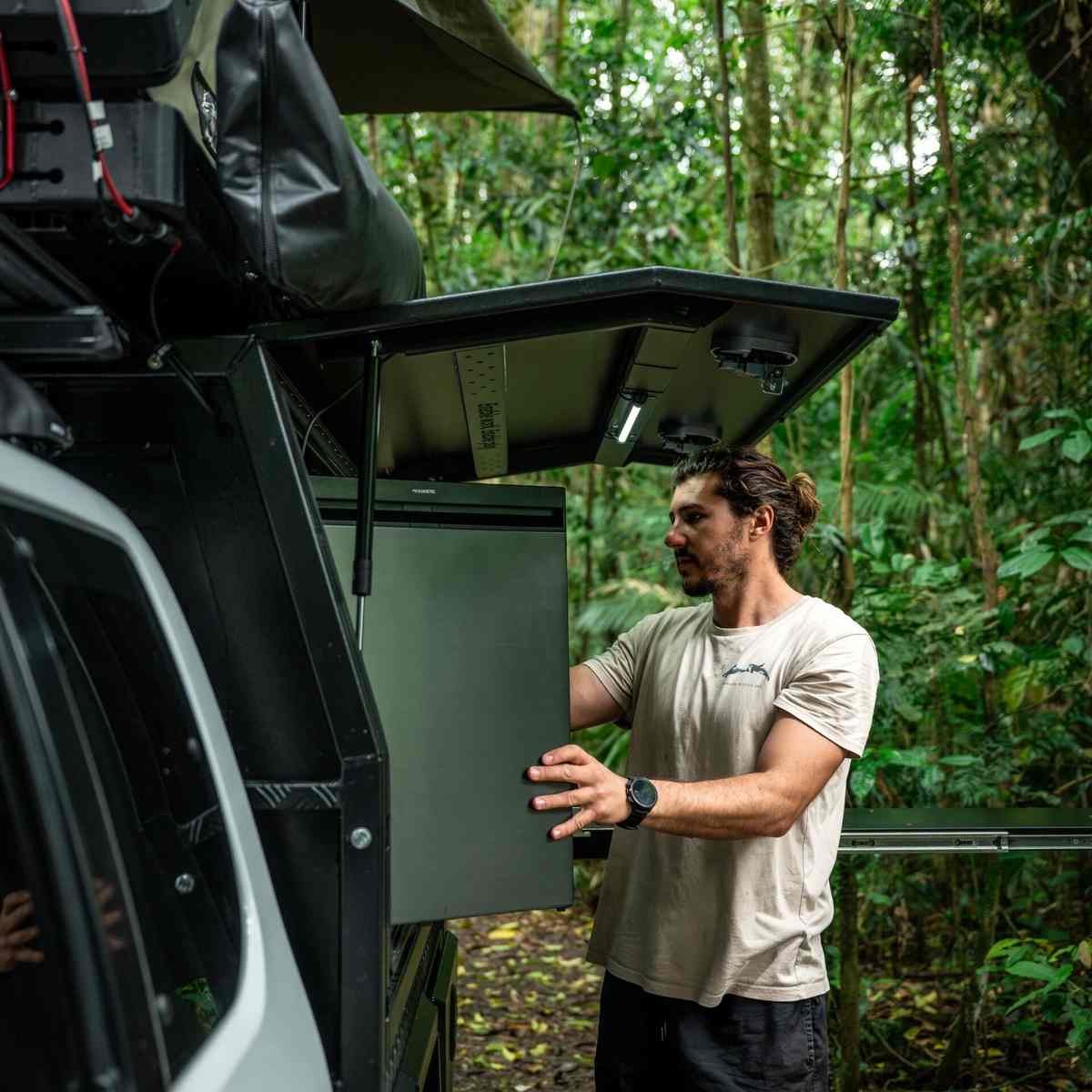

Fitting the NRX 80C into a caravan or canopy
The cabinet is 475mm wide, 625mm high and 537mm deep. The rear side is bevelled, so it tucks in tighter than the numbers suggest. You need airflow behind it, and Dometic sells a modular frame for a standard or flush mount finish. The door hinge swaps sides, so measure your walkway before you decide which way it swings.
What fits inside the 75 litre NRX 80C

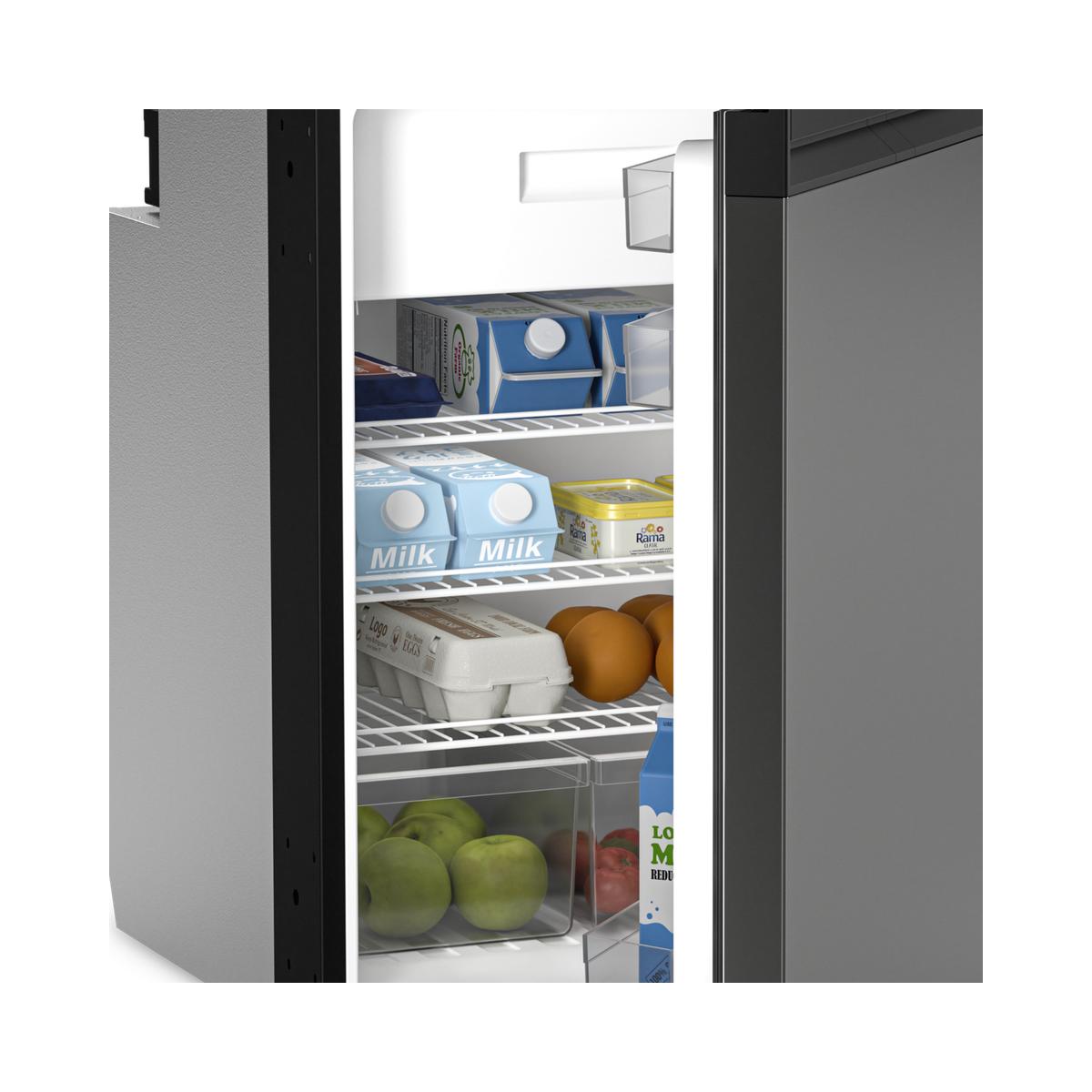

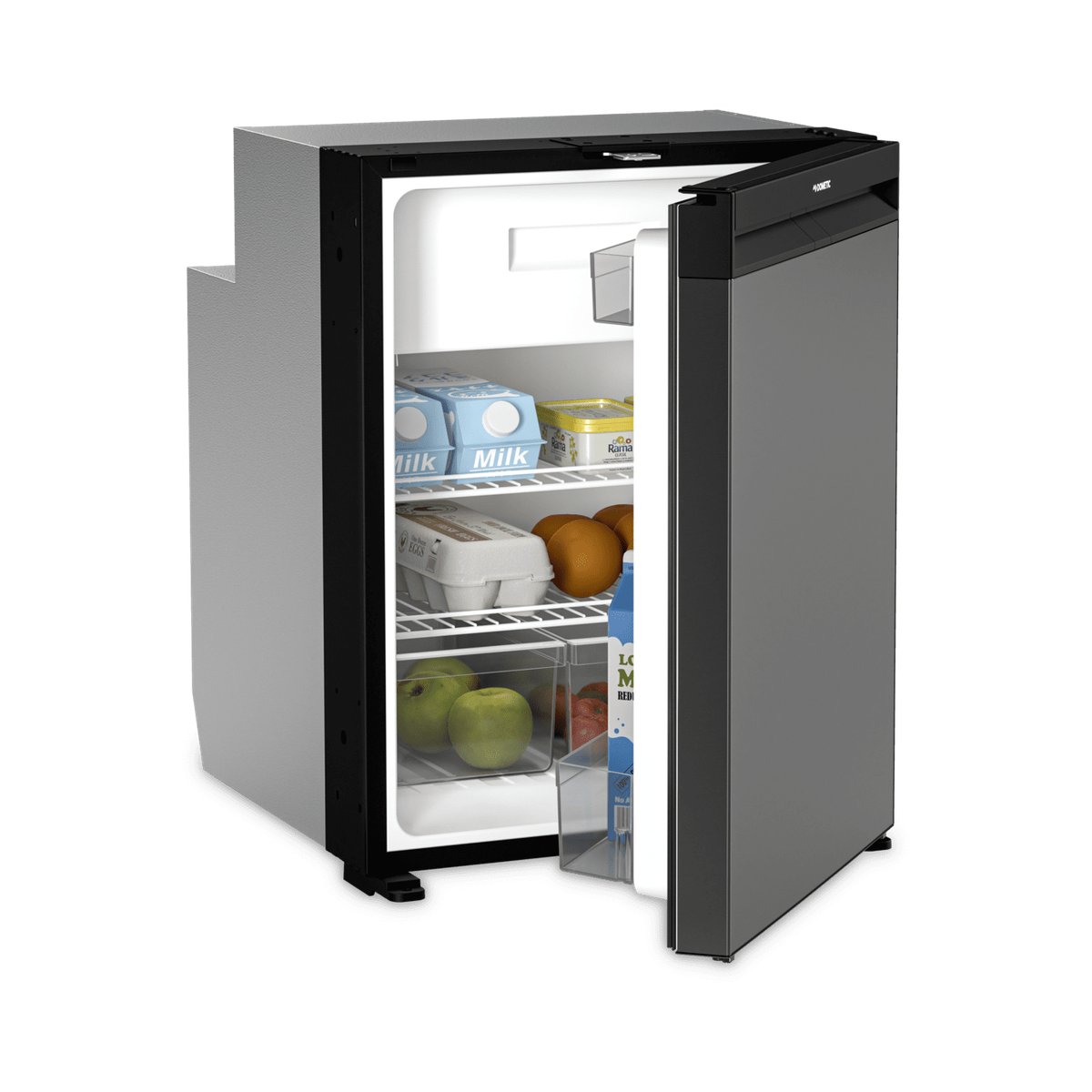

A 75 litre upright suits a couple or a small family away for a week. You get proper shelves, a door rack and two crispers, so your food sits how it does at home. Nothing rolls around when you're on corrugations. That's the real difference between an upright and a chest fridge.
Running the NRX 80C off a power station
Running yours off a battery setup rather than mains? Have a look at our power for camping range. A compressor fridge is the load most people size their system around, so work that out first and the rest gets easy.
What's Included
- Dometic NRX refrigerator
- Drain elbow
- Short operating manual (SOM)
- Installation manual (INM)
What's Not Included
- Installation frame (standard or flush mount)
- 12V or 24V wiring, fuse and connectors
- 240V lead
- Cabinet or cut-out trim
- Power station or battery
It ships as a built-in unit, so the frame, the wiring and the cabinet are your side of the job. If you want the matching Dometic flush mount frame added to your order, ring the store and we'll sort it. Sizing the battery? Start with power for camping.
Not Sure Which Caravan Fridge Suits You?
If you're kitting out a small van or a ute canopy and space is tight, the 55 litre NRX 60C does the same job for less money and less room. Going the other way, the 113 litre NRX 115C is the pick for a family that shops once a fortnight. The honest catch on all of them is the install. This is a built in fridge, so you need a cabinet, ventilation and 12V wiring done properly. Dometic backs it with a three year warranty, and your rights under Australian Consumer Law sit alongside that. Browse the rest of our RV fridges.
