The Owner's Insights on the EcoFlow 500W Alternator Charger
Five hundred watts off your alternator is roughly five times what a cigarette lighter socket gives you. On a three hour drive that's about 1,500Wh back into your station, which is the difference between arriving with a full battery and arriving with a nearly flat one.
It does three jobs. Charging your station while you drive is the main one. It also runs in reverse at 500W, feeding your vehicle battery from the station, which is a jump start from the gear you're already carrying. And it holds a 100W maintenance charge to keep a starter or RV battery healthy on a long trip.
It wires to your vehicle battery through a 125A fuse, so it's a proper install rather than a plug-in. If you're not comfortable working near your starter battery, get an auto electrician onto it. And if 500W isn't enough, there's an 800W version.
Why You'll Love the EcoFlow 500W Alternator Charger
- 500W while you drive. Roughly 1,500Wh back in a three hour trip.
- Five times a cigarette lighter. A day's driving actually fills your battery.
- Reverse charging at 500W. Feed your vehicle battery when the rig won't start.
- 100W maintenance mode. Keeps your starter or RV battery healthy on a long haul.
- GaN construction. Runs cooler and smaller than the old switching designs.
- Four protections built in. Reverse polarity, overcurrent, short circuit, over/undervoltage.
- 12V or 24V vehicles. SUVs, RVs and 24V trucks all covered.
- 2-year warranty. Backed by EcoFlow with support here in Australia.
Why You Should Consider an EcoFlow Alternator Charger
EcoFlow build some of the fastest-charging portable power gear going, and this is the accessory that fixes the slowest part of touring with a station. It carries a 2-year warranty. See the rest of the EcoFlow range.
EcoFlow 500W Alternator Charger Specifications
| Model | EF-MS-H02-1 |
| Charging input | 12V/24V (11-31V), 45A max |
| Charging output | 40-60V, 500W max; 24V, 360W max |
| Reverse charging output | 13.8V or 27.6V, 500W max |
| Battery maintenance output | 13.8V or 27.6V, 100W max |
| Fuse rating | 125A |
| Protections | Reverse polarity, overcurrent, short circuit, over and undervoltage |
| Compatibility | EcoFlow RIVER and DELTA stations, and XT60 stations |
| Dimensions | 242 x 194 x 35mm |
| Weight | 5.7kg |
| Warranty | 2 years |
Why 500W changes how you tour
A 12V cigarette lighter socket gives you about 100W. On a three hour drive that's 300Wh, which barely touches a 1,000Wh station. This gives you 500W, so the same drive puts back around 1,500Wh. The practical difference is that you stop planning the trip around charging: you drive, you arrive, the station is full, and solar becomes a top-up rather than your only option through a cloudy week.
500W or 800W: which one do you need?
It depends on your station and your driving. If you run a RIVER or a smaller DELTA and you do a few hours between camps, 500W refills it comfortably. If you run a big DELTA with 2,000Wh or more, or you only drive an hour between spots, the 800W version gets you there faster. The 500W is also lighter on your alternator, which matters on an older vehicle. Ring the store on 03 7056 6732 and we'll match it to what you drive and what you run.
The reverse charging trick
Most alternator chargers push power one way. This one runs in reverse, taking power from your station and putting up to 500W back into your vehicle battery at 13.8V or 27.6V. That's a jump start using the battery you already brought, which is worth knowing about the morning your starter battery is flat somewhere with no phone reception. The gentler 100W maintenance mode keeps a battery topped up rather than reviving it.
What the install involves

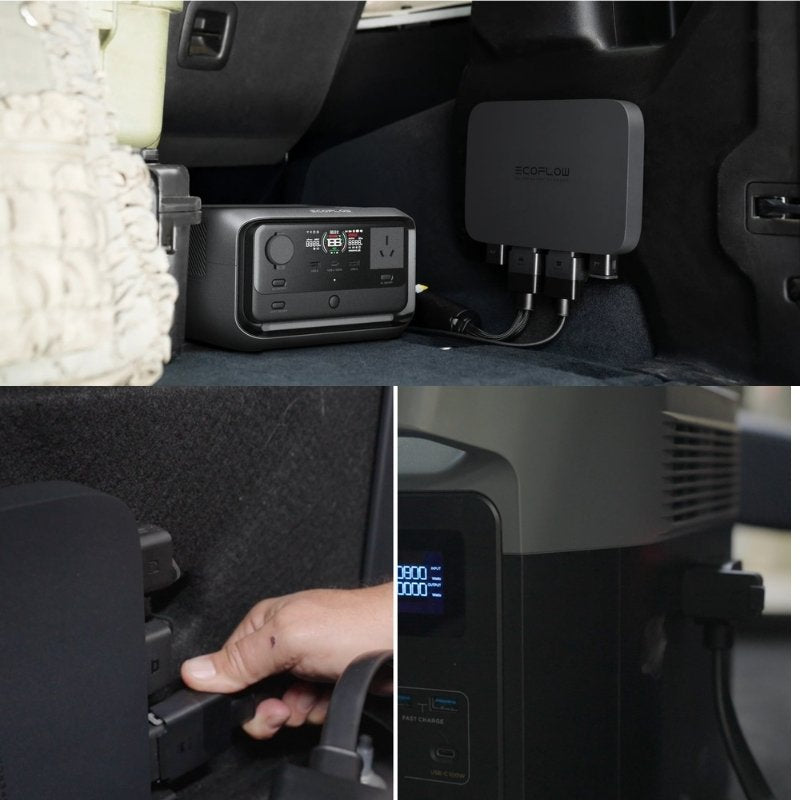

It connects to your vehicle battery, not a socket, and it draws up to 45 amps on the 12V side through a 125A fuse. That means a proper cable run and the fuse fitted correctly at the battery end. Plenty of people do it themselves in an afternoon if they're handy under a bonnet. If you're not, it's a short job for an auto electrician and worth paying for. Get the fusing right whichever way you go.
Will it work with your power station?

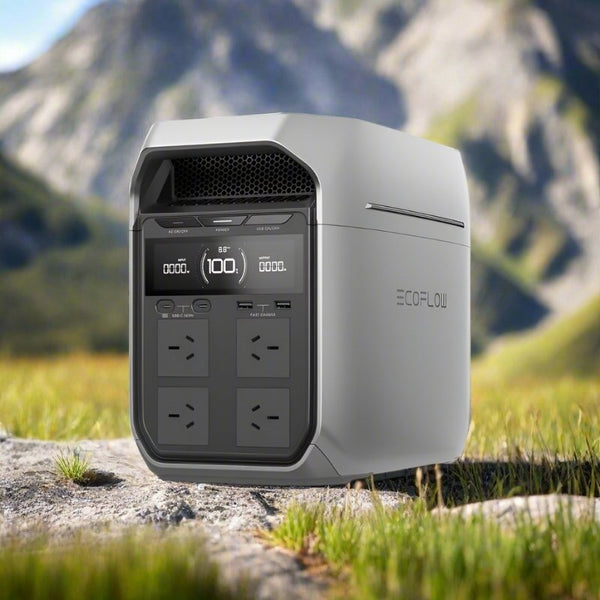

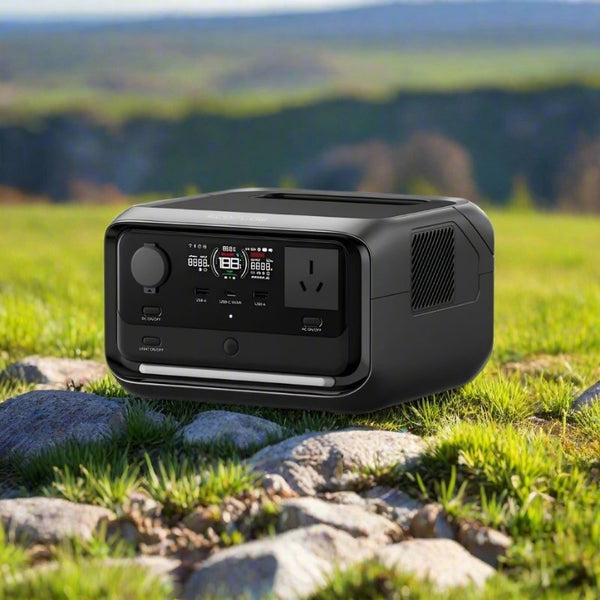

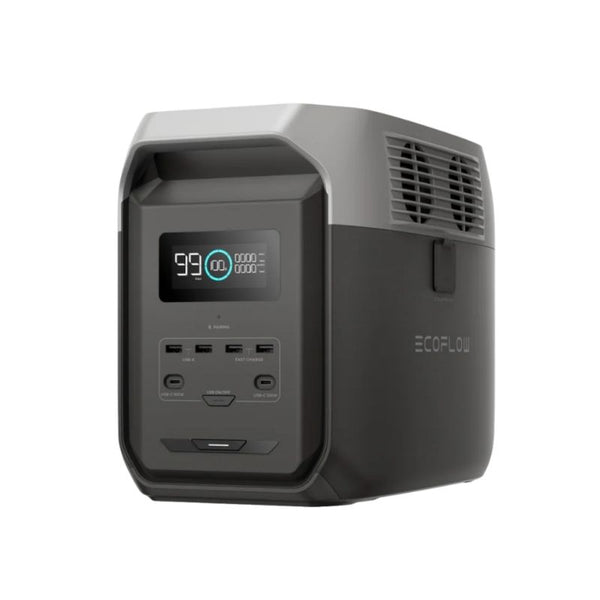

It's built for the EcoFlow RIVER and DELTA series, and it works with XT60 stations more broadly. If you're running a DELTA 3, a RIVER 3 Plus or similar, it plugs straight in. If your station is another brand, check the input before you order: ring the store on 03 7056 6732 with the model and we'll tell you what fits, or see the power station range.
What's Included
- EcoFlow 500W alternator charger
- Installation cables and fittings
- Manual and warranty card
- 2-year warranty
What's Not Included
- A power station to charge
- An auto electrician's time, if you'd rather not wire it yourself
- Adapters for non-EcoFlow stations
The cables and fittings for the install come with it. What's not included is the labour, and if you're not confident working near your starter battery, that's money well spent.
Not Sure Which Alternator Charger Suits You?
The 500W Alternator Charger suits you if you tour with an EcoFlow station and you're tired of arriving with it as flat as when you left. It's the wrong pick if you barely drive between camps, since it only works while the engine is running, or if you run a big station and want it filled faster, where the 800W version is the answer. It carries a 2-year EcoFlow warranty. Not sure it suits your station or your vehicle? Call the store on 03 7056 6732 and we'll check it before you buy.
