Hyundai DHY8700SE-LRS 8kVA Silenced Diesel Generator
SMALL AUSSIE BUSINESS
Chat direct to the owner
GENERATOR SPECIALISTS
Let us find your perfect model and size
30 DAY RETURNS
Change your mind? No Dramas.
The Owner's Insights on the Hyundai DHY8700SE-LRS 8kVA Silenced Diesel Generator
This is the compact end of the silenced diesel range and it's the one most properties actually need. 5,800W continuous behind a canopy at 72 dB, with two-wire auto start so it can fire itself up when your mains or your solar drops out.

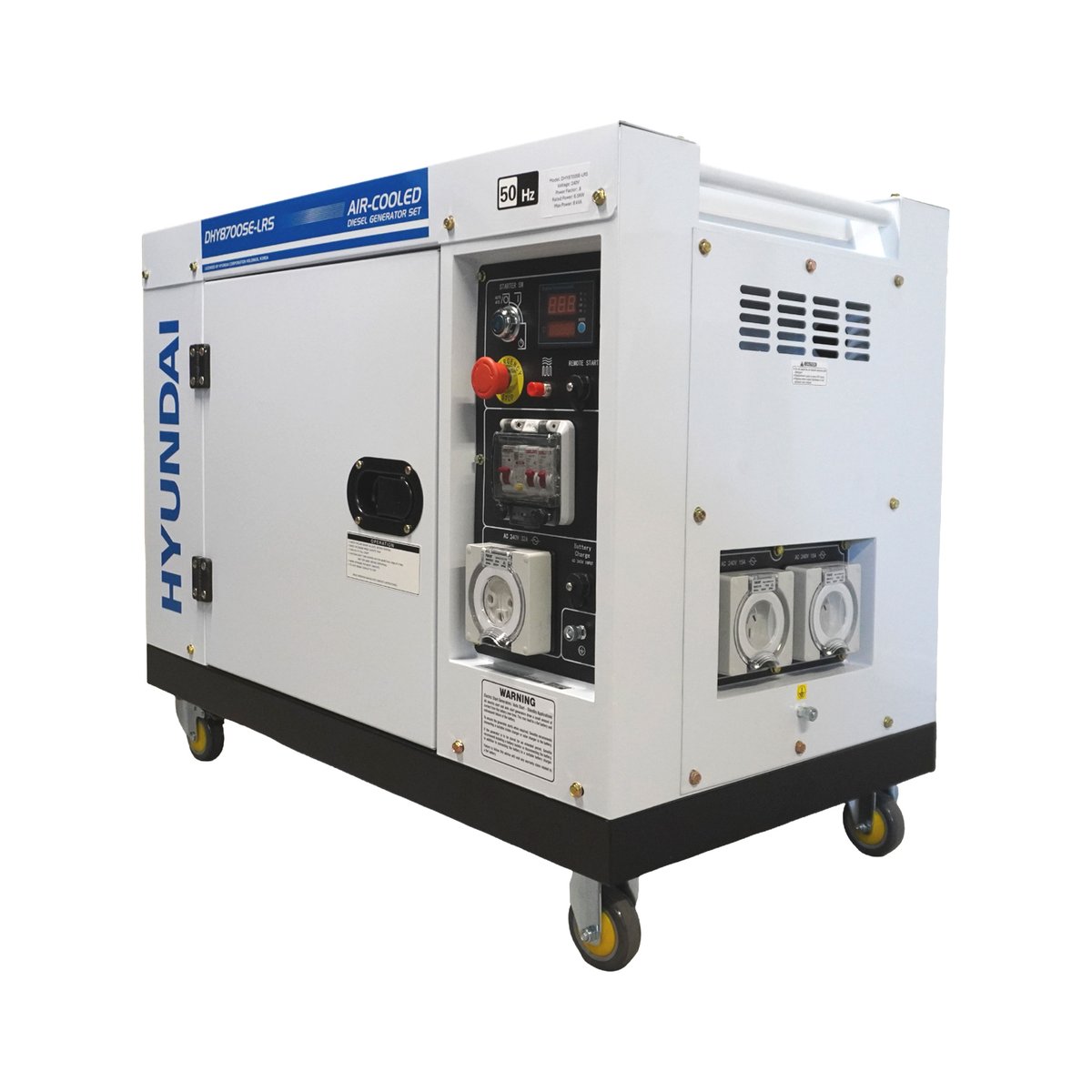

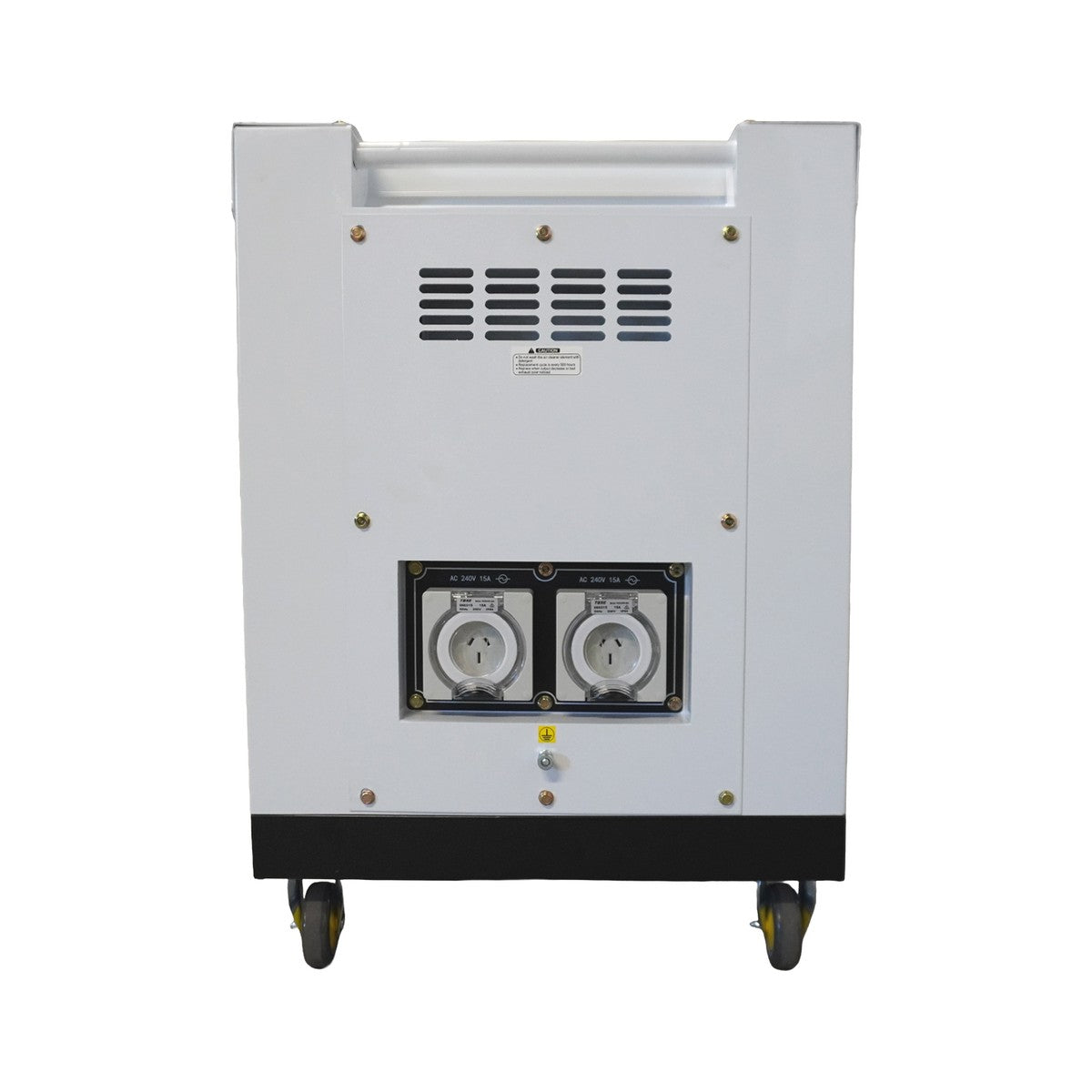

The outlet panel is the same as the bigger unit: a 32A 240V socket alongside two 15A sockets, so you can draw a real share of the output through a plug instead of hard-wiring everything.
Two things to plan for. It's 161kg, so where it lives is a decision you make before it arrives. And Hyundai state plainly it isn't for prime power: this runs when the mains are out, not week in, week out.
Why You'll Love the Hyundai DHY8700SE-LRS 8kVA Silenced Diesel Generator
- 5,800W rated, 6,400W surge. Your fridge, lights, pumps and hot water through an outage.
- 72 dB silenced canopy. You can talk beside it without shouting.
- 17 litre tank, 9 hours at 75%. A full day and a night without refuelling.

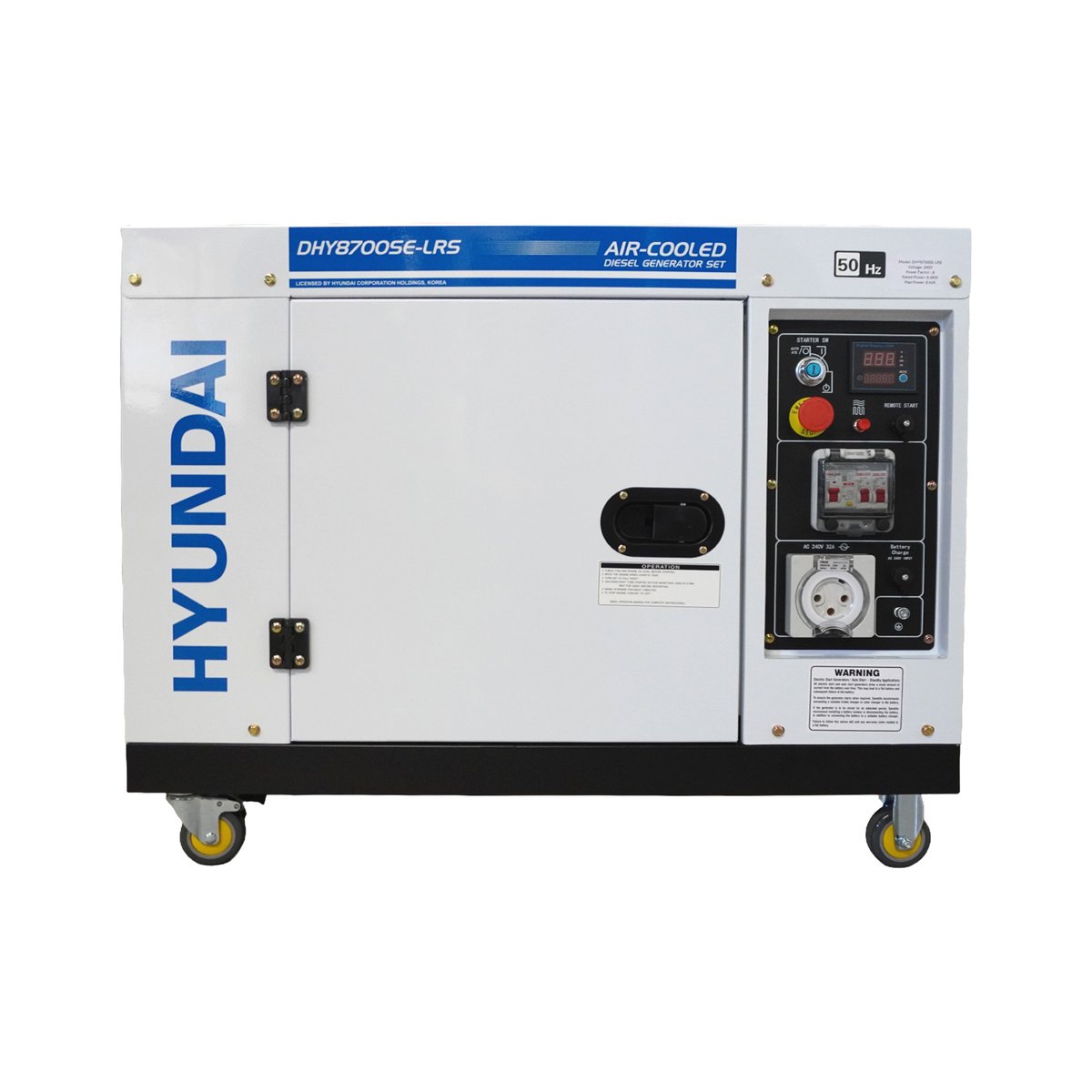

- Two-wire auto start. Your solar or transfer switch starts it for you.
- 1 x 32A and 2 x 15A outlets. Real power through a plug, not just leads.
- AVR alternator. Steadier voltage as your loads come and go.
- Diesel, not petrol. Better economy under load and a longer engine life.
- 990mm long. The compact one in the silenced diesel range.
Why You Should Consider a Hyundai Diesel Generator
Hyundai's generator range is distributed in Australia by Genelite, and the DHY8700SE-LRS is their compact silenced long-run diesel for standby duty. See the rest of the generator range.
Hyundai DHY8700SE-LRS 8kVA Silenced Diesel Generator Specifications
| Model | DHY8700SE-LRS |
| Type | Silenced canopy diesel generator |
| Rated (running) power | 5,800W |
| Max (surge) power | 6,400W (8kVA) |
| Alternator | AVR (automatic voltage regulator) |
| Engine | Hyundai HYD500E |
| Starting | Electric, or two-wire auto |
| Fuel type | Diesel |
| Fuel tank capacity | 17L |
| Run time | 9 hours at 75% load |
| Phase and voltage | Single phase, 240V |
| Outlets | 1 x 32A 240V, 2 x 15A 240V |
| Noise rating | 72 dB at 7m |
| Dimensions | 990 x 565 x 770mm |
| Weight | 161kg |
| Warranty | 12 months or 500 hours limited |
Standby, not prime power: what that means for you
Hyundai are clear on their own spec sheet that this generator isn't intended for prime power applications, and it's worth understanding what that rules out. Standby means it runs when the mains fail, or when your solar batteries call for a top-up: hours at a time, not days on end. Prime power means it's the only source and runs constantly, which is a different class of machine with a different service schedule and a much bigger price. If you're building a permanent off-grid setup with no mains at all, ring the store on 03 7056 6732 before you order this one.
Rated 5,800W, surge 6,400W: size against the smaller number
The headline is 8kVA, but the numbers you size against are 5,800W continuous and 6,400W on surge. Surge covers the moment a pump, a compressor or an air conditioner starts. Continuous is what it holds all day. On a house that's the fridge, lights, water pump, the modem and hot water comfortably. What it isn't is a house with air conditioning and an oven going. Add up what runs at the same time, use the running figure for each item, and keep the total under 5,800W with a margin.
Why the two-wire auto start matters off-grid

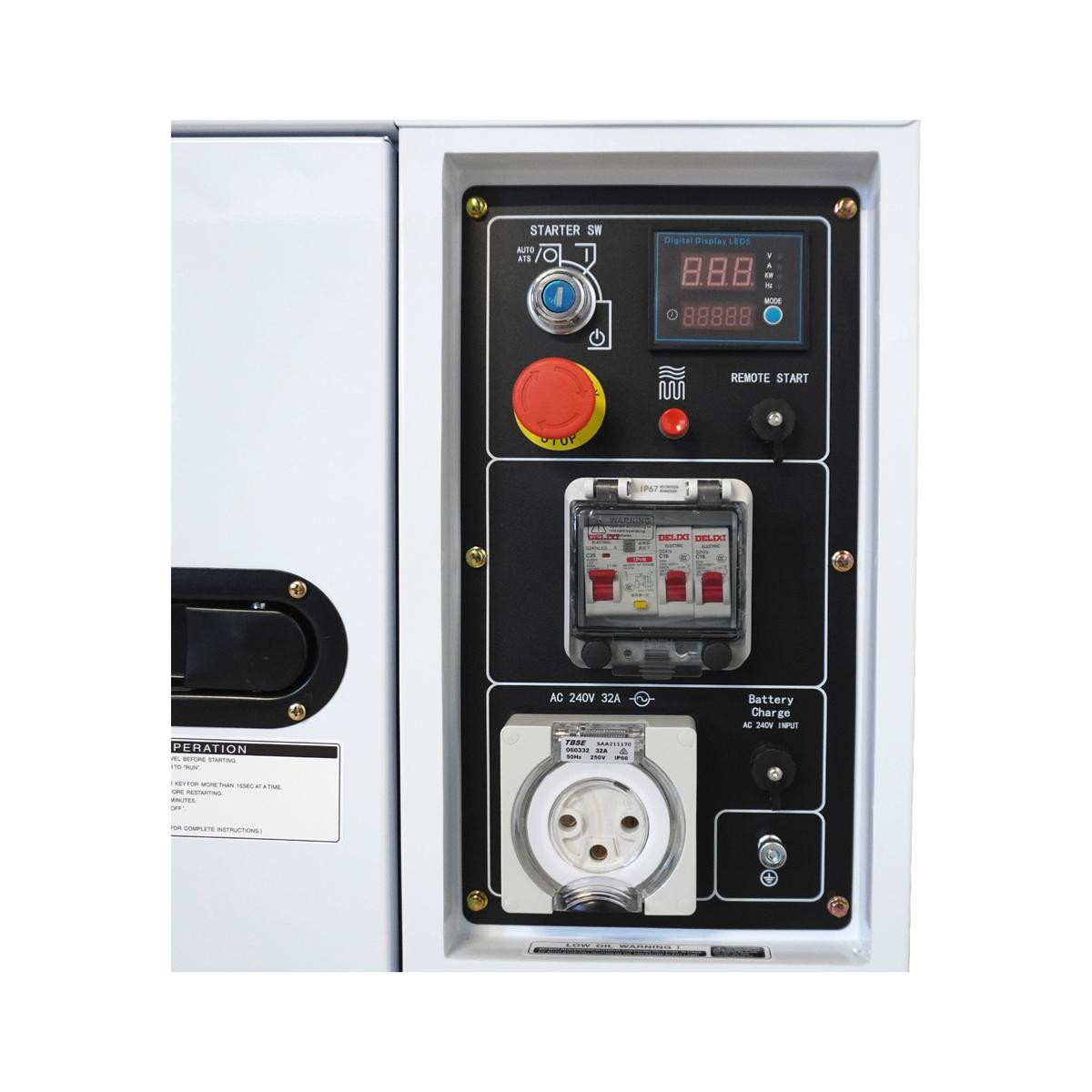

A two-wire contact closure starts the generator, which means your inverter, battery management system or automatic transfer switch does the starting instead of you. On a rural property that's the difference between a bad solar week you never notice and one where somebody walks out to a shed at 10pm. Wiring the contact to your system is a job for whoever installed it, and it isn't included.
Is 8kVA enough, or do you want the 10kVA?
Work off what runs at once, not what you own. If your list is a fridge, lights, pumps, hot water and a few power points, 5,800W covers it with room. If it includes air conditioning, a workshop or a big pump starting under load, the 10kVA DHY10000SE-LRS gives you 7,250W continuous and a bigger tank. The step up is real money, so it's worth adding your loads up properly first.
Where 161 kilos is going to live

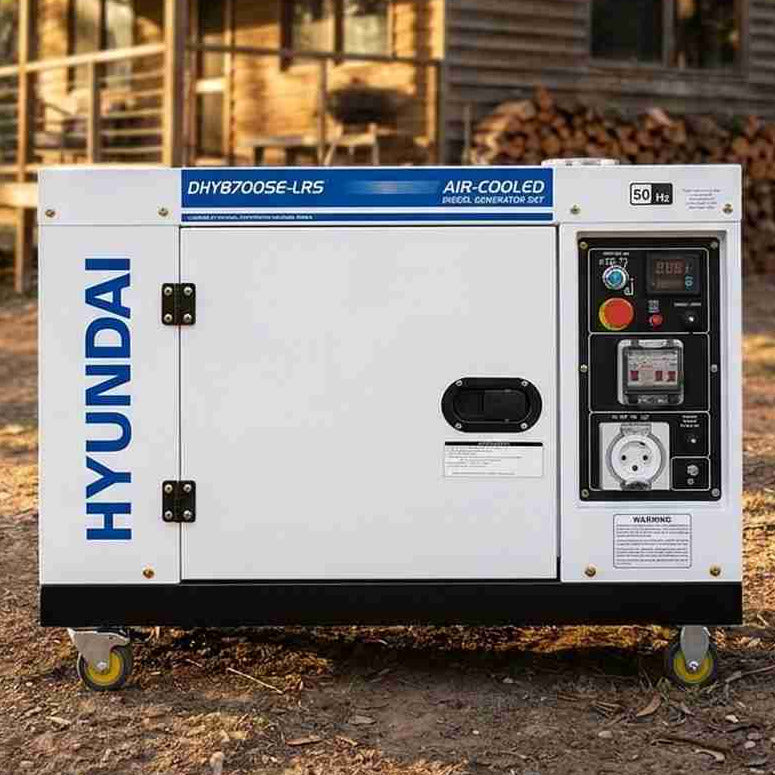

Sort this before it arrives rather than on the day. It's 990mm long and 161kg, so getting it off the truck needs a forklift, a hoist or a tailgate loader. Most people put it on a concrete pad beside a shed and leave it there, which suits a standby unit fine. If it needs to move between properties, budget for a trailer. Not sure it's the right size? Try the Generator Finder, or ring the store on 03 7056 6732.
What's Included
- Hyundai DHY8700SE-LRS silenced diesel generator
- AVR alternator
- Two-wire auto start capability
- 1 x 32A and 2 x 15A 240V outlets
- 17 litre long-run fuel tank
- 12 month or 500 hour limited warranty
What's Not Included
- Diesel fuel
- Extension leads and a 32A lead
- The wiring between your system and the auto start contact
- A changeover switch and the electrician to fit it
- A trailer, forklift or hoist to move it
The 17 litre tank runs it for about nine hours at 75% load. If you're backing up a house you need a licensed electrician and a changeover switch: never backfeed through a wall socket. The 32A outlet also needs a matching lead, which most people don't already own.
Not Sure Which Diesel Generator Suits You?
The DHY8700SE-LRS suits you if you want a quiet, self-starting standby generator for a house, a shed or an off-grid solar setup, and your loads sit comfortably under 5,800W. It is the wrong pick if you need prime power, where Hyundai say plainly it is not the machine, or if you run air conditioning and a workshop, where the 10kVA DHY10000SE-LRS gives you more headroom. Try the Generator Finder, or call the store on 03 7056 6732 and we will size it against your property.
Hyundai DHY8700SE-LRS Spec Sheet
Download the Hyundai DHY8700SE-LRS 8kVA Silenced Diesel Generator spec sheet for full technical details and setup instructions.
