The Owner's Insights on the Purple Line Quattro QuicKEY Caravan Mover
The QuicKEY solves the one real objection to caravan movers on an off-road van: they hang below the chassis and they're the first thing a rock finds. This one comes off in seconds. Slip the motors off, drop the pin in your toolbox, and your clearance is back to standard.
That also means the weight comes off. Thirty-seven kilos including the fit kit stays in the shed on the trips you don't need it, which matters if you're already arguing with your payload.
Putting it back on is the same job in reverse: slip them on, insert the pin, plug them in. It's a two-minute exercise, not a workshop visit. Everything else is the standard Quattro drivetrain, rated to 1.5 tonnes on a 25% incline with two motors.
Why You'll Love the Purple Line Quattro QuicKEY Caravan Mover
- Removable in seconds. Take the motors off before a rough track and get your clearance back.
- Off-road friendly. Nothing hanging under the chassis when you're on the corrugations.
- 37kg comes off with them. Leave them home on the trips you won't need them for.
- 1.5 tonnes on a 25% incline. Two motors handle a serious van on a serious driveway.
- Single or twin axle sets. Two motors or four, depending on how your van is built.
- Handheld remote. Park it exactly where you want on your own, no spotter.
Why You Should Consider a Purple Line Caravan Mover
Purple Line have been building caravan movers for years, and the QuicKEY is the patented quick-release version of their Quattro drivetrain. See the rest of the Purple Line range.
Purple Line Quattro QuicKEY Specifications
| Operational voltage | 12V DC |
| Average current consumption | 25A |
| Maximum current consumption | 76A |
| Power output | 585kg |
| Maximum speed | 12cm per second |
| Safe working load (2 motors) | Up to 1.5 tonnes on a 25% incline |
| Minimum caravan or trailer width | 1,800mm |
| Maximum caravan or trailer width | 2,500mm |
| Weight | 37kg including fit kit |
| Configurations | Two motors (single axle) or four motors (twin axle) |
| Mounting | Patented QuicKEY quick release |
| Model | Quattro QuicKEY |
Why removable matters on an off-road van
A standard caravan mover bolts to the chassis and stays there. On a bitumen tourer that's fine. On a van that goes down corrugated tracks and over washouts, the motors sit low, they collect rocks, and they're the thing you damage. The QuicKEY comes off in seconds with a pin, so before you turn off the blacktop you pull them, stow them, and your underside is clean again. That's the whole reason this version exists.
QuicKEY or standard Quattro: which do you need?
If your van lives on sealed roads and caravan parks, the standard Quattro Titanium does the same job for less and it's lighter at 29kg. The QuicKEY is what you buy when the van goes off-road, or when you want to leave 37kg at home on the trips that don't need it. You're paying for the quick release, not for more power: both are rated to 1.5 tonnes on a 25% incline with two motors.
Will it move your van?
Two motors are rated to shift up to 1.5 tonnes on a 25% incline with 585kg of output, which covers most single-axle vans on most driveways. Check your van's ATM against that and be honest about the slope. It fits vans between 1,800 and 2,500mm wide. If your van has two axles, get the four-motor set: it's about how the van is built, not about preference.
What it does to your battery
It runs on 12V and pulls around 25 amps average, peaking at 76 amps when it's working against a slope. That's a real load, so it wants a healthy battery and decent cable behind it. A few minutes of manoeuvring won't flatten a good setup, but a battery you've been meaning to replace will make itself known the first time you use it on a hill.
What's Included

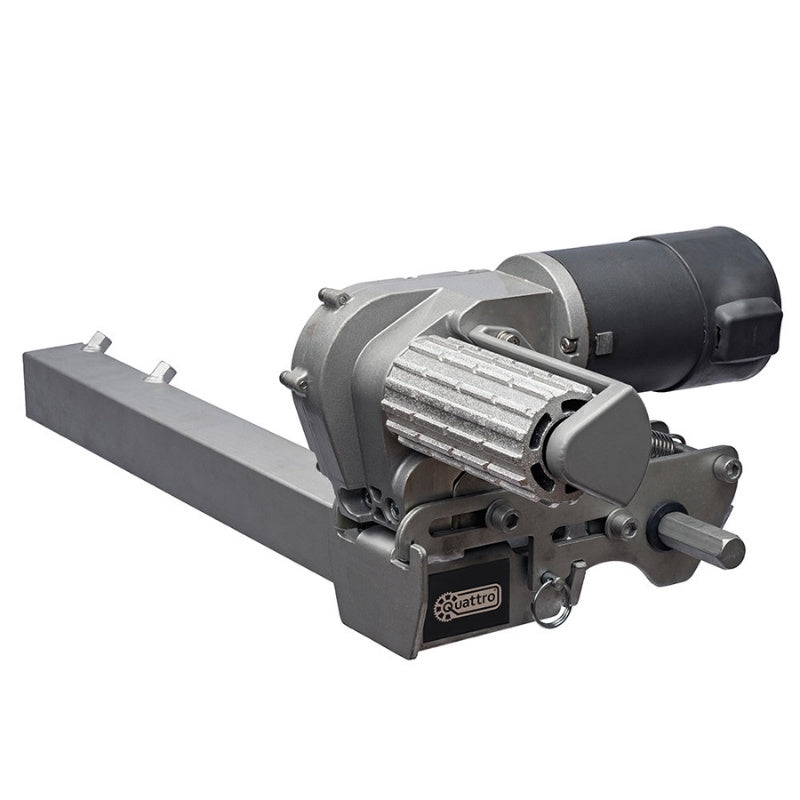

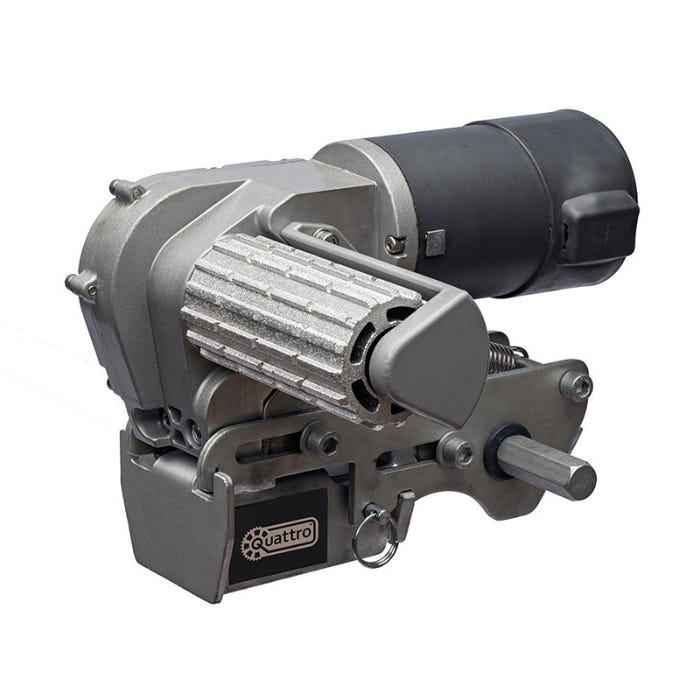

- Purple Line Quattro QuicKEY motors (two or four, by variant)
- QuicKEY quick-release mounts and pins

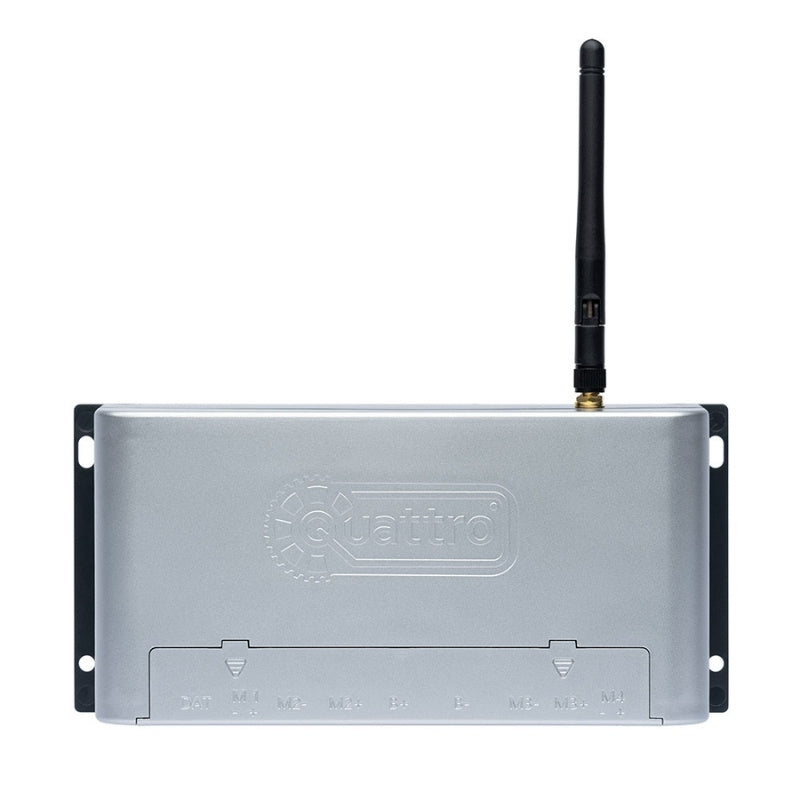

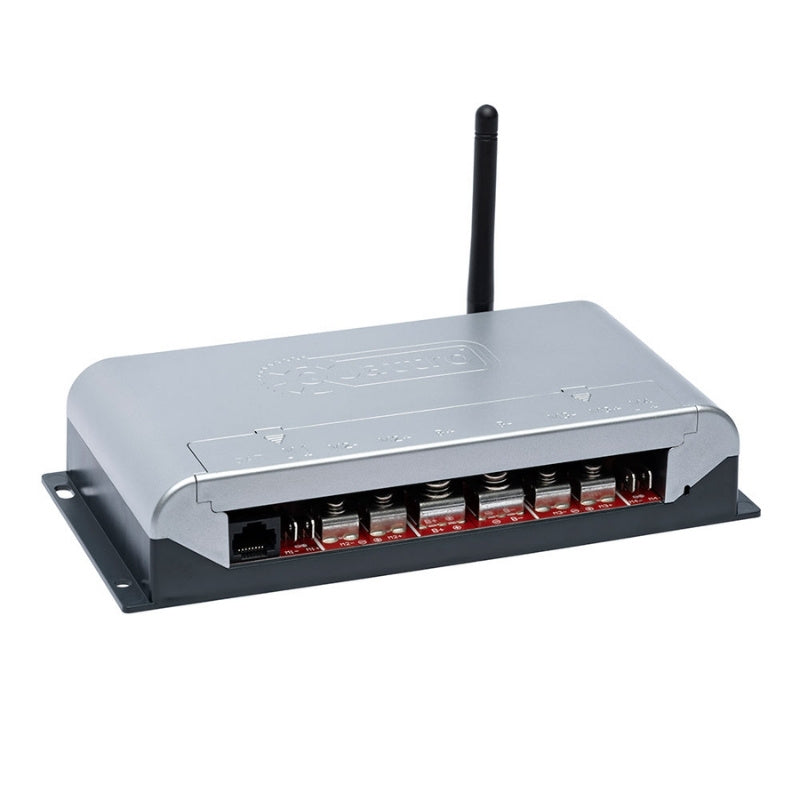

- Control unit

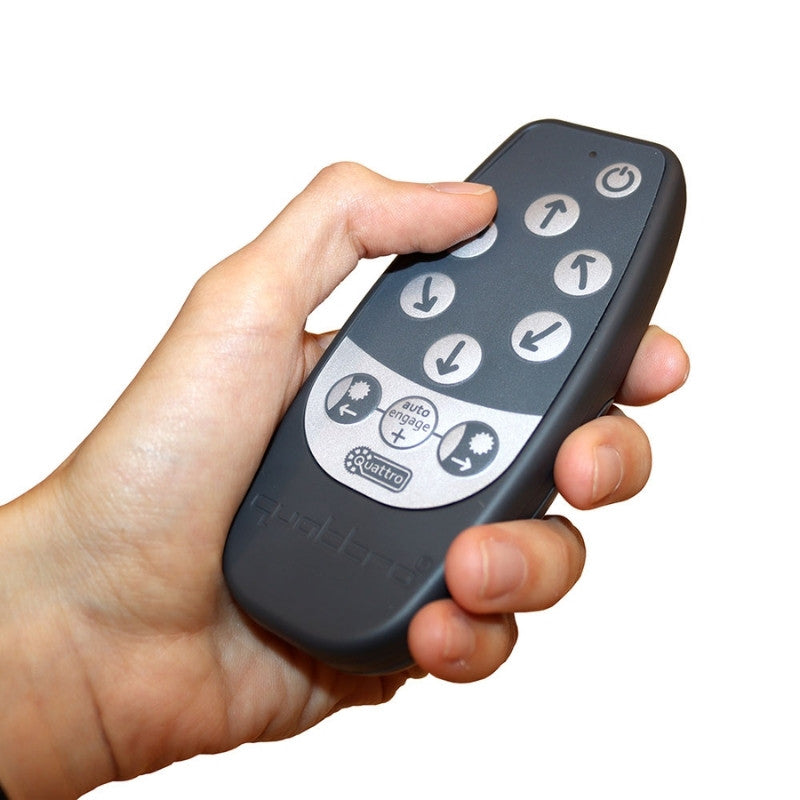

- Handheld remote control
- Fit kit with brackets, fittings and cables
What's Not Included
- Professional installation
- A 12V battery in good condition
- Heavier cable, if the run from your battery is a long one
The kit covers the mounts, the control unit and the remote. What it assumes is a healthy 12V battery, because the motors pull up to 76 amps when they're working hard.
Not Sure Which Caravan Mover Suits You?
The QuicKEY suits you if your van goes off-road, or if you want the option of leaving 37kg at home. It's the wrong pick if your van stays on sealed roads, where the standard Quattro Titanium does the same job for less money and less weight. Not sure which set your van needs, or whether it will handle your driveway? Call the store on 03 7056 6732, or send an SMS to 0476 330 590 and we'll work it out with you.
