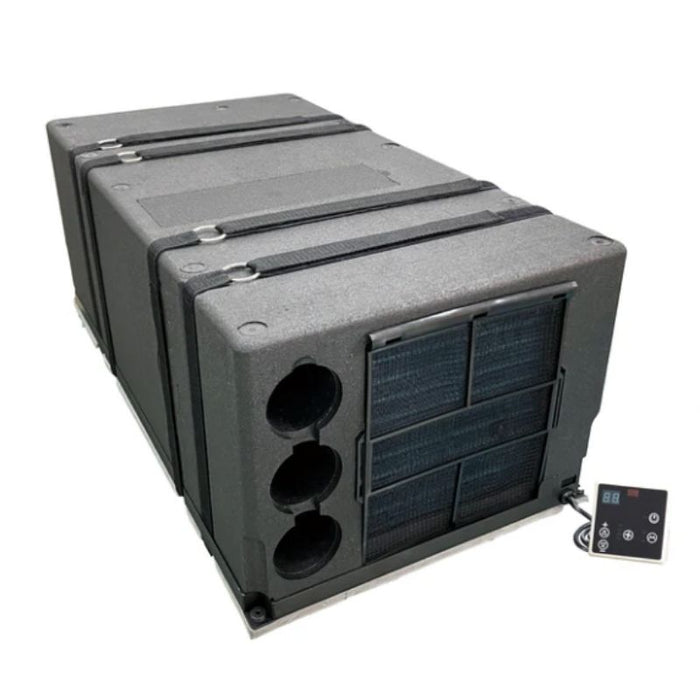

Cool-J HB9000 Plus Under Bunk Air Conditioner
SMALL AUSSIE BUSINESS
Chat direct to the owner
GEAR SPECIALISTS
Let us find your perfect model and size
30 DAY RETURNS
Change your mind? No Dramas.
The Owner's Insights on the Cool-J HB9000 Plus Under Bunk Air Conditioner
It goes under the bunk rather than on the roof, which is the whole reason people choose one. No hole cut through your ceiling, no extra height under a carport, and the weight sits low in the van instead of up top.
2.6kW of cooling and 3.2kW of heating puts it a step above most under-bunk units, and the efficiency numbers back it up: EER 3.0 and COP 3.9. That matters if you're running it off a battery bank rather than a powered site.
Cool-J rate it for vans up to 6.5 metres. Measure the space under your bunk against 734 x 398 x 296mm before you order, because that's the hole it needs, and it's 27.8kg going into your payload.
Why You'll Love the Cool-J HB9000 Plus Under Bunk Air Conditioner
- Fits under the bunk. No roof hole, no extra height, no wind drag.
- 2.6kW cooling, 3.2kW heating. Reverse cycle with a 500W element on top for cold mornings.
- EER 3.0, COP 3.9. Efficient enough to run off a decent battery bank.
- Suits vans up to 6.5 metres. Sized for a normal caravan, not a small camper.
- 350 cubic metres an hour. Enough airflow to turn your van over properly.
- WiFi control. Cool the van from your phone before you get back to it.
- Low noise and vibration. Quiet enough to sleep with it running.
- One-piece EPP frame. Insulated and simpler to fit, fewer parts to fail.
Why You Should Consider a Cool-J Under Bunk Air Conditioner
Cool-J build rooftop and under-bunk air conditioners for the Australian caravan market, and the HB9000 Plus is their bigger under-bunk unit. See the rest of the air conditioner range.
Cool-J HB9000 Plus Under Bunk Air Conditioner Specifications
| Cooling capacity | 2.6kW (9,000 BTU) |
| Heating capacity | 3.2kW, including a 500W element |
| Power consumption | 870W cooling, 1,190W heating |
| Current draw | 4.0A cooling, 5.0A heating |
| Input voltage | 220-240V, 50Hz |
| EER / COP | 3.0 / 3.9 |
| Airflow | 350 m3/h |
| Refrigerant | R410A, 540g |
| Frame | One-piece EPP |
| Dimensions | 734 x 398 x 296mm (L x W x H) |
| Weight | 27.8kg net |
| Vehicle suitability | Up to 6.5m |
| Operating temperature | -7°C to 43°C |
| Control | WiFi and remote |
Under bunk or on the roof?
A rooftop unit means cutting your ceiling, adding around 250mm of height and carrying 40-odd kilos up top, which changes how your van tows and how it behaves in a crosswind. This one lives in the storage space under your bunk. No roof hole, no height added, and the weight sits low. What you give up is that storage space. Work out which you'd rather have before you spend the money either way.
Measure before you order
It needs a space 734mm long, 398mm wide and 296mm high, plus room for the ducting and a return air path. Under-bunk storage varies a lot between vans, so get a tape measure in there rather than assuming. It's also 27.8kg, which counts against your payload like anything else you add. Ring the store on 03 7056 6732 if you want help working it out.
What EER 3.0 and COP 3.9 mean for you
Those are efficiency ratios: how much cooling or heating you get for each watt you put in. EER 3.0 means roughly three units of cooling for every unit of electricity, and COP 3.9 is the same idea for heating. Higher is better, and these are good numbers for an under-bunk unit. On a powered site it just means a smaller bill. Off-grid it means more hours of comfort from the same battery.
Running it off-grid
870W cooling and 1,190W heating is a real load on a battery system. It's manageable, especially with those efficiency numbers, but you need an inverter that holds 1,190W comfortably and enough storage to run it for the hours you actually want. Add it up honestly before you rely on it, and see the power station range if you're building that side of the setup.
Getting it installed
The one-piece EPP frame simplifies the physical fit, but it's still a 240V appliance being built into a vehicle with ducting and a return air path. Get a caravan fitter or auto electrician who does this regularly. The installation manual is on this page and covers what's required. Call the store on 03 7056 6732 and we'll go through what's involved.
What's Included
- Cool-J HB9000 Plus under bunk air conditioner
- Remote control with holder
- WiFi control
- Installation manual
What's Not Included
- Professional installation
- Ducting and vent kit for your van's layout
- 240V wiring and protection
The unit, the remote and its holder are what you get. Ducting, vents and the 240V connection are all part of the install and depend on your van's layout, so talk to your fitter about what yours needs.
Not Sure Which Under Bunk Air Conditioner Suits You?
The HB9000 Plus suits you if you've got a van up to 6.5 metres, you want reverse cycle without cutting the roof, and you can spare the under-bunk storage. It's the wrong pick if that space is already spoken for, or if your van is longer than 6.5 metres, where a bigger rooftop unit will get on top of the heat better. Not sure if it fits your van? Call the store on 03 7056 6732, or send an SMS to 0476 330 590 and we'll check the measurements with you.
Cool-J HB9000 Plus Installation Manual
Download the Cool-J HB9000 Plus Under Bunk Air Conditioner user manual for full technical details and setup instructions.
