The Owner's Insights on the Gentech Lifting Bar Kit

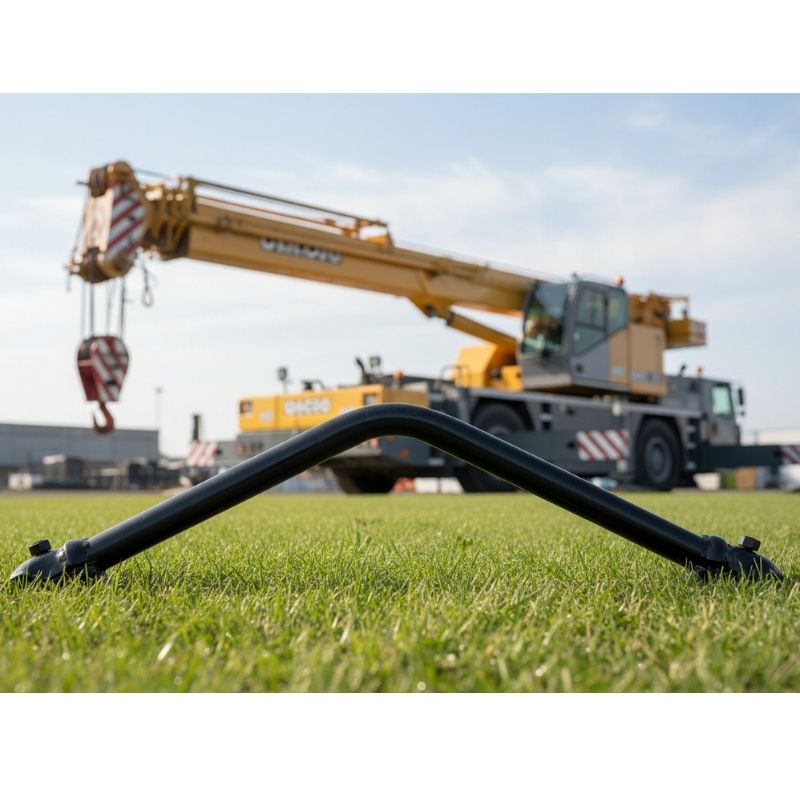

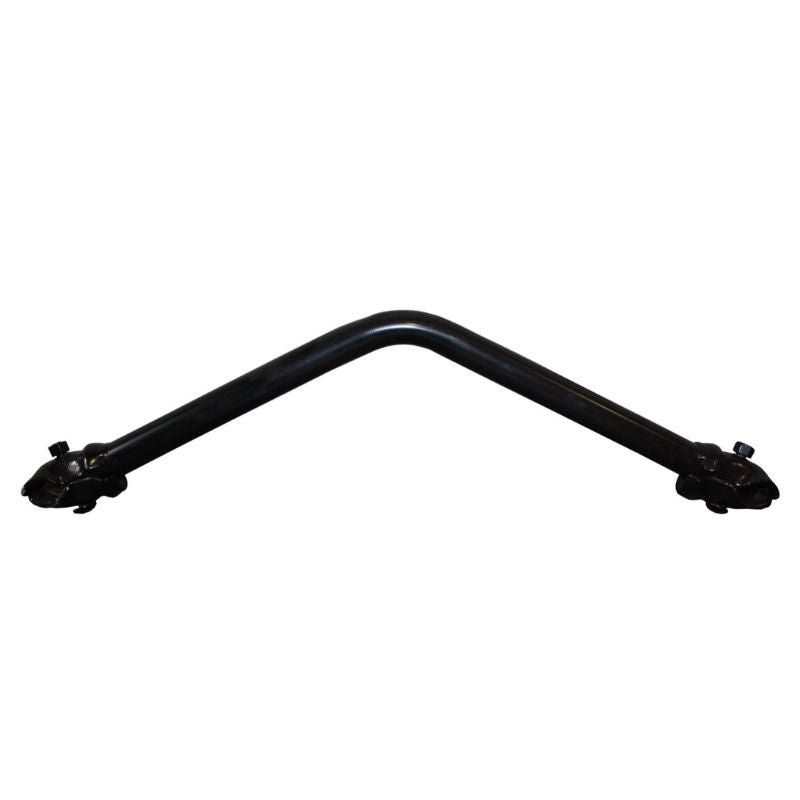

This is the bar that lets a crane pick your generator up properly. It bolts to the frame and gives you one central lifting point, so the machine comes up level instead of swinging on a couple of straps.
There are three kits, and which one you need depends on your generator. 10-GN-N1-065 for 3.4kVA sets, 10-GN-N3-065 for 5.9kVA, 7kVA and 8kVA sets, and 10-GN-32MM-065 for 8kVA RCD sets only.
If you're lifting a generator onto a truck, a roof or into a plant room, this is the part that makes it a controlled lift rather than a rigging exercise.
Why You'll Love the Gentech Lifting Bar Kit
- One central lifting point. It comes up level, not swinging.
- Bolts to the frame. The load goes where it should.
- Crane or hoist ready. A shackle point that belongs there.
- Three kits. 3.4kVA, 5.9-8kVA, or 8kVA RCD.
- Made for Gentech frames. Correct fitment, not improvised.
- Safer handling on site. No slinging around the tank.
- Quick bolt-on. Fitted once, used for the machine's life.
- Part numbers published. So you order the right one.
Why You Should Consider a Gentech Generator Accessory
Gentech build Australian-assembled generators, welder generators and site power gear. These are their factory lifting bar kits for the 3.4kVA to 8kVA frames. See the rest of the portable generator range.
Gentech Lifting Bar Kit Specifications
| Product | Gentech Lifting Bar Kit |
| Function | Provides a centre lifting point for crane or hoist connection |
| Mounting | Attaches directly to the generator frame |
| Suits | Selected Gentech generators from 3.4kVA to 8kVA |
| Kit 10-GN-N1-065 | To suit 3.4kVA sets |
| Kit 10-GN-N3-065 | To suit 5.9kVA, 7kVA and 8kVA sets |
| Kit 10-GN-32MM-065 | To suit 8kVA RCD sets only |
Which of the three kits do you need?
This is the only question that matters, and your model plate answers it. A 3.4kVA set takes 10-GN-N1-065. A 5.9kVA, 7kVA or 8kVA set takes 10-GN-N3-065. An 8kVA with an RCD takes 10-GN-32MM-065, and only that one, because the RCD frame is a different shape. Ordering by kVA alone isn't enough if you've got an RCD machine. Ring the store on 03 7056 6732 with the model number off your plate and we'll pick it for you.
Why a lifting bar beats slinging straps around the frame
Straps thrown around a generator find their own balance point, which is almost never the centre of gravity, so the machine tilts as it comes up. That tips fuel and oil, puts the load on parts that were never meant to carry it, and leaves a heavy thing swinging where people are working. A lifting bar gives you one designed point above the centre, so it lifts level and stays where you put it. That's the difference between a lift and an incident.
Where you'll actually use it
Most people buy one of these for a specific job and then never take it off. Getting a generator onto a truck tray or a ute without a ramp. Craning one onto a roof or a platform for a fitout. Dropping one into a plant room or a pit where there's no way to wheel it in. Once it's bolted on it stays there, adds almost nothing to the machine, and means the next lift is a two-minute job instead of a discussion about rigging.
Fitting it, and checking it before every lift
It bolts to designed points on the Gentech frame with basic spanners, which is a bench job rather than an install. What matters more is the habit afterwards: before every lift, check the bolts are still tight and the bar hasn't been knocked. A generator vibrates constantly when it runs, and vibration walks fasteners loose over time. Thirty seconds with a spanner before you hook up is the whole inspection.
Get your rigging right, not just your lifting point
The bar gives you a proper attachment point. It doesn't rate the rest of your setup. Use a shackle and sling suited to the weight of your machine with fuel in it, not what's lying in the ute, and keep people clear underneath while it's in the air. If your workplace has lifting procedures, this bar is there to let you follow them rather than work around them. Ring the store on 03 7056 6732 if you want the fitment confirmed first.
What's Included
- Gentech lifting bar kit
- Frame mounting hardware
What's Not Included
- A generator
- Shackles, slings or lifting gear
- A crane or hoist
Three kits cover 3.4kVA through 8kVA, including a dedicated one for 8kVA RCD sets. Ring the store on 03 7056 6732 with your model number and we'll make sure the right kit ships.
Not Sure Which Generator Accessory Suits You?
This kit suits you if you crane or hoist your Gentech generator onto trucks, roofs or into plant rooms and you want a proper lifting point rather than straps. It's the wrong pick if you only move it around on the ground, where the wheels and handles kit is what you actually want. Call the store on 03 7056 6732 with your model number, or send an SMS to 0476 330 590.
