The Owner's Insights on the Renogy 200W Solar Panel Blanket
Four kilos for 200W is the headline, and it's genuinely unusual. Most 200W folding panels you'll look at sit between 7 and 10kg. This one folds to 410 x 390 x 78mm, which is about the size of a small backpack.
The trade for that weight is that it's a blanket, not a rigid framed panel. There's no kickstand: you lay it flat, hang it off your van, or strap it to your roof rack. That's more flexible in some ways and less convenient in others.
N-type cells at up to 25% efficiency, IP65 against dust and rain, and a 2-year Renogy warranty. It works with your 12V or 24V batteries as well as a portable power station.
Why You'll Love the Renogy 200W Solar Panel Blanket
- 200W from a 4kg blanket. Half the weight of most folding panels you'll compare it to.

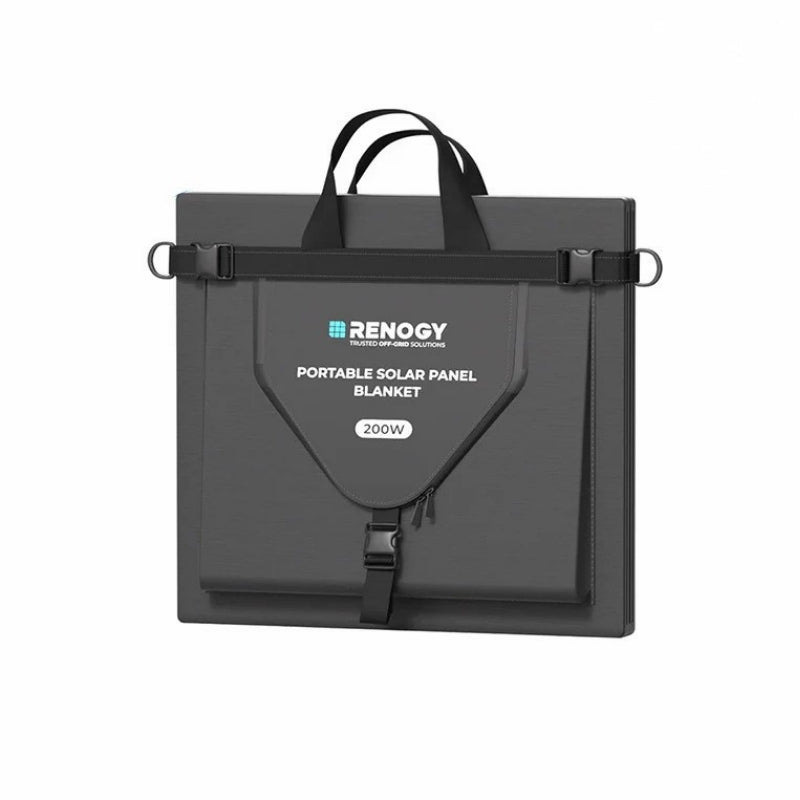

- Folds to 410 x 390 x 78mm. Packs down to backpack size, not boot size.
- N-type cells, up to 25% efficiency. Holds up better in patchy light than older cells.
- Lay flat, hang or mount. No kickstand, so you set it up however your camp works.
- IP65 rated. Dust and rain are fine, so it can stay out.
- Works on 12V and 24V. Batteries or a portable power station, either way.
- -10 to 65 degrees. Handles an Australian summer roof without complaint.
- 2-year Renogy warranty. Longer than most panels at this price.
Why You Should Consider a Renogy Portable Solar Panel
Renogy have been building solar for off-grid and vehicle setups for years, and this blanket is their light, packable 200W option. It carries a 2-year warranty. See the rest of the Renogy range.
Renogy 200W Solar Panel Blanket Specifications
| Max power (STC) | 200W |
| Open circuit voltage | 19.6V |
| Short circuit current | 13.1A |
| Optimum operating voltage | 16.8V |
| Optimum operating current | 11.9A |
| Cell type | N-type, up to 25% efficiency |
| Operating temperature | -10°C to 65°C |
| Weight | 4kg |
| Dimensions (folded) | 410 x 390 x 78mm |

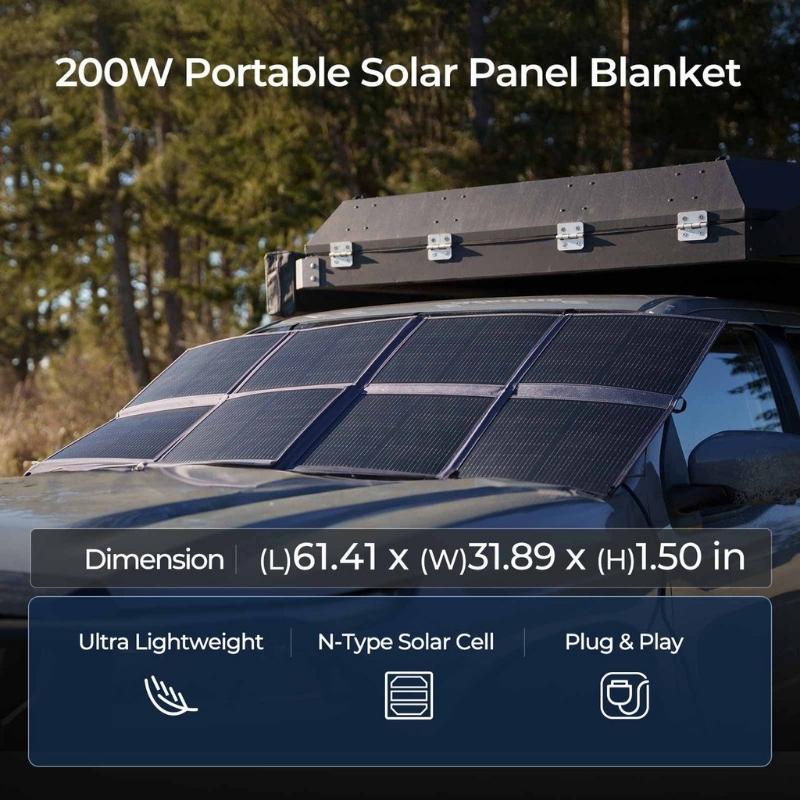

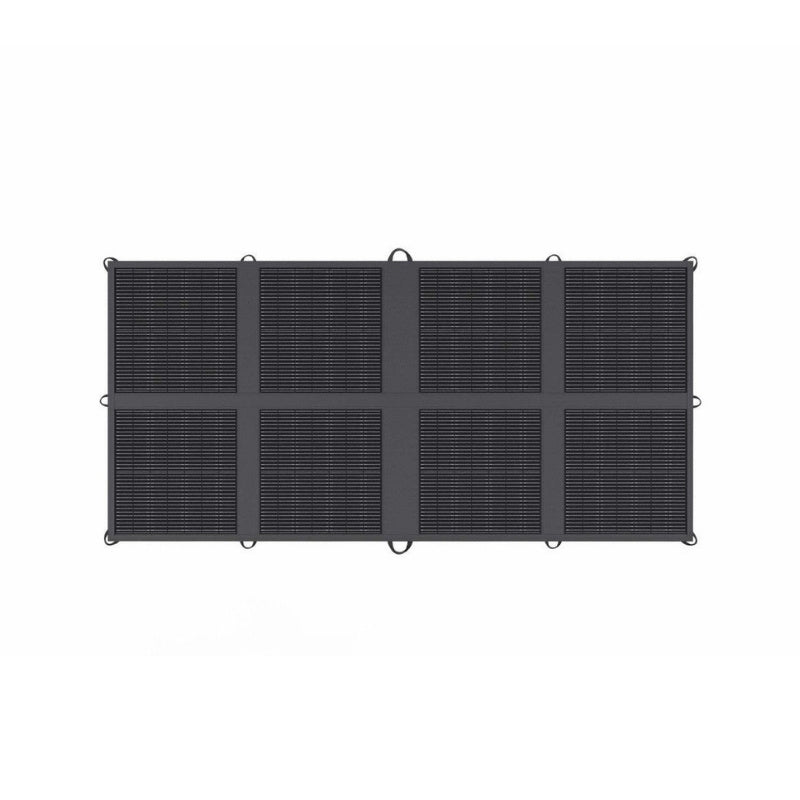

| Dimensions (unfolded) | 1,560 x 810 x 38mm |
| Water resistance | IP65 |
| Compatibility | 12V and 24V batteries, portable power stations |
| Warranty | 2 years |
| Certifications | FCC, IC, PSE, CE, ROHS, TSCA, CA65 |
Blanket or framed panel: which do you want?
A blanket has no rigid frame and no kickstand. That's why it's 4kg instead of 8 or 10, and why it folds so small. The trade is setup: with a framed panel you unfold the legs and angle it at the sun in ten seconds. With a blanket you're laying it flat, draping it over your bonnet, or hanging it off your awning with the supplied straps. If your priority is packed size and weight, the blanket wins. If it's convenience and peak output, the framed panel does.
What 200W will actually keep going
In decent sun, 200W puts back somewhere around 900 to 1,300Wh over a day, depending on how you've angled it and how hot it gets. That's enough to keep your camp fridge running indefinitely, refill a 1,000Wh power station, and cover your lights and devices on top. It's the size where you stop rationing power on a longer trip.
Getting more out of a flat blanket

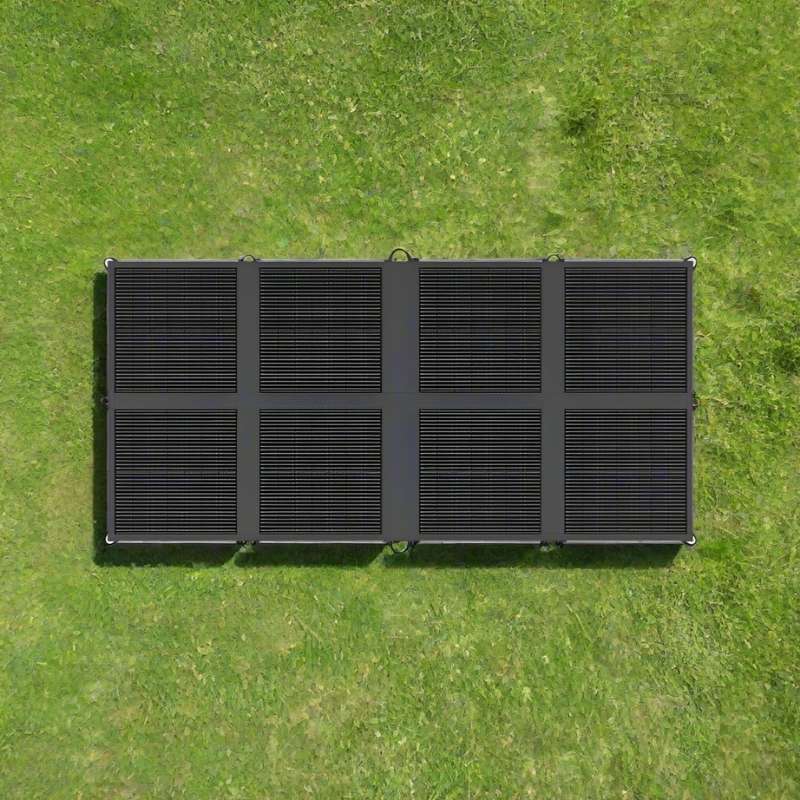

Lying flat on the grass is the worst case for any panel, because you only get full output around the middle of the day. The straps let you hang it at an angle off your van, your awning or your roof rack, and pointing it roughly at the sun is worth a noticeable amount. It's a couple of minutes of thought when you set up camp, and it's free power for the rest of your day.

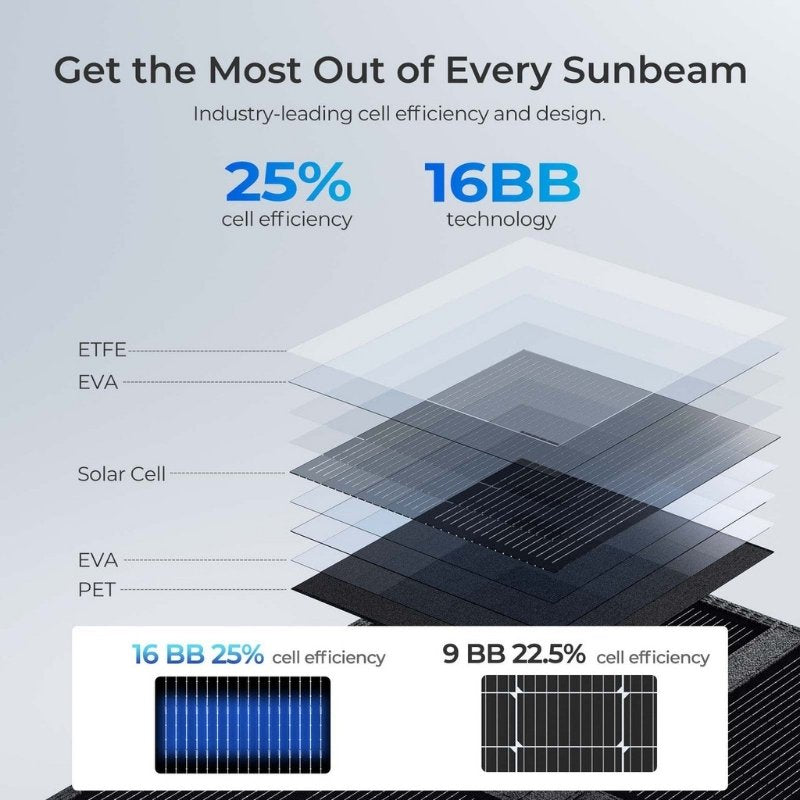

Why N-type cells matter in patchy light
N-type is a newer cell structure than the standard P-type most panels use. In practice it holds output better when your conditions aren't perfect: thin cloud, early morning, late afternoon, or a hot roof. On a bright still day at noon the difference is small. Across a real Australian day with clouds moving through, it adds up, and that's where the 25% efficiency figure earns its keep.

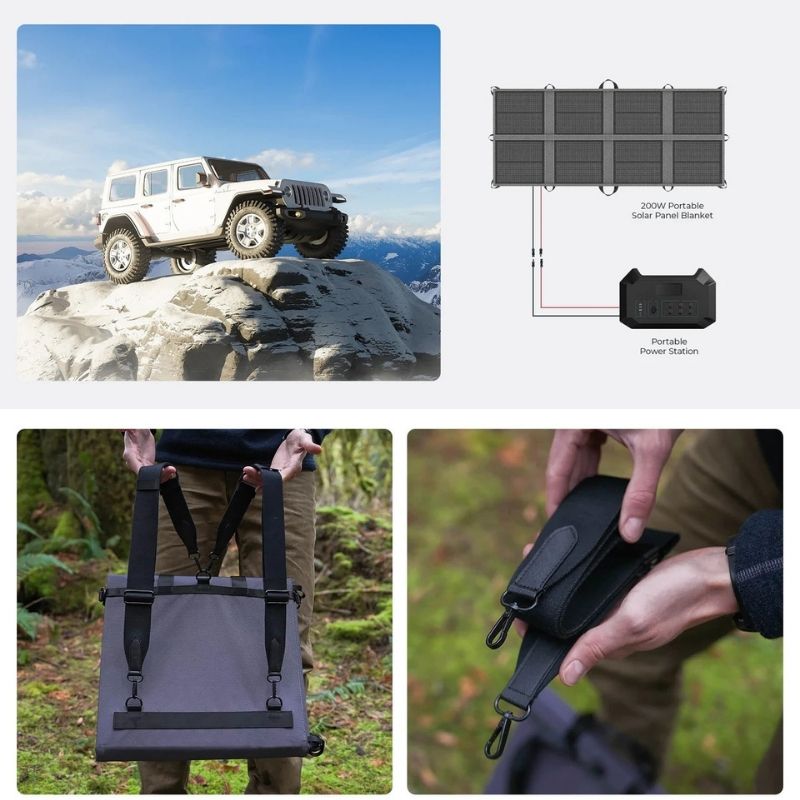

Check what your gear takes
It works with 12V and 24V batteries and with portable power stations, but the connector on your station may not match the panel's lead. XT60, DC7909, Anderson and MC4 are all common, and an adapter usually sorts it. Ring the store on 03 7056 6732 with your station or battery setup and we'll tell you what you need, or see the solar panel range for the alternatives.

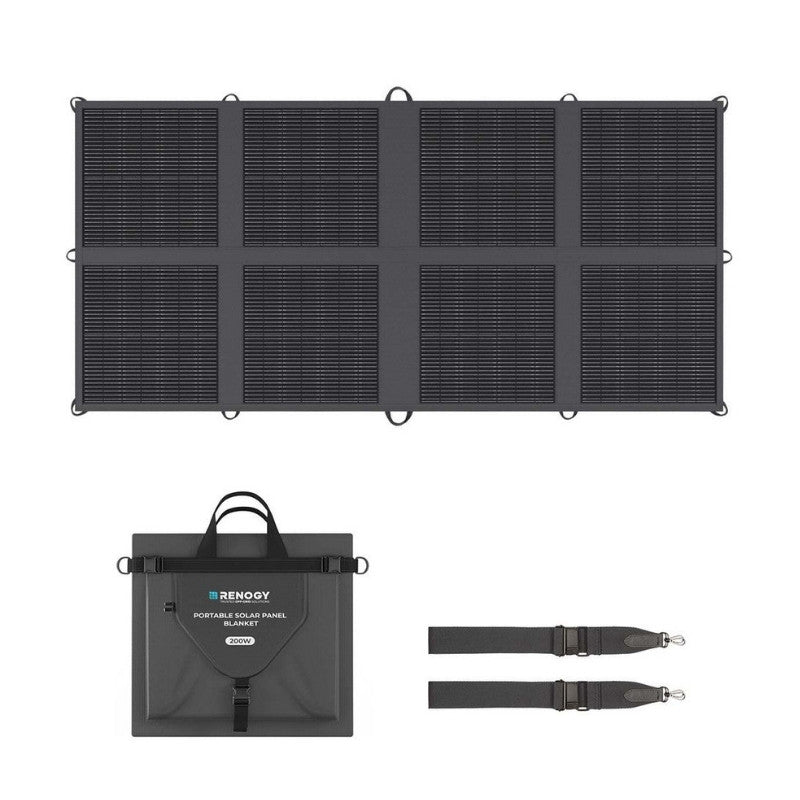

What's Included
- Renogy 200W solar panel blanket
- Connection cables
- Strap kit
- Carry case
- 2-year warranty
What's Not Included
- A power station or battery
- Adapter leads, if your station uses a different connector
- A solar extension cable
The straps, the cables and the case all come with it, so it's ready to use. Check which connector your station or charge controller takes before you order, in case you need an adapter lead.
Not Sure Which Portable Solar Panel Suits You?
The 200W blanket suits you if you want serious solar output but you're short on space or weight, and you don't mind hanging or laying it rather than standing it up. It's the wrong pick if you want a kickstand and quick angling, where a rigid folding panel is easier to live with. It carries a 2-year Renogy warranty. Not sure what size panel your setup needs? Call the store on 03 7056 6732 and we'll work it out with you.
