The Owner's Insights on the PMS1260
Eight circuits, 60A, and Bluetooth built into the box.
That last part is the bit worth knowing. The bigger PMS1280 talks over CAN only, so it needs a ONE Core before you can see anything at all. This one pairs straight to your phone. You get per-circuit current, switching and scene setup from the Renogy app without buying another thing. Add a Core later if you want the readings on a wall panel and access from town.
It's a compact unit at 221mm wide and half a kilo, so it fits where the big box won't. Six channels at 10A and two at 30A covers a camper trailer or a modest van build.
If you're running twelve circuits or a big inverter, step up to the 1280 instead.
Why You'll Love the PMS1260
- 60A across eight circuits. Six 10A channels and two 30A channels, so your lights, pump and fridge each get a protected feed and the heavy stuff gets its own.
- Bluetooth straight to your phone. Monitor and configure the box from the Renogy app without a gateway, then add a ONE Core later if you want more range.
- Automatic battery protection. Low-voltage shutdown drops your loads before the battery goes too deep, and high-voltage reconnect brings them back.
- LED indicator per circuit. A glance at the box tells you which channel is live and which one has dropped out.
- Quick-connect terminals. The levers take your cable without a crimp or a screwdriver, which turns a long wiring job into a short one.
- Two tank sensor inputs. Water levels sit alongside your power readings, so you check both in the same place.
Why You Should Consider a Renogy 12V System
Renogy has been building off-grid power gear since 2010, and the ONE range is where they've put their effort lately. Is Renogy a good brand for a caravan fitout? For 12V monitoring and control, yes. The parts talk to each other properly, the documentation is thorough, and this box carries a 5-year warranty.
PMS1260 Specifications
| Model | RSHCB-B02P-G1-AU |
| System Voltage | 12V / 24V DC |
| Maximum Input Current | 60A |
| Maximum Output Current | 60A (6 x 10A and 2 x 30A) |
| Loads to Switch | 8 DC loads |
| Self Consumption | Under 1W at 12V, under 1.2W at 24V |
| Communication | Bluetooth, CAN, RS-485 |
| Analog Voltage Range | 8V to 35V, plus or minus 0.2V |
| Current Detection Tolerance | Plus or minus 5% |
| Water Level Sensors | Resistive water level sensors x2 |
| Remote Inverter Control | Yes |
| Operating Temperature | -20C to 60C |
| Storage Temperature | -25C to 70C |
| Operating Humidity | 0% to 95% RH, no condensation |
| Operating Altitude | Under 5,000m |
| Dimensions | 221 x 118 x 42.8mm |
| Weight | 501.5g |
| Certification | RCM, CE, RoHS, R10 |
| Warranty | 5 years |
What the PMS1260 controls
Eight DC circuits, split six at 10A and two at 30A, with 60A total through the box. That covers a camper trailer or a modest van: your fridge, water pump, lights, USB points and a couple of heavier loads on the 30A channels. It also reads two water tank levels and switches an inverter remotely. It's one of the smaller options if you want a 12v distribution box that still does proper monitoring.
Does the PMS1260 need a ONE Core?
No, and that separates it from the 1280. Bluetooth is built in, so your phone talks to the box directly for monitoring, switching and scenes. What the ONE Core adds is range and a wall panel. Bluetooth only works while you are near the van, so if you want to check your batteries from the pub, you need the Core.
PMS1260 or PMS1280
The 1260 gives you eight circuits, 60A and Bluetooth. The 1280 gives you twelve circuits, 80A, four tank inputs and two temperature sensors, but no Bluetooth. Count your circuits. If you land under eight and you'd rather not buy a Core straight away, the 1260 is the smarter buy.

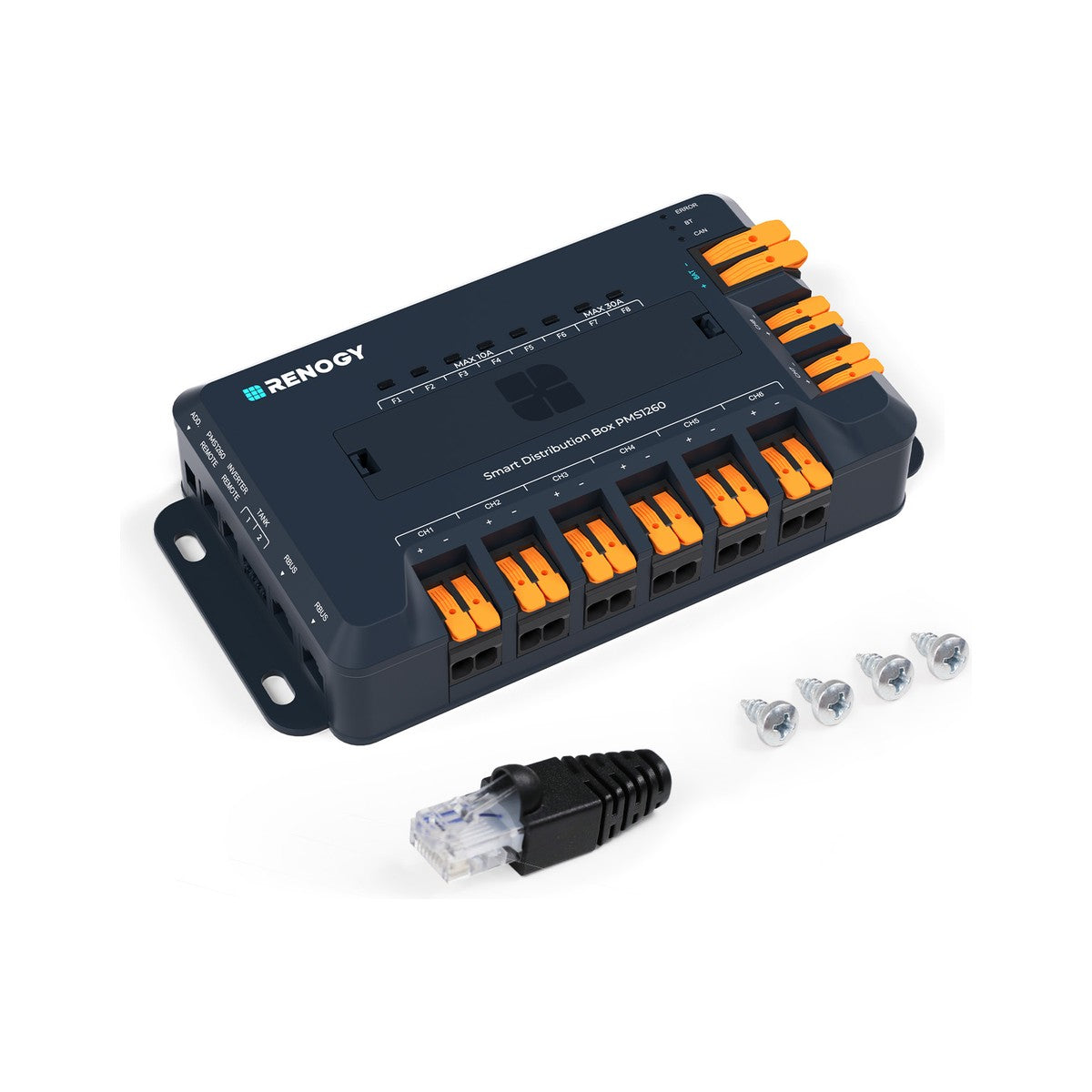

What's Included
- Smart Distribution Box PMS1260 x1
- RJ45 CAN termination resistor x1
- Mounting screws x4
- User manual x1
What's Not Included
- Renogy ONE Core, only needed for long-range access
- Water tank level sensors
- Temperature sensors
- Battery and load cable
- Spare blade fuses
Bluetooth is built in, so this one works on its own with the Renogy app. Add the Renogy ONE Core when you want a wall panel and remote access.
Not Sure Which Distribution Box Suits You?
Count your circuits first, then add two, because most fitouts grow. The honest catch is the 30A channels: there are only two of them, so a heater and an inverter will use both and leave nothing spare. If that sounds like your build, take the PMS1280. Every Renogy distribution box we sell carries a 5-year Renogy warranty, and your rights under Australian Consumer Law sit alongside it.
Renogy PMS1260 Manual
Download the PMS1260 user manual for full technical details and setup instructions.
