The Owner's Insights on the ONE Core
This is the brain of a Renogy 12V system, and it's smaller than a coaster.

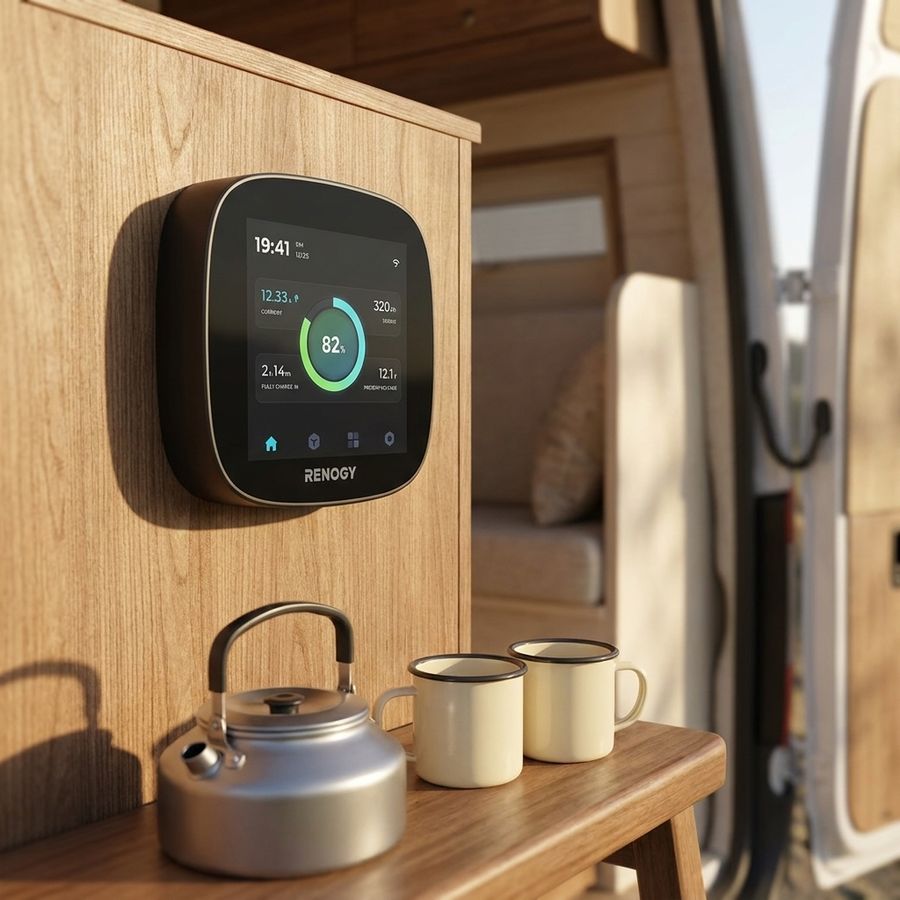

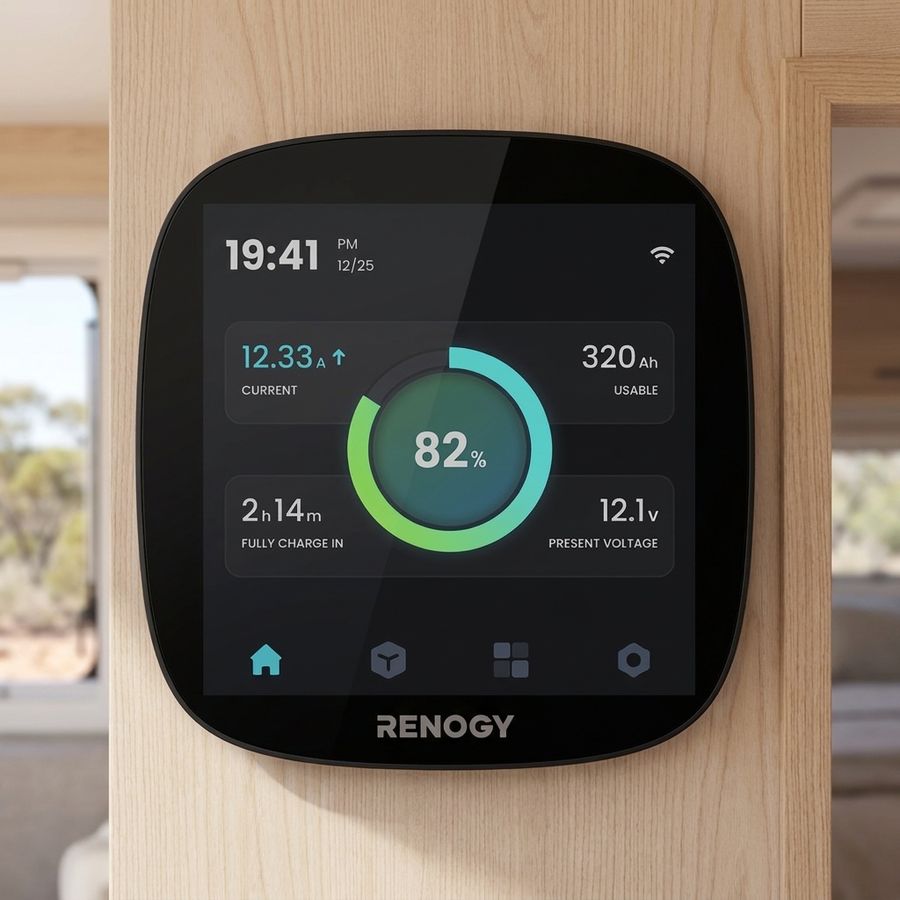

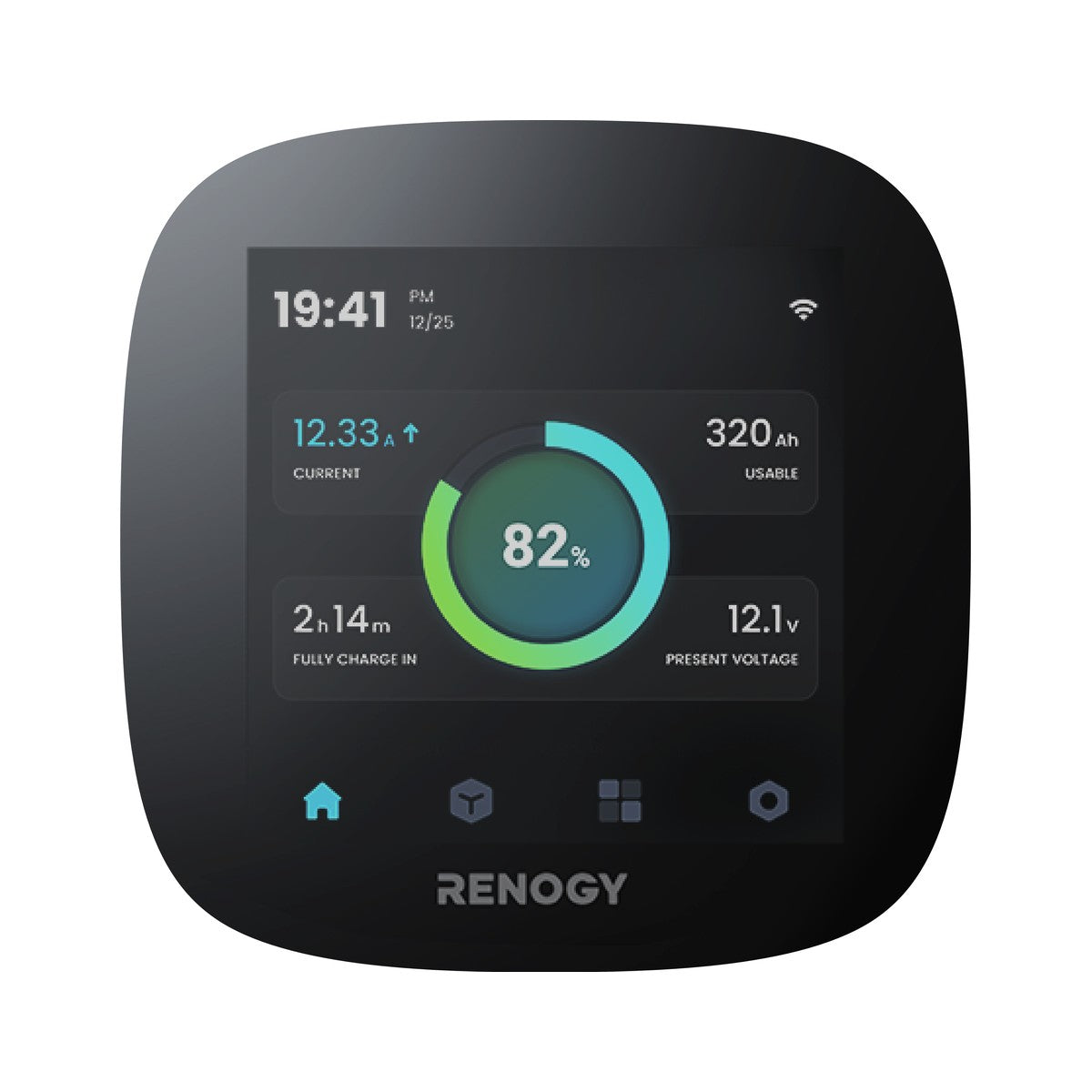

The Renogy ONE Core is a 106mm square panel that flush-mounts in your wall and pulls every Renogy device in your van onto one screen. Batteries, charge controller, inverter, distribution box. It talks Wi-Fi, Bluetooth, Zigbee, RS-485 and CAN, which is why it can sit in the middle of a mixed setup and still make sense of your gear. There's cloud access too, so you can check your batteries from work.
The screen is 4 inches. That is fine for a glance at your state of charge, and tight if you want to drive twelve circuits from it. That's what the 7 inch ONE Vision panel is for.
Fair warning: getting everything paired takes patience. Owners report the wiring is the easy part.
What Customers Say About the ONE Core
Owners rate the single-screen view highest. Having the batteries, solar and loads in one place instead of three separate apps is the thing that keeps getting mentioned.
The levelling function is a quiet favourite. Owners use it more than they expected to, and it saves walking around the van with a spirit level.
The consistent gripe is setup. Getting devices paired and firmware current takes longer than the physical install, and owners who read the manual first report a much smoother run than those who didn't.
Why You'll Love the ONE Core
- One screen for the whole system. Your batteries, charge controller, inverter and distribution box all report to the same 4 inch panel instead of five different apps.
- Five ways to talk. Wi-Fi, Bluetooth LE, Zigbee, RS-485 and CAN, so it connects to older Renogy gear as well as the current range.
- Cloud monitoring. Check your state of charge from anywhere with a signal, which matters when the van sits on the driveway between trips.
- RV levelling built in. The Core shows you which corner to wind up, so you stop guessing with a spirit level on the bench.
- Runs on next to nothing. 3.2W flat out with the screen at full brightness, and 1.5W with the screen off while it keeps logging.
- Flush mounts in a 106mm hole. It sits proud by 14mm, so it looks like part of the van rather than an afterthought stuck on the wall.
Why You Should Consider a Renogy 12V System
Renogy has been building off-grid power gear since 2010, and the ONE range is where they've put their effort lately. Is Renogy a good brand for a caravan fitout? For 12V monitoring and control, yes. The parts talk to each other properly, the documentation is thorough, and the Core carries a 2-year warranty.
ONE Core Specifications
| Product Name | Renogy ONE Core |
| Model | RSHGWSN-W02W-G3-AU |
| Operating Voltage | Power port 8V to 35V DC (typical 12V), USB Type-C 5V DC |
| Power Consumption at 12V | 3.2W at 100% brightness, 2.4W at 50%, 1.9W at 0%, 1.5W screen off with logging |
| Power Consumption at 5V | 2.9W at 100% brightness, down to 1.3W screen off |
| Communication | Wi-Fi 802.11b/g/n 2.4GHz and 5GHz, Bluetooth LE and Mesh, Zigbee 3.0, RS-485, CAN |
| Touch Screen | 4 inch, 480 x 480p |
| Installation | Flush mounting |
| Operating Temperature | -20C to 70C |
| Operating Humidity | 0% to 95% RH |
| Operating Altitude | Under 5,000m |
| Dimensions | 106 x 106 x 26.6mm |
| Weight | 128g |
| Certifications | CE, FCC, RoHS, TSCA, BQB, RCM, IC-ID |
| Warranty | 2 years |
What the ONE Core does
It's a gateway and a display. Every compatible Renogy device on your van reports to it, so you get state of charge, current in and out, solar yield and load draw on one screen. It also switches your loads when it is paired with a Smart Distribution Box, runs scenes, sends alarms, and pushes the lot to the cloud so you can look from your phone.
Renogy ONE Core manual and setup
The full user manual is linked below. Physical install is straightforward: a 106mm hole, four screws and the 5m power cable in your box. The part that takes time is the pairing, and owners consistently say the same thing. Read the manual before you start, do one device at a time, and check firmware early.

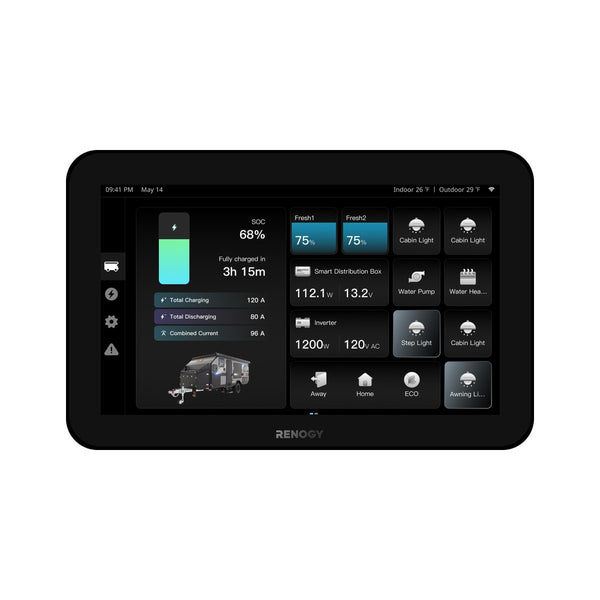

ONE Core or ONE Vision
The Core is the gateway, so you need it either way. The ONE Vision is a 7 inch panel that hangs off the Core when you want a bigger screen and room to drive a dozen circuits by hand. Start with the Core. Add the Vision if the 4 inch screen turns out to be too small for how you use the van.
What's Included
- Renogy ONE Core x1
- Quick guide x1
- Power cable, 5m x1
- M3.5 x 14mm mounting screws x4, plus one spare
What's Not Included

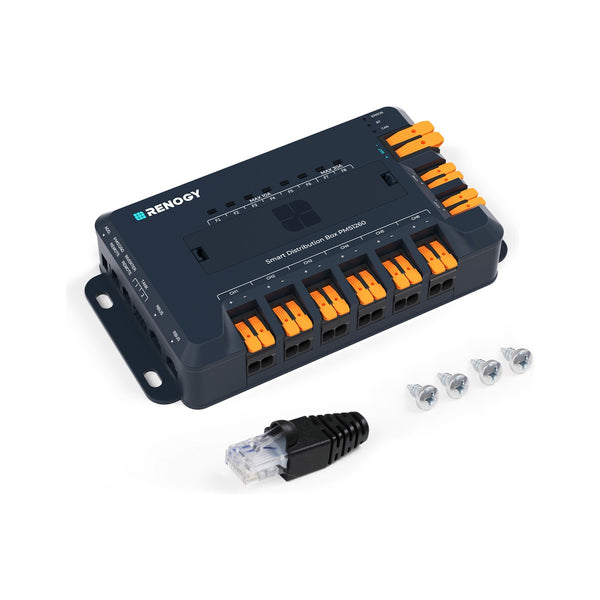

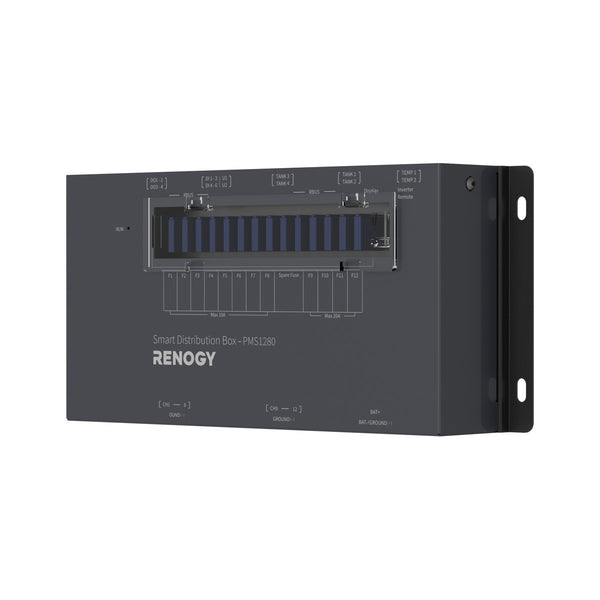

- Smart Distribution Box for circuit control
- ONE Vision 7 inch panel
- Battery shunt
- RS-485 and CAN communication cables
Not Sure How to Put a Renogy System Together?
Start here, because nothing else in your ONE system works without it. Add a Smart Distribution Box when you want circuit control, then a ONE Vision panel if you want a bigger screen. The honest catch is the setup: the hardware goes in easily but pairing takes an afternoon and a careful read of the manual. The Core carries a 2-year Renogy warranty, and your rights under Australian Consumer Law sit alongside it.
Renogy ONE Core Manual
Download the Renogy ONE Core user manual for full technical details and setup instructions.
