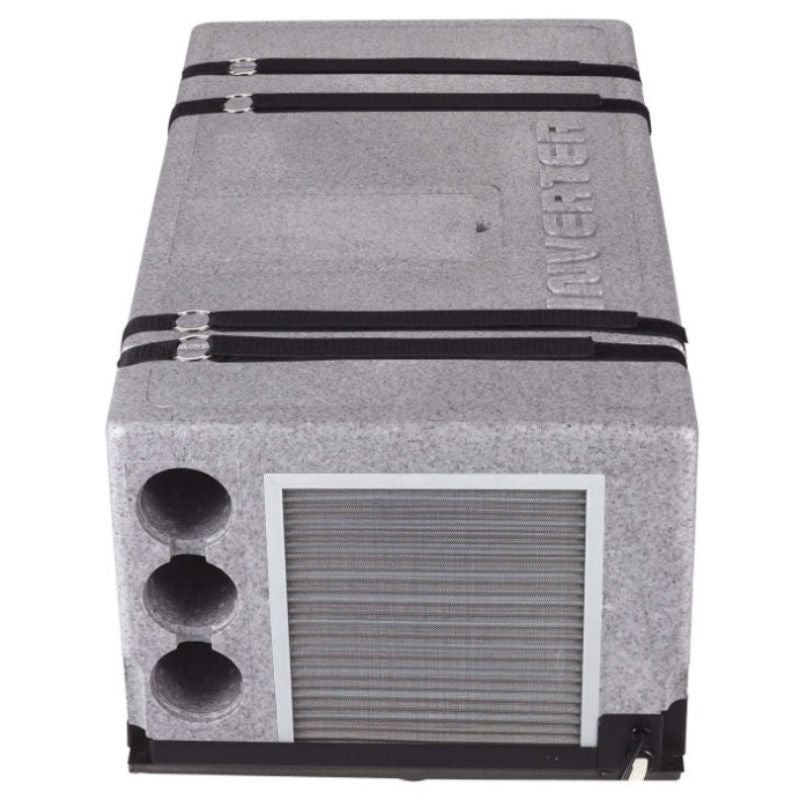

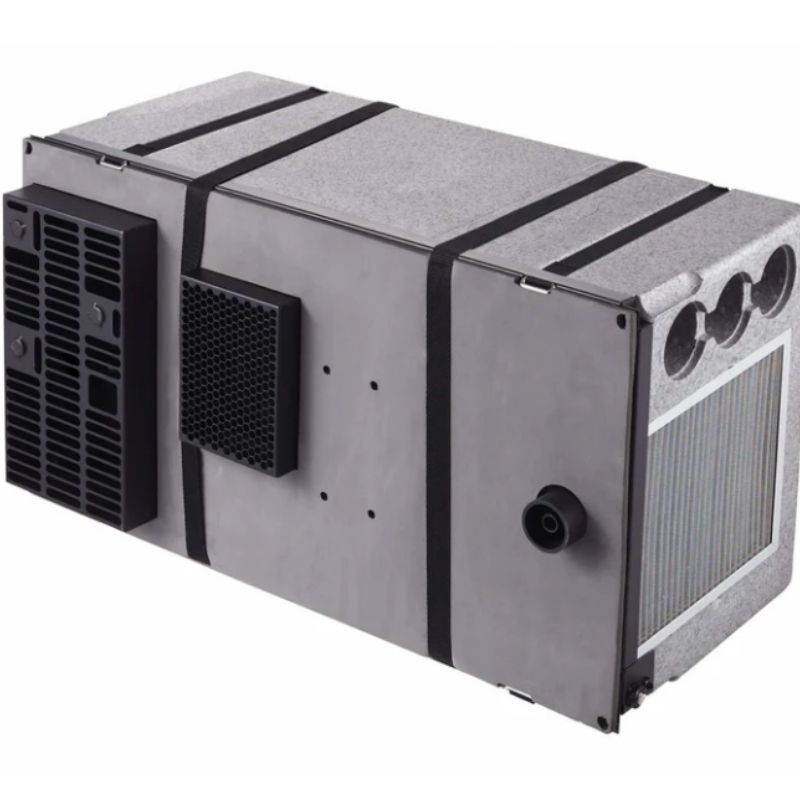

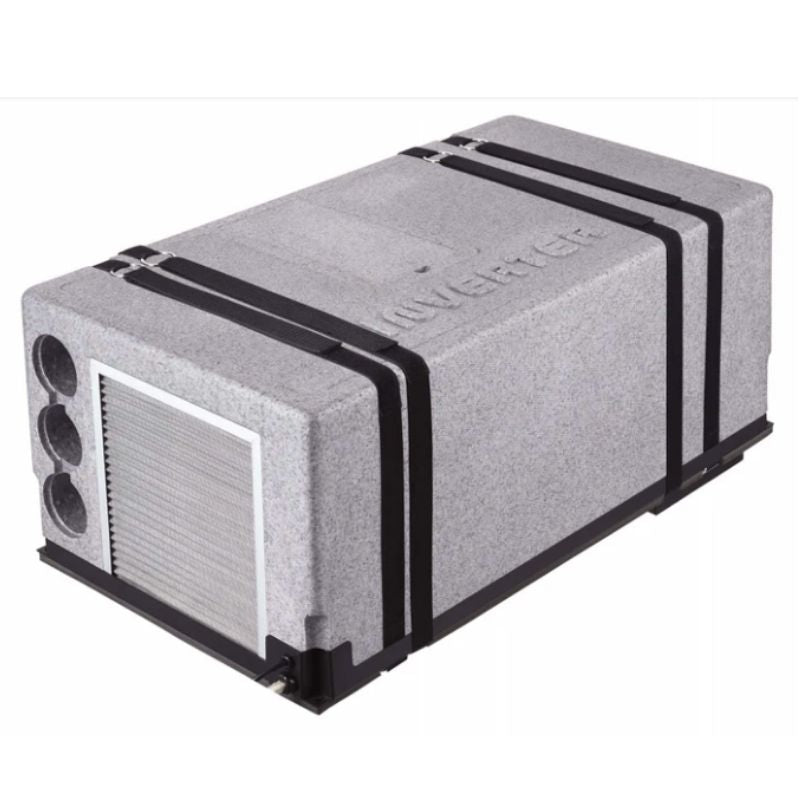

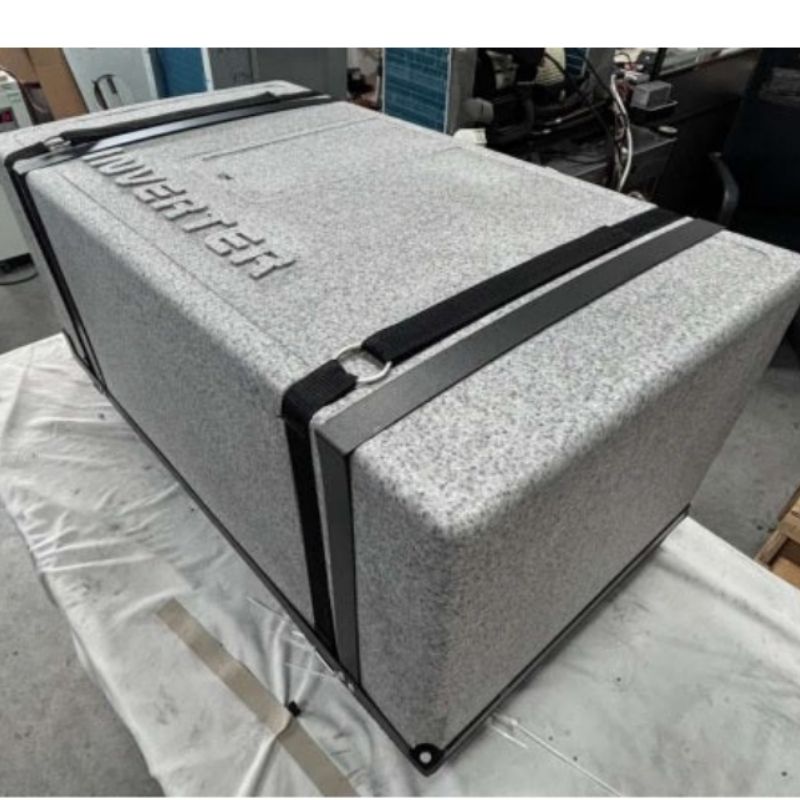

Cool-J iHider220 Inverter Under Bunk Air Conditioner
5.0 · 1 review
SMALL AUSSIE BUSINESS
Chat direct to the owner
GEAR SPECIALISTS
Let us find your perfect model and size
30 DAY RETURNS
Change your mind? No Dramas.
The Owner's Insights on the Cool-J iHider220 Inverter Under Bunk Air Conditioner
The iHider220 goes under a bunk or in a locker, which is why it's called a hider. Nothing on the roof means you keep your clearance, your solar space and about 26kg of weight down low where it should be.
It's an inverter unit, and that matters more than the badge. An inverter compressor ramps up and down instead of banging on and off, so it holds your temperature steadier, draws less power on average, and it's quieter through the night. You get 10,000 BTU of cooling and 11,500 BTU of heating, so it works in February and in July.
Two things to check before you order. It's rated for vans up to about 6.5 to 7 metres, so measure yours. And it runs on 220 to 240 volts drawing around 900W cooling or up to 1,400W heating, which means a powered site, a generator, or a station with the surge to start it.
Why You'll Love the Cool-J iHider220 Inverter Under Bunk Air Conditioner
- 10,000 BTU cooling, 11,500 BTU heating. One unit covers your summer and your winter.
- Inverter compressor. Holds your temperature steady instead of cycling on and off all night.
- Hides under a bunk. Nothing on the roof, so you keep your clearance and your solar space.
- WiFi control from your phone. Set the temperature before you get back to the van.
- EER 3.0 and COP 3.4. It gets more cooling out of every watt, which matters off a generator.
- One-piece EPP frame. It arrives ready to install rather than as a box of parts.
Why You Should Consider a Cool-J Under Bunk Air Conditioner
Cool-J build climate gear for Australian caravans and RVs, and the iHider range is their answer for people who don't want a box on the roof. See the rest of the Cool-J range.
Cool-J iHider220 Specifications
| Type | Reverse cycle inverter, under bunk |
| Cooling capacity | 10,000 BTU (2,930W) |
| Heating capacity | 11,500 BTU (about 2,780W heat pump plus 600W element) |
| Power supply | 220-240V, 50Hz |
| Power consumption (cooling) | 872-1,002W |
| Power consumption (heating) | 1,300-1,405W |
| Current draw (cooling) | 3.8-4.4A |
| Current draw (heating) | 3.0A + 2.6A to 3.54A + 2.6A |
| EER / COP | 3.0 / 3.4 |
| Refrigerant | R32 (410g) |
| Air flow (high speed) | 350 m³/h |
| Operating range | -7 to +43°C |
| Suits vehicle length | Up to 6.5 to 7m |
| Dimensions (L x W x H) | 734 x 405 x 296mm |
| Net weight | 26kg |
| Control | WiFi app and onboard |
| Model | iHider220 |
Why an inverter air conditioner is worth the money
A conventional caravan air conditioner runs the compressor flat out until it hits the set temperature, then shuts off, then bangs back on again. You feel that as temperature swings and you hear it every time it cycles. An inverter varies the compressor speed instead, so it settles into a steady low hum once the van is cool. You get more even temperature, less noise overnight, and lower average draw, which is what makes it workable off a generator.
Will it fit and suit your van?
Cool-J rate it for vans up to about 6.5 to 7 metres. The unit itself is 734 x 405 x 296mm and weighs 26kg, so you need a locker or under-bunk space that takes those dimensions plus the ducting runs. Measure the space before you order. If your van is longer than 7 metres you'll be underdone on a hot day and you want to look at a bigger unit.
Can you run it off a power station or generator?
It draws 872 to 1,002W cooling and up to 1,405W heating on 240V, which is inside what a mid-sized power station can supply on paper. The catch is always the compressor starting up, which pulls several times the running draw for a moment. You want real surge headroom, not a station running at its limit. A 4kW-plus inverter generator handles it without thinking. Ring the store on 03 7056 6732 with your setup and we'll tell you straight.
Getting it installed
It ships as a one-piece EPP frame ready to install, which makes it a quicker job than most, but it's still ducting, a condensate drain and a 240V connection. Unless you've done it before, get a caravan technician to fit it. A tidy install is the difference between an air conditioner you forget about and one that drips into the locker. Ring the store and we'll point you at someone in your area.
Roof unit or under bunk?
A roof unit is simpler to fit and doesn't cost you locker space, but it adds height, adds drag, and puts 30-odd kilos above your head. An under-bunk unit like this one keeps the weight low, keeps your roof clear for solar, and doesn't change your garage clearance. The trade-off is the install and the storage space. If you'd rather go on the roof, look at a roof-top unit instead.
What's Included
- Cool-J iHider220 inverter under bunk air conditioner
- One-piece EPP frame, ready to install
- Installation manual
What's Not Included
- Professional installation

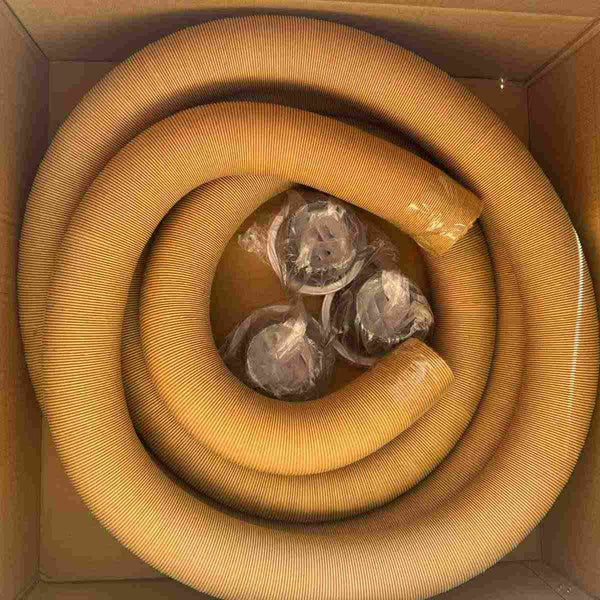

- Ducting runs and vents for your layout
- A 240V power source: mains, generator or power station
It arrives as a ready-to-install unit rather than a kit of parts. What you still need is an installer and a 240V supply, whether that's a powered site, a caravan generator or a power station with enough surge to start the compressor.
Not Sure Which Under Bunk Air Conditioner Suits You?
The iHider220 suits you if you want reverse cycle comfort in a van up to about 7 metres and you'd rather give up locker space than roof space. It's the wrong pick if that under-bunk space is already full, or if your van is longer than 7 metres. If you're comparing under-bunk units, the Truma Saphir is the other one worth a look. Not sure it will fit, or whether your power setup will run it? Call the store on 03 7056 6732, or send an SMS to 0476 330 590 and we'll work through it with you.
Cool-J iHider220 Installation Manual
Download the Cool-J iHider220 installation manual for full technical details and setup instructions.
