Renogy MC4 Splitters
SMALL AUSSIE BUSINESS
Chat direct to the owner
GEAR SPECIALISTS
Let us find your perfect model and size
30 DAY RETURNS
Change your mind? No Dramas.

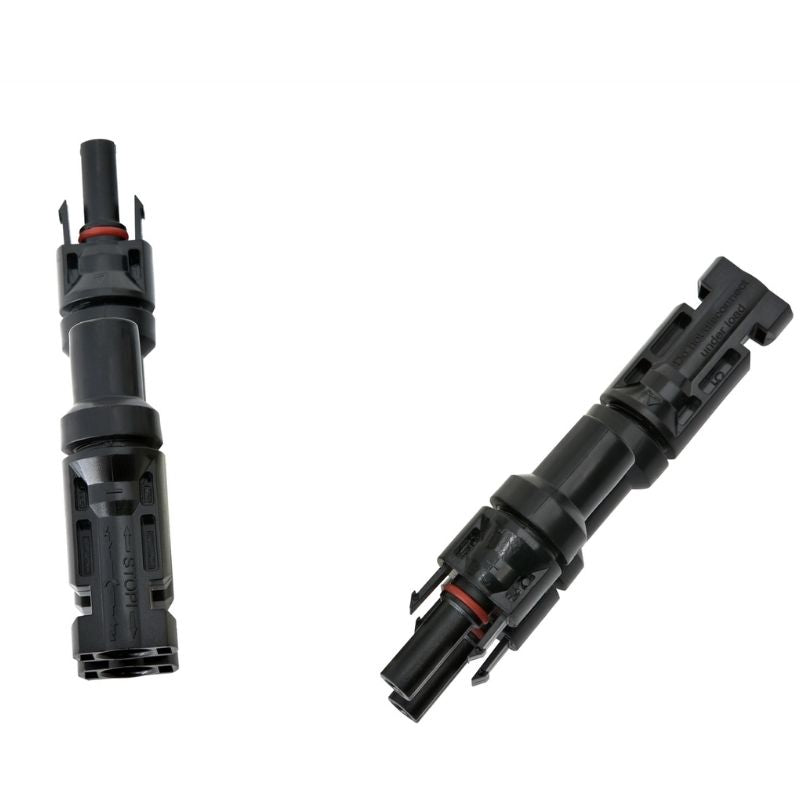

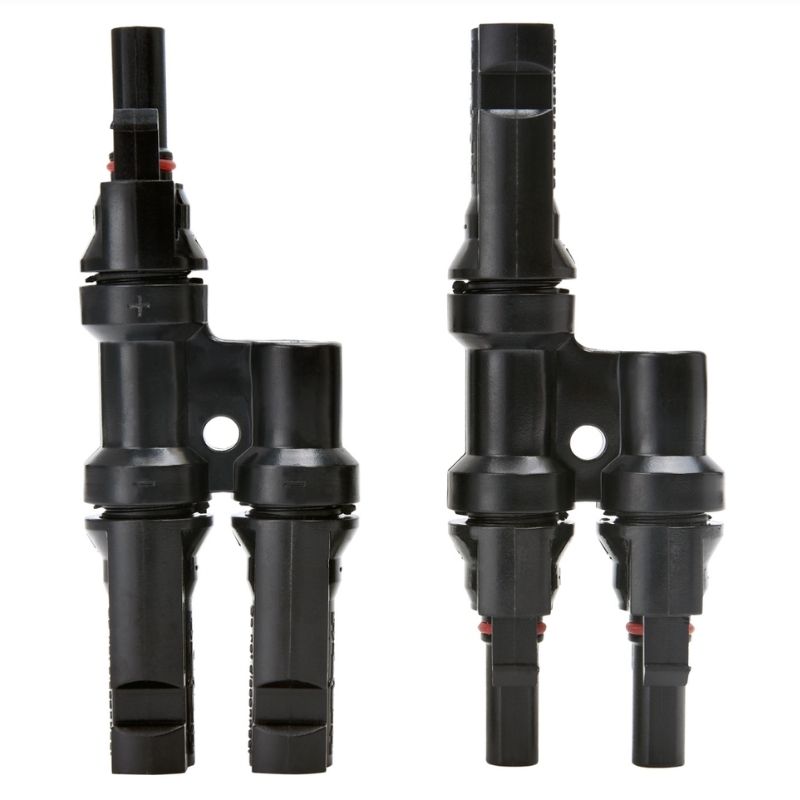

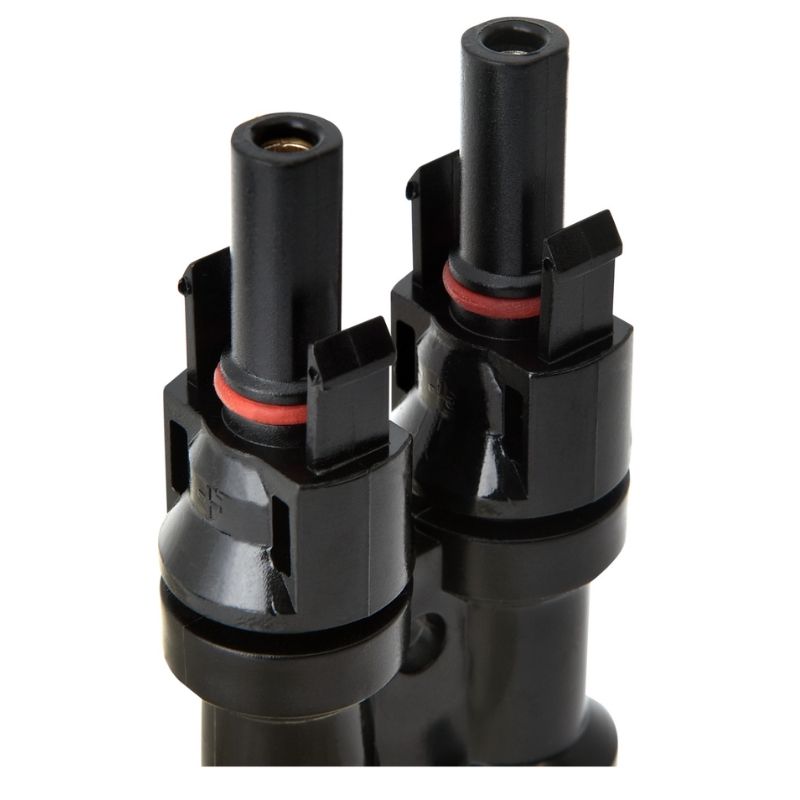

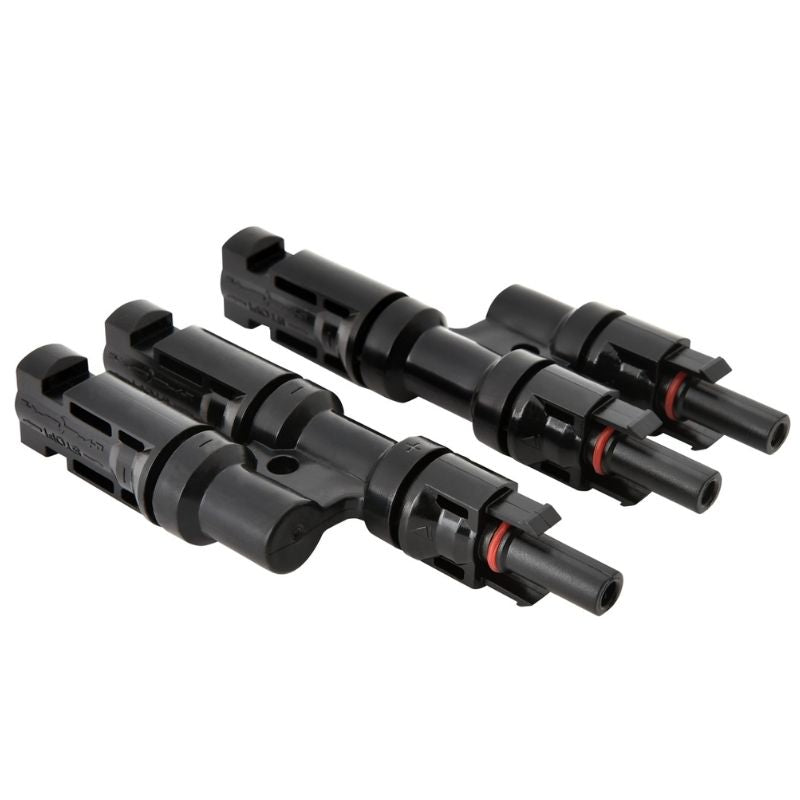

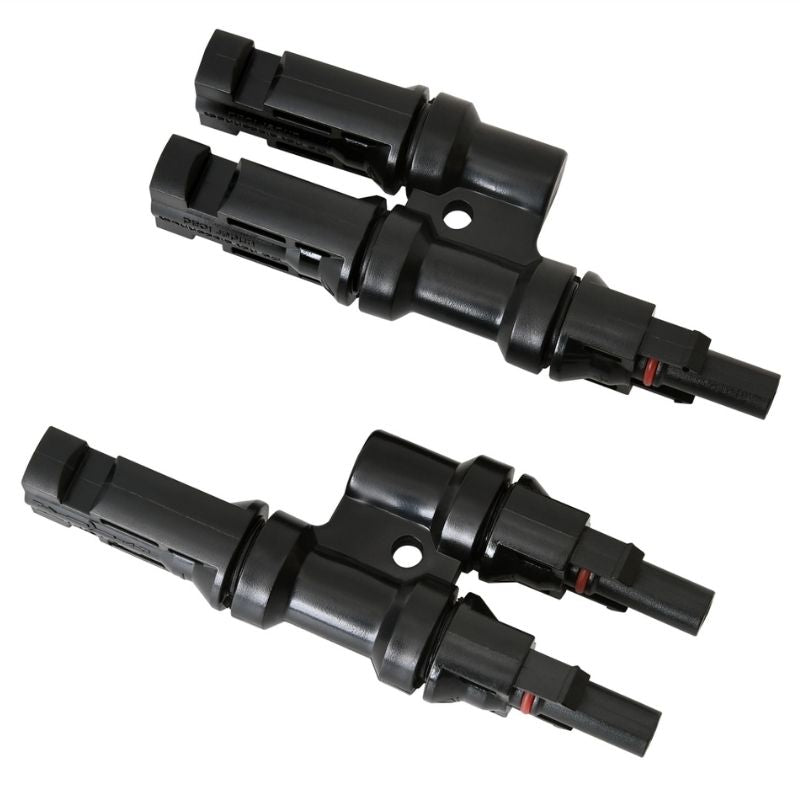

The Owner's Insights on the Renogy MC4 Splitters
These are what you use to run two solar panels into one input. They're MC4, which is the industry standard fitting, so they work with panels and controllers from just about any brand.
They join your panels in parallel, which keeps the voltage the same as a single panel and adds the current together. That's the safe way to add panels without pushing past your controller's voltage limit.
They click together and lock, and they're built to sit out in the weather rather than under a bench.
Why You'll Love the Renogy MC4 Splitters
- Standard MC4 fittings. Works across brands, not just Renogy.
- Parallel connection. Voltage stays put, current adds up.
- IP67 rated, mated. Sealed against dust and a downpour.
- Click-lock connectors. They stay together in the wind.
- Silver-plated copper contacts. Solid conduction, less resistance.
- No tools needed. Plug in and you're done.
- 1-year warranty. Backed against material defects.
- Cheap way to expand. On panels you already own.
Why You Should Consider a Renogy Solar Accessory
Renogy build solar panels, charge controllers and off-grid power gear, and these are their MC4 splitters for parallel panel connections. See the rest of the portable solar panel range.
Renogy MC4 Splitters Specifications
| Product | Renogy MC4 Splitters |
| Connector type | MC4 |
| Pack contents | 1 pair (one male MMF, one female FFM) |
| Function | Connects solar panels in parallel |
| Withstanding voltage | 1000V DC (TUV), 600V (UL) |
| Contact resistance | 1mΩ |
| Protection degree | IP67, mated |
| Operating temperature | -40°C to +90°C |
| Contact material | Copper, silver plated |
| Insulation material | PC/PA |
| Flame class | UL94-V0 or UL94-5VA |
| Warranty | 1 year, material defects |
| Installation | Plug-and-play, no tools required |
| Compatibility | Standard MC4 panels, controllers and leads |
Parallel or series, and why it matters to you
Wire two panels in series and the voltage doubles while the current stays the same. Wire them in parallel and the voltage stays put while the current doubles. Both give you the same watts, and only one of them is safe for your gear: every charge controller and power station has a maximum input voltage, and series wiring is how people accidentally sail past it. Parallel keeps the voltage where a single panel had it, which is why splitters exist.
MC4 is the reason these work with what you own
MC4 is the standard connector on solar panels, which means these aren't locked to Renogy gear. If your panels have MC4 ends, and almost all of them do, these splitters join them. That's worth knowing if you're running a mixed setup, because you don't need matching brands to make it work. What does matter is that both panels are similar in output, since in parallel a weaker panel drags the pair down a little.

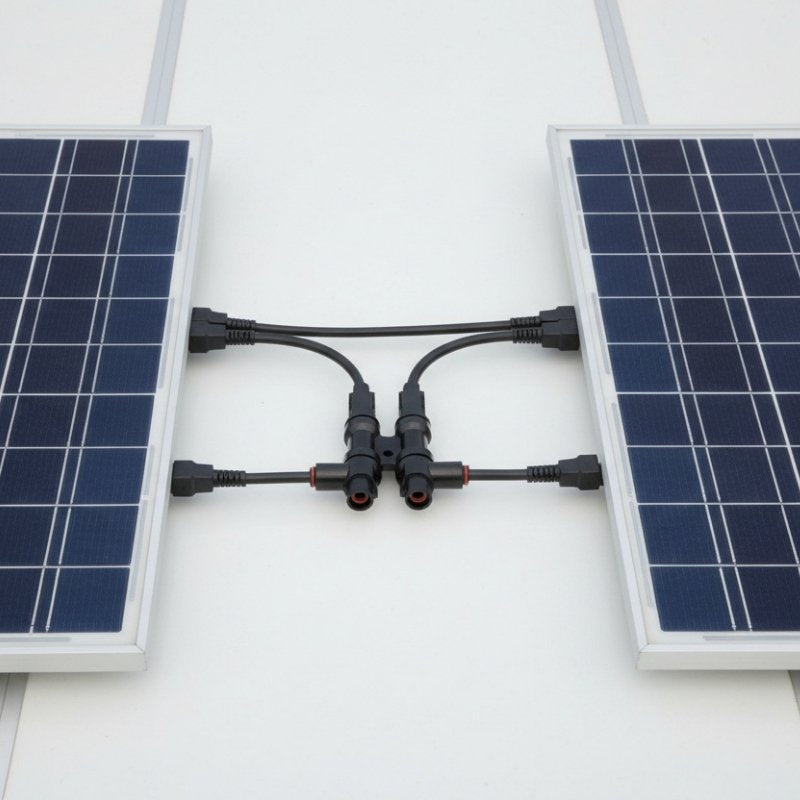

Two panels, one input, no mess
The alternative to a splitter is a pile of adapters and joins, and every extra connection is another place to lose a bit of power and another thing to work loose. One splitter per side gives you a single clean join between your panels and your lead. It also makes the setup something you can pack and unpack without thinking, which is the real test of camping gear. Fewer connections means fewer problems on the third day.
Keep the connectors clean and they last
The failure point on solar cabling is always the connector rather than the wire. Grit inside an MC4 makes a poor contact, a poor contact heats up under load, and a hot connector eventually melts. Blow the ends out or wipe them before you plug in, push them together until they click properly home, and keep them out of the mud. It takes thirty seconds and it's the whole maintenance routine.
What size setup are these right for?
They're for joining panels in parallel on a portable or small fixed setup, which is most camping and caravan solar. If you're wiring a permanent roof array or running long cable runs at high current, get the sizing checked properly rather than assuming, because current adds up fast in parallel. Ring the store on 03 7056 6732 with how many panels and what wattage and we'll tell you whether these cover it.
What's Included
- 1 pair of Renogy MC4 splitters (one male MMF, one female FFM)
What's Not Included
- Solar panels
- A charge controller or power station
- Extension cables
They're standard MC4, so they suit most panels and controllers rather than just Renogy gear. Ring the store on 03 7056 6732 with how many panels you're joining if you want it checked first.
Not Sure Which Solar Accessory Suits You?
These splitters suit you if you're adding a second panel to a portable or caravan setup and want a clean parallel join that keeps your voltage where it was. They're the wrong pick if your panels use XT60 or Anderson fittings rather than MC4, or if you're wiring a large permanent array where the current needs sizing properly. Call the store on 03 7056 6732, or send an SMS to 0476 330 590.
